With a Big Tex gooseneck, most of the weight of the trailer is placed over the truck's rear axle instead of on its frame, minimizing sway and maximizing space. Big Tex offers the most innovative flatbed gooseneck trailers available at an incredible value. With the deepest inventory across the U.S., Big Tex trailers are inspected by trained mechanics to ensure that every weld and component is in perfect shape for years of reliable service. Feel confident that Big Tex has the right flatbed gooseneck trailer for your job.
HIGHLIGHTS:
• Gooseneck
• Heavy Duty
• Open Siding
• Tandem Axle

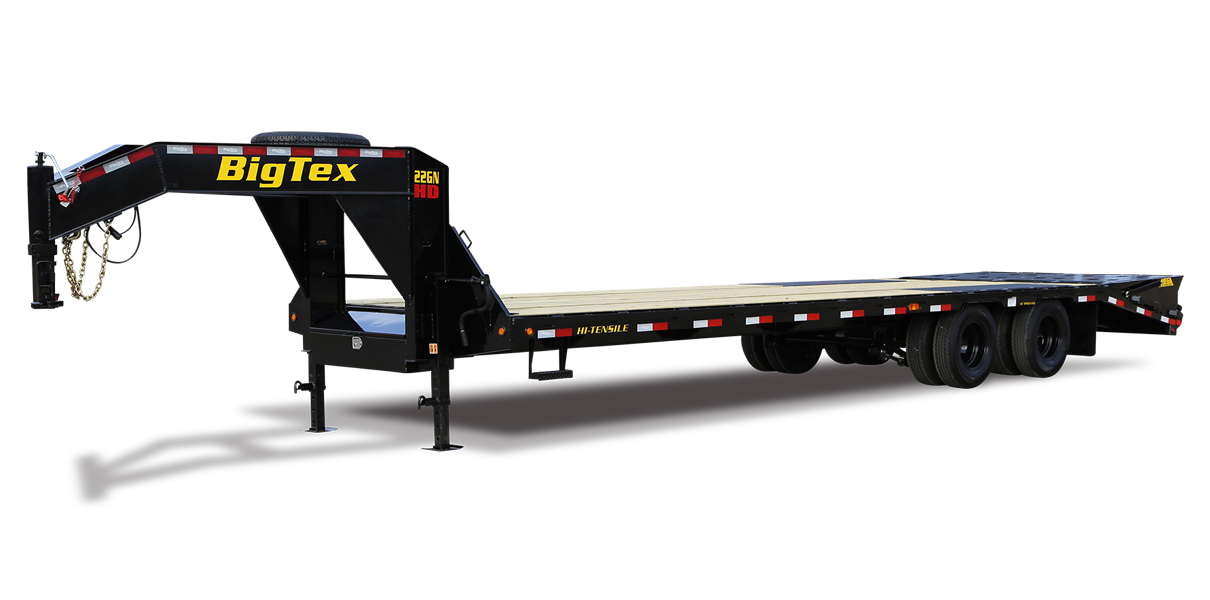

The 22GN from Big Tex is our durable gooseneck trailer equipped with 10K heavy-duty axles with premium adjustable suspension. This unit features a low-profile pierced-beam frame, LED lights, adjustable dual jacks, a chain box and a crank-style adjustable coupler
ADDITIONAL FEATURES:
• 2-5/16" Ball Adjustable Pipe Coupler
• Dual 12,000 lb Drop Leg Jacks (Bolted on) w/Greaseable Handle
• 102" Overall Width
• Low Profile Bed, Pierced- Beam Frame
• Lockable Toolbox Between GN Uprights
• (2) Side Bed Steps & Handles
• 3/8" Heavy Duty Rub Rail
• Stake Pockets Along Sides, 24" On Center
• 1-1/4" Pipe Chain Spools Between Stake Pockets
• Quick Lubricating Hubs
• Premium 8,000 lb Oil Bath Axles
• Forward Self Adjusting Electric Brakes on All Hubs
• Cambered Axles
• Grommet Mount Sealed Lighting
• L.E.D. Lighting Package
• Sealed, Modular Wiring Harness
• 5 Dovetail w/ 5 Double Hinged Spring Assist Flip-Over Ramps
• Complete Break-A-Way System w/Charger
• Spare Tire Mount (Top of Neck)
• Radial Tires
• Zip Breakaway Cable
Pricing and specifications are subject to change without notice. See dealer for complete details.
