2023 Big Tex Trailers Heavy Duty Tandem Axle Pipe Top Utility 14PI - 16 ft

WHEN THE JOB IS ON THE LINE.

WHEN THE JOB IS ON THE LINE.

Big Tex offers affordable and versatile utility trailer solutions for all your jobs. Choose from lightweight single-axle trailers to heavy-duty, dual-axle haulers and many sizes in between. With a wide range of deck sizes, payloads and rampgates, Big Tex is sure to have the right utility trailer for the job. Plus, with E-Z Lube hubs, Nev-R-Adjust electric brakes and radial tires, you can count on Big Tex utility trailers for a reliable and comfortable tow.

HIGHLIGHTS:
• Piped Siding
• Tandem Axle
• Wall Siding

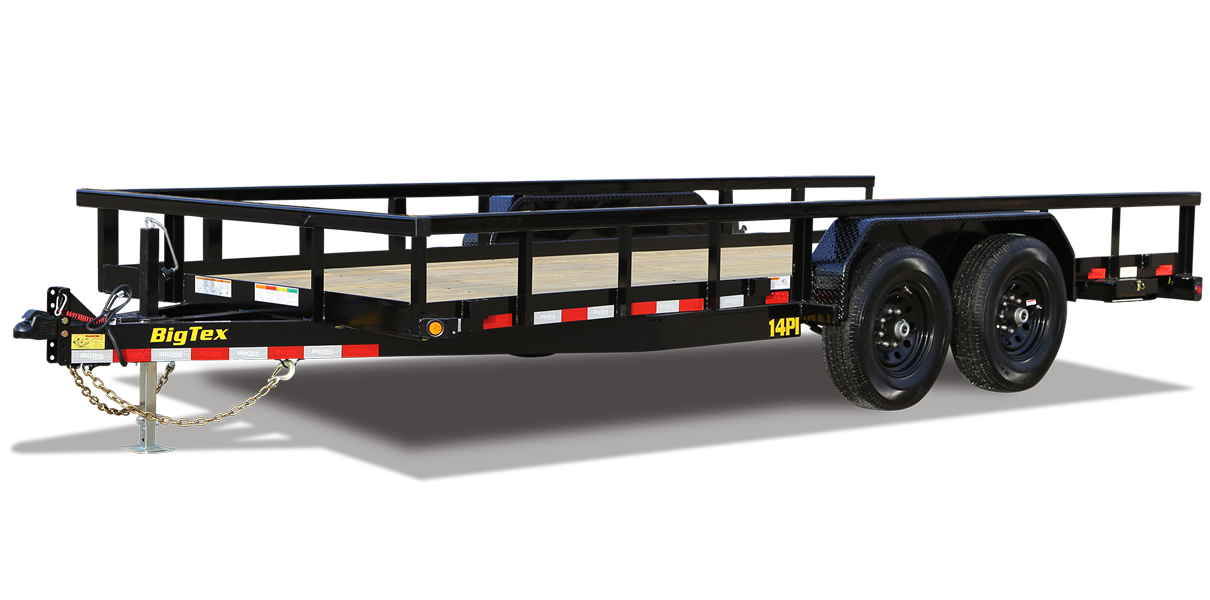

The 14PI from Big Tex is a heavy-duty, pipe-top equipment trailer. This unit comes standard with an adjustable forged coupler, LED lights and a treated floor for a professional-grade appearance and impressive brawn.

ADDITIONAL FEATURES:
• Stake Pockets on Outside Frame
• Adjustable, Forged 2-5/16" Coupler in Channel
• Fold Back/Wrap Tongue (14 & Longer)
• Set-Back, 8,000# Drop Leg Jack
• Quick Lubricating Hubs
• Premium Brand Axles
• Forward Self Adjusting Electric Brakes on All Hubs
• Cambered Axles
• Heavy Duty 3" Square Tube Top Rail
• Double Broke Diamond Plate Fenders
• Grommet Mount Sealed Lighting
• L.E.D. Lighting Package
• Protected Wiring
• Spare Tire Mount (Side)
• 4 Slide-In Ramps (Channel)
• Complete Break-A-Way System w/Charger
• Zip Breakaway Cable
• Radial Tires

Pricing and specifications are subject to change without notice. See dealer for complete details.

DIMENSIONS
Standard Size 16 ft
G.V.W.R. Rating 14,000 lbs
Trailer Weight 2,740 lbs
FRAME/SUSPENSION
Axle (2)7,000lbs Quick Lubricating w/Electric Brakes
Hitch Type Bumper Pull
Floor Type 2 in Treated Pine or Douglas Fir
Frame Type 5 x 3 x 5/16 in Angle
Suspension Type Multi-Leaf Slipper Spring w/Equalizer
Crossmembers 3 in Channel on 16 in Centers
TIRES/ WHEELS
Tire Size 16 in x 6 in
Wheel Type Heavy Black Mod 8 Bolt
