2023 Big Tex Trailers Single Axle Vanguard Utility 30SV - 8 ft

WHEN THE JOB IS ON THE LINE.

WHEN THE JOB IS ON THE LINE.

Landscape trailers are designed for performance and built around specific tasks. Big Tex has the specialized tools to move your landscaping equipment without hassle. Choose from weedeater racks, lockable landscaper boxes or expandable mesh sides, all well-designed to hold yard waste and keep your tools in place. With maximum utility and incredible value, Big Tex offers a wide selection, ensuring you the right landscaping trailer for your business.

HIGHLIGHTS:
• Piped Siding
• Single Axle
• Wall Siding

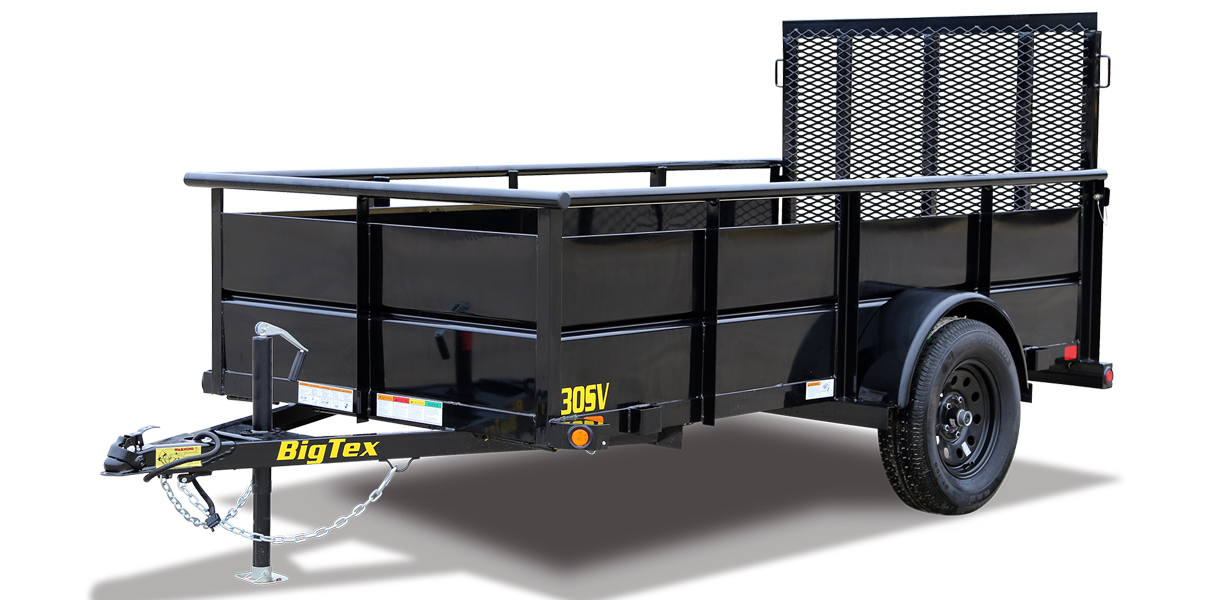

The 30SV Single Axle Vanguard Trailer from Big Tex comes with the pipe-top rail, higher sides and multiple length options, providing versatility to haul just about anything you need. Protect your cargo and trailer confidently with the 30SV.

ADDITIONAL FEATURES:
• (4) Tie Down Loops Inside Bed
• (4) Stake Pockets on Outside of Frame
• Set Back Jack
• Quick Lubricating Hubs
• Premium Brand Axle
• Durable Top Rail
• Grommet Mount Sealed Lighting
• L.E.D. Lighting Package
• Protected Wiring
• Radial Tires
• Brake Flanges on Axle for Easy Brake Addition
• Removable Sand Foot on Jack
• A-Frame Channel Tongue
• 29-3/8" Tall Sides w/ 24" V-Crimped Steel Panels

Pricing and specifications are subject to change without notice. See dealer for complete details.

DIMENSIONS
Standard Size 8 ft
G.V.W.R. Rating 2,995 lbs
Trailer Weight 870 lbs
FRAME/SUSPENSION
Axle 3,500lbs Quick Lubricating Axle w/ Brake Flanges
Hitch Type Bumper Pull
Floor Type 2 in Treated Pine or Douglas Fir
Frame Type 3 x 2 x 3/16 in Angle
Suspension Type Multi-Leaf Spring
Crossmembers 3 x 2 x 3/16 in Angle
TIRES/ WHEELS
Tire Size 15 in x 5 in
Wheel Type Black Mod, 5 on 5 Bolt Pattern
