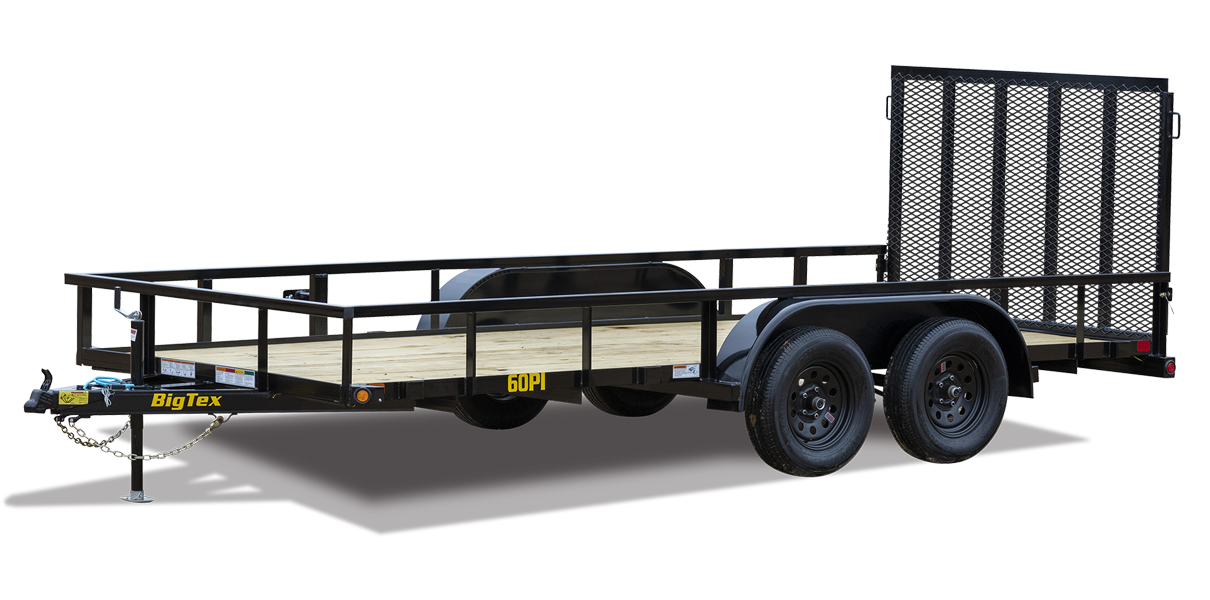

2023 Big Tex Trailers Tandem Axle Pipe Top Utility 60PI - 12 ft

WHEN THE JOB IS ON THE LINE.

WHEN THE JOB IS ON THE LINE.

Big Tex offers affordable and versatile utility trailer solutions for all your jobs. Choose from lightweight single-axle trailers to heavy-duty, dual-axle haulers and many sizes in between. With a wide range of deck sizes, payloads and rampgates, Big Tex is sure to have the right utility trailer for the job. Plus, with E-Z Lube hubs, Nev-R-Adjust electric brakes and radial tires, you can count on Big Tex utility trailers for a reliable and comfortable tow.

HIGHLIGHTS:
• Piped Siding
• Tandem Axle
• Wall Siding

The 60PI Tandem Axle Pipe Top Utility Trailer from Big Tex is perfect for hauling light equipment. Optional slide-in ramps allow for easy loading and unloading of equipment.

ADDITIONAL FEATURES:
• (4) Tie Down Loops Inside Bed
• Set-Back Jack
• Quick Lubricating Hubs
• Premium Brand Axles
• Forward Self Adjusting Electric Brakes
• Cambered Axles
• Grommet Mount Sealed Lighting
• L.E.D. Lighting Package
• Protected Wiring
• Removable Sand Foot on Jack
• Complete Break-A-Way System w/Charger
• Radial Tires

Pricing and specifications are subject to change without notice. See dealer for complete details.

DIMENSIONS
Standard Size 12 ft
G.V.W.R. Rating 6,000 lbs
Trailer Weight 1,265 lbs
FRAME/SUSPENSION
Axle (2)3,500lbs Quick Lubricating w/ (1) Elec. Brake
Hitch Type Bumper Pull
Floor Type 2 in Treated Pine or Douglas Fir
Frame Type 3 x 2 x 3/16 in Angle
Suspension Type Multi-Leaf Spring w/ Equalizer
Crossmembers 3 x 2 x 3/16 in Angle
TIRES/ WHEELS
Tire Size 15 in x 5 in
Wheel Type Black Mod, 5 on 5 Bolt Pattern
