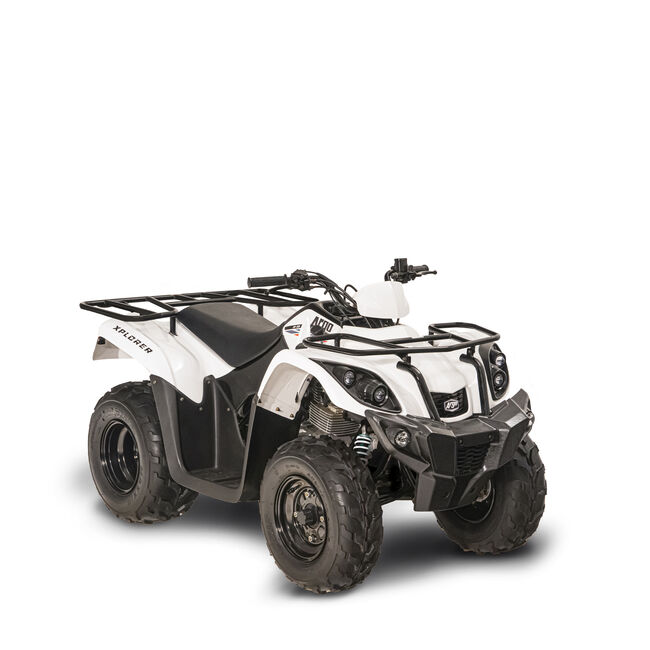

2024 ARGO XPLORER - XR 150

$3,299

FUN ON A NEW LEVEL.

FUN ON A NEW LEVEL.

Wow, are you serious!?!? This expression will be surrounded by disbelief, awe and happiness when a teen sees their new ARGO XR 150 for the first time. For ages 14 and older, this ATV is the next level up to feed their appetite for trail riding and exploring with the rest of the ATV herd. The rush they get from the 150cc fan-cooled 4-stroke engine will stick in their heads for a lifetime.

The XR 150 features dual hi/low beam headlights, as well as dual taillights and brake lights. Plus, front and rear steel racks to strap on gear for new adventures. The XR 150 is new for 2024 and will provide teenagers a transitional ATV that is set up for the fun they crave.

TRANSMISSION
Smooth in any direction. The durable automatic CVT transmission offers three gear positions -- forward, neutral and reverse.

SINGLE A-ARM SUSPENSION
While being smaller in size, the XC 90 provides a smooth ride with independent single A-arm suspension with 2.8" of travel in the front and swing arm suspension with 2.9' of travel in the rear.

INDEPENDENT SINGLE A-ARM SUSPENSION
While being smaller in size, the XR 150 provides a smooth ride with independent single A-arm suspension with 3.5" of travel in the front and swing arm suspension with 3.5" of travel in the rear.

WHEELS AND TIRES
The XR150 is equipped with Maxxis tires seated on steel rims. These off-road tires provide superior traction when venturing off road.

STEEL FRONT & REAR RACKS
These Sturdy Steel usable racks provide you with multiple tie-down locations for maximum versatility.

COLOR OPTION:
• White

Pricing and specifications are subject to change without notice. See dealer for details.

ENGINE
Engine Type 4-Stroke SOHC Single-Cylinder
Displacement 151 cc
Fuel System Carburetor
Cooling System Fan
Bore X Stroke 62 x 49.5 mm
Start Method Electric Start/Kick Start
DRIVETRAIN
Transmission Type CVT Automatic
Final Drive Chain Drive
Drive System Type 2WD
Gear Selection F/N/R
SUSPENSION
Front Suspension/ Travel Independent Single A-Arm 3.5 IN (88.9 MM)
Rear Suspension/ Travel Swing Arm 3.5 IN (88.9 MM)
BRAKES, WHEELS & TIRES
Brake - Front Dual Drum
Brake - Rear Hydraulic Disc
Wheel Rim Steel
Tire Size (Front) 21X7-10
Tire Size (Rear) 22X10-10
DIMENSIONS
Overall Lx W x H 70.9 IN (1,802 MM) x 38.0 IN (965 MM) x 40.0 IN (1,015 MM)
Ground Clearance 6.3 IN (160 MM)
Wheelbase 44.1 IN (1,115 MM)
Dry Weight 379 LB. (172 KG)
Fuel Tank Capacity 2.14 GAL (8.1 L)
