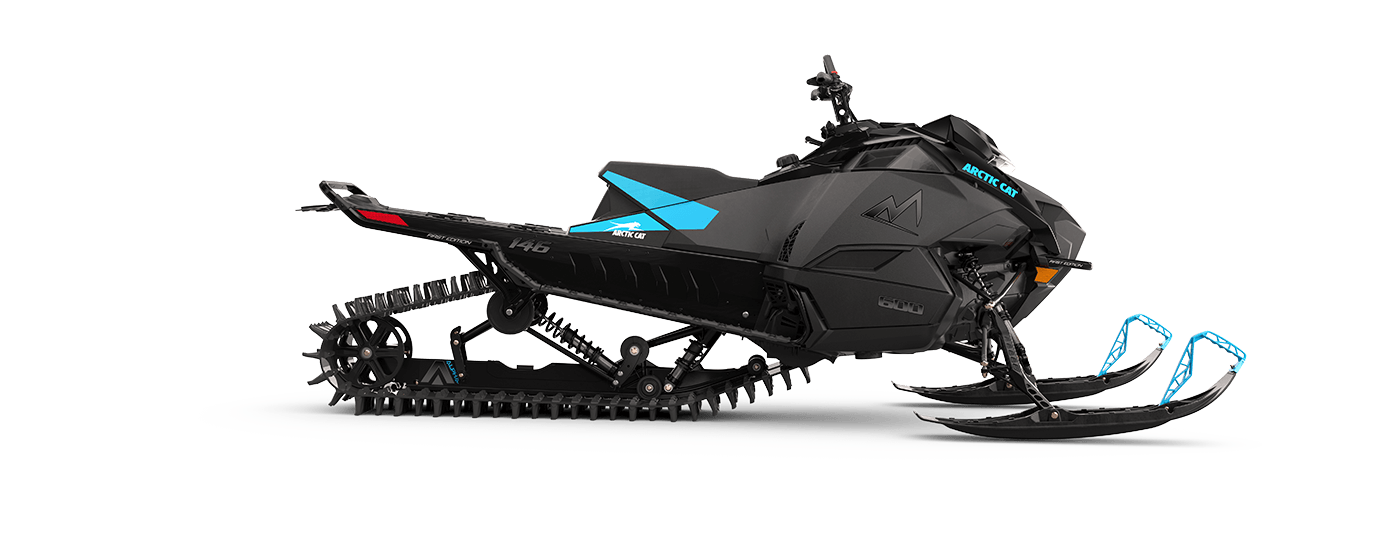

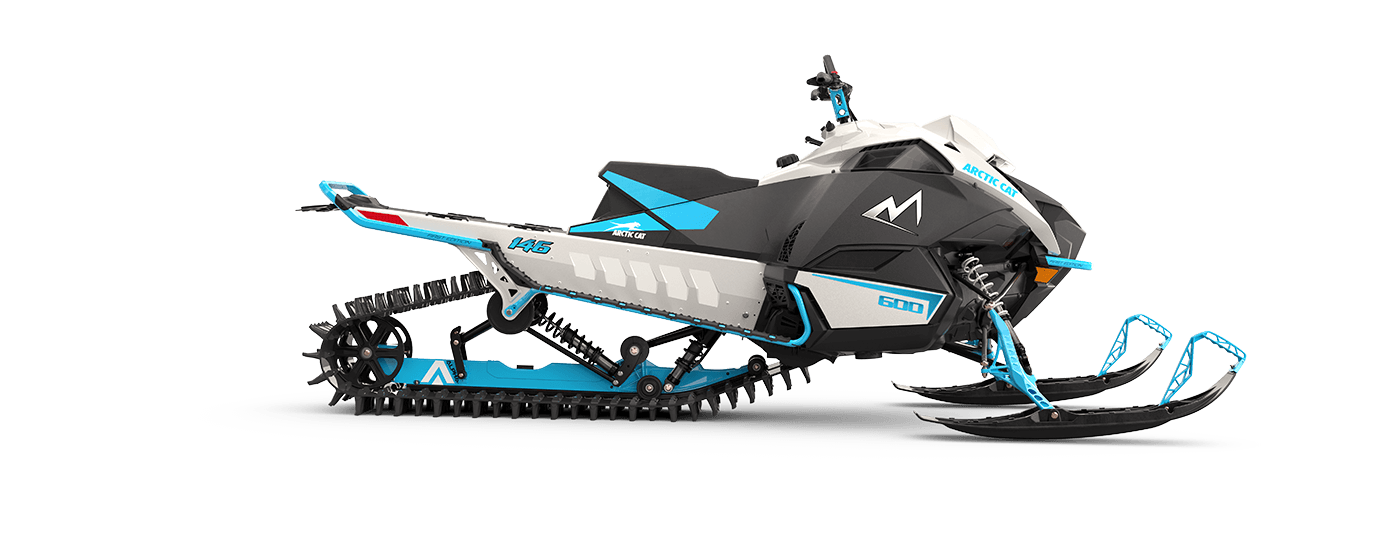

2024 Arctic Cat M 600 - ALPHA ONE
$13,899
| ENGINE/ DRIVETRAIN | |
|---|---|
| Engine | 600, 2-Stroke |
| Cylinders | 2 |
| Cooling | Liquid |
| Displacement | 599 cc |
| Bore x Stroke | 73.8 x 70 mm |
| Fuel System | Electronic Fuel Injected (EFI) |
| Starting | Electric Turn-key |
| Ignition | Digitally Controlled CDI |
| Lubrication | Electronic Injection |
| Drive System | AC M Belt Drive |
| Drive Clutch | ADAPT |
| Driven Clutch | ADAPT |
| Drive Sprocket | 9 Tooth, 2.86 Pitch, Exvolute or 7 Tooth, 3.50 Pitch, Exvolute |
| Clutch Calibration | 6,000-8,000 ft. |
| Reverse | Push-button engine |
| Transmission | Gearing - 19/50; Chain Pitch - 90 |
| Exhaust | APV with Tuned Pipe, Pipe Sensor, Manifold and Stainless Steel Muffler |
| Brakes | Stealth Hydraulic Master Cylinder |
| Fuel Type | Minimum Octane - 91 |
| Fuel Capacity | 10.4 gal. |
| Oil Capacity | 3.0 qt. |
| SUSPENSION | |
| Ski Shocks | Arctic Cat IFP 1.5 |
| Front Track Shocks | Arctic Cat IFP 1.5 |
| Rear Track Shocks | Arctic Cat IFP 1.5 |
| Front Suspension | Arctic Wishbone Suspension 36 |
| Rear Suspension | ALPHA ONE® |
| DIMENSIONS | |
| Overall L x W x H | 122 in. or 126.5 in. x 42.5-44.5 in. x 50 in. |
| Handlebar | Hooked with Grab Handle, 4.5 in. Riser |
| Instrumentation | Digital gauge - Speedometer, Tachometer, Odometer, and Fuel - Hours, Oil / Coolant Indicator Light |
| Seating or Rider Capacity | Mid-Size |
| Skis | Type - G2 ProClimb; Width - 7 in. |
| Ski Stance | 35.5-37.5 in. |
| Track Type | Power Claw |
| Track LxWxH | 146 in. or 154 in. x 15 in. x 2.60 in. or 3.00 in. |
| Pitch | 2.86 in. |
| Runner Type | Single Runner w/ Carbide |
