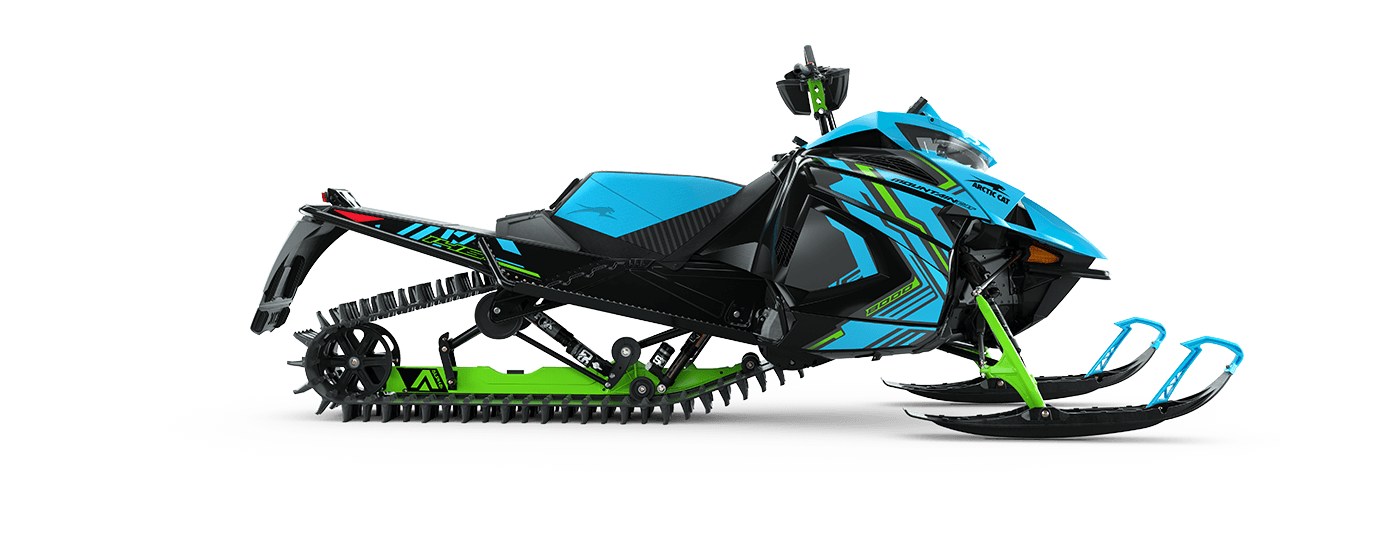

2024 Arctic Cat M MOUNTAIN CAT - ALPHA ONE
$16,399
ENGINE/ DRIVETRAIN | |
---|---|
Engine | 8000, 2-Stroke |
Cylinders | 2 |
Cooling | Liquid |
Displacement | 794 cc |
Bore x Stroke | 85 x 70 mm |
Fuel System | Next Generation C-TEC2 |
Starting | Electric Turn-key |
Ignition | Digitally Controlled CDI |
Lubrication | Electronic Injection |
Drive System | Arctic Mountain Drive System |
Drive Clutch | ADAPT |
Driven Clutch | ADAPT |
Drive Sprocket | 9 Tooth, 2.86 Pitch, Exvolute or 7 Tooth, 3.50 Pitch, Exvolute |
Clutch Calibration | 6,000-8,000 ft. |
Reverse | Push-button engine |
Transmission | Gearing - 19/50; Chain Pitch - 96 |
Exhaust | APV w/ Tuned Pipe, Pipe Sensor and Stainless Steel Manifold and Muffler |
Brakes | Stealth Hydraulic Master Cylinder w/lightweight caliper |
Fuel Type | Minimum Octane - 91 |
Fuel Capacity | 10.4 gal. or 11.7 gal. |
Oil Capacity | 3.25 qt. |
SUSPENSION | |
Ski Shocks | FOX® FLOAT 3 QS3 |
Front Track Shocks | FOX® FLOAT 3 QS3 |
Rear Track Shocks | FOX® FLOAT 3 QSL |
Front Suspension | Arctic Mountain Suspension (AMS) |
Rear Suspension | ALPHA ONE® |
DIMENSIONS | |
Overall L x W x H | 128 in. or 132 in. or 137 in. x 42.5-44.5 in. x 50 in. |
Skis | G2 ProClimb- 7 in. |
Ski Stance | 35.5-37.5 in. Adjustable |
Track Type | Power Claw |
Track LxWxH | 146 in. or 154 in. or 165 in. x 15 in. x 2.60 in. or 3.00 in. |
Pitch | 2.86 in. or 3.50 in. |
Runner Type | Single Runner w/ Carbide |
