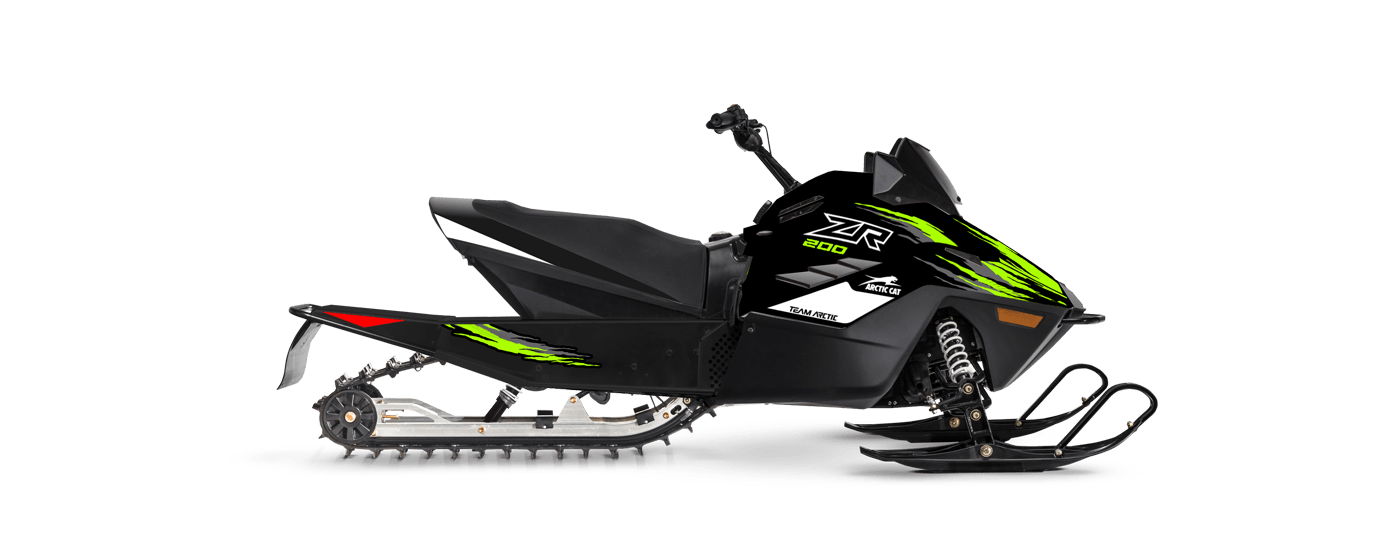

2024 Arctic Cat ZR® - 200
$5,499
ENGINE/ DRIVETRAIN | |
---|---|
Engine | 200, 4-stroke |
Cylinders | 1 |
Cooling | Air |
Displacement | 192 cc |
Bore x Stroke | 70 x 50 mm |
Fuel System | BS-25 Carburetor |
Starting | Electric Turn-key |
Ignition | CDI |
Lubrication | Oil Sump |
Drive System | Arctic 200 |
Drive Clutch | Arctic 5.25 in. Diameter (RPM Sensing) |
Driven Clutch | Arctic 6.75 in. Diameter (Roller Cam) |
Drive Sprocket | Track - 5 Tooth, 2.59 Pitch, Exvolute |
Clutch Calibration | 0 - 5,000 ft. |
Reverse | N/A |
Transmission | Gearing - N/A; Chain Pitch - N/A |
Exhaust | Muffler |
Brakes | Hydraulic Brake / Disc on Driveshaft |
Fuel Type | Minimum Octane - 87 |
Fuel Capacity | 2.2 gal. |
Oil Capacity | 0.6 qt. |
SUSPENSION | |
Ski Shocks | Hydraulic Twin Tube |
Rear Track Shocks | Hydraulic Twin Tube |
Front Suspension | Arctic Wishbone Suspension (AWS) |
Rear Suspension | Slide-Rail, Adjustable Torsion Spring, Coil-Over Rear Shock |
DIMENSIONS | |
Overall L x W x H | 84 in. x 35 - 37 in. x 36 in. |
Ski Stance | 29.5 - 31.5 in. Adjustable |
Track Type | Cobra™ |
Track LxWxH | 93 x 10 x 1 in. |
Runner Type | Single Runner |
