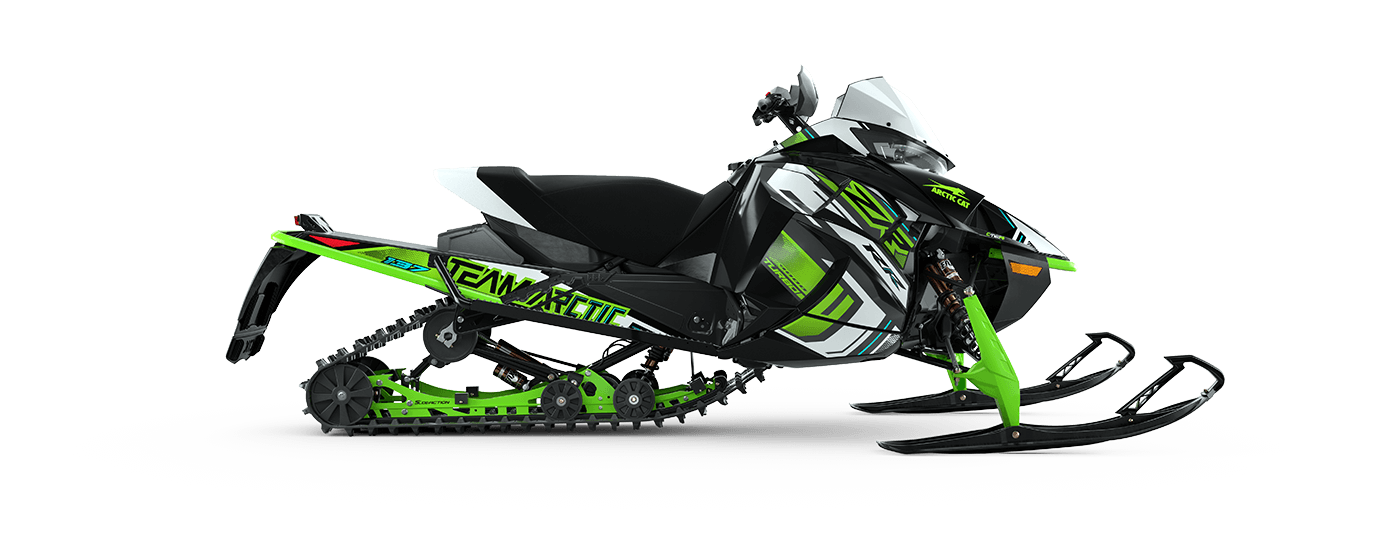

2024 Arctic Cat ZR - 9000 RR
$21,999
ENGINE/ DRIVETRAIN | |
---|---|
Engine | 9000, 4-Stroke |
Displacement | 998cc |
Cooling | Liquid |
Cylinders | 3-Turbocharged |
Bore x Stroke | 80 x 66.2 mm |
Lubrication | Dry Sump |
Ignition | Digital controlled coil induction |
Engine Stator Output | Digital controlled coil induction |
Exhaust | Turbocharger with stainless steel muffler |
Fuel Capacity | 9.9 gal. |
Oil System Capacity | 3.8 qt. |
Drive System | Arctic Drive System |
Clutch Calibration | 0-10,000 ft. |
Track Drive Sprocket | 9 Tooth, 2.86 Pitch, Exvolute |
SUSPENSION | |
Front Suspension | ARS II |
Ski Shocks | FOX 1.5 ZERO QS3R KASHIMA |
Rear Suspension | SLIDE-ACTION with 3 wheel rear axle assembly, coupling blocks, Torque-Sensing Link rear arm, and adjustable torsion springs |
Front Track Shocks | FOX 1.5 ZERO QS3 KASHIMA |
Rear Track Shocks | FOX 2.0 ZERO QS3R KASHIMA |
DIMENSIONS | |
Overall L x W x H | 125 in. x 48-49 in. x 48 in |
Track Type | Ripsaw II |
Ski Stance | 42-43 in. Adjustable |
