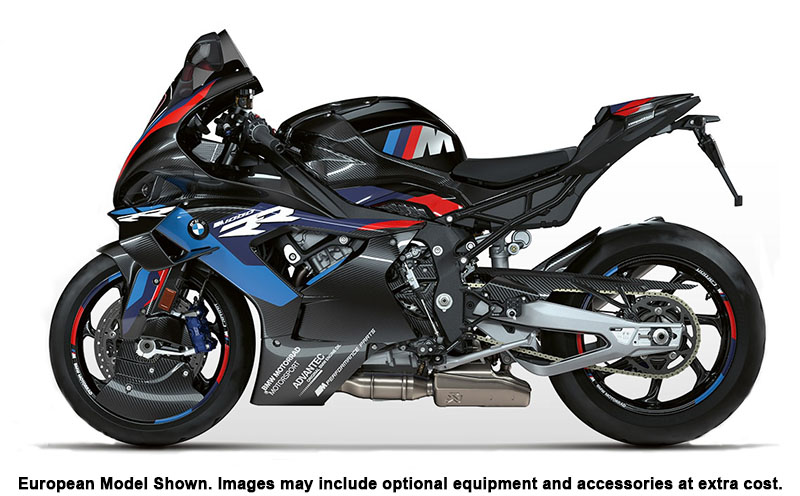

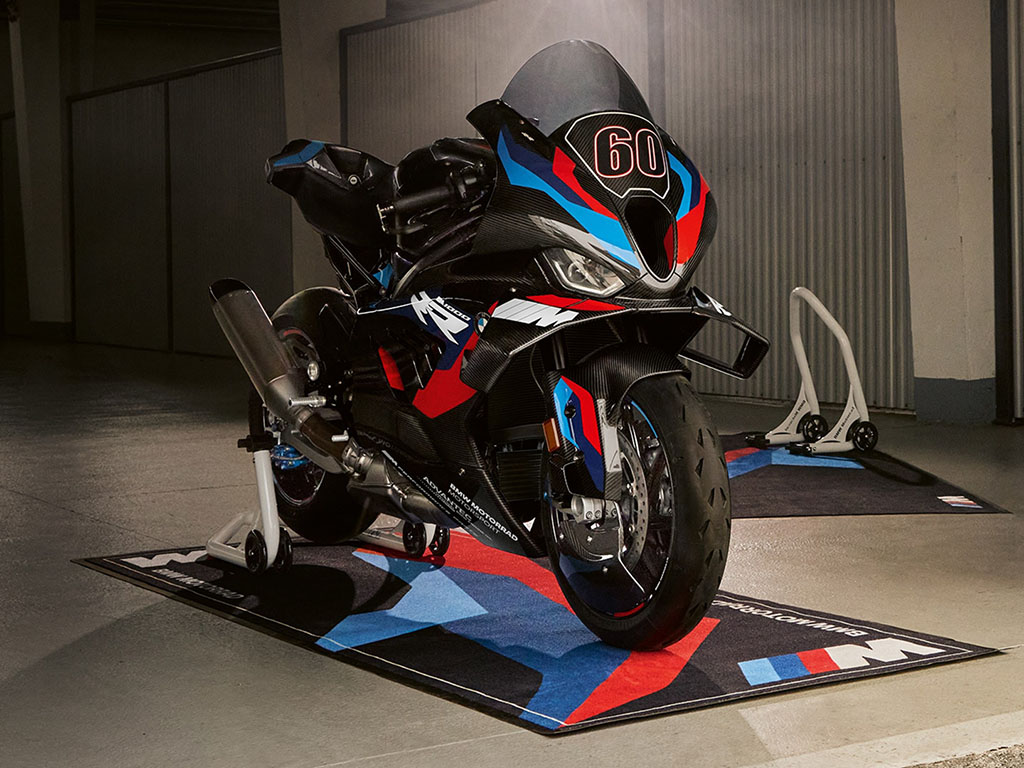

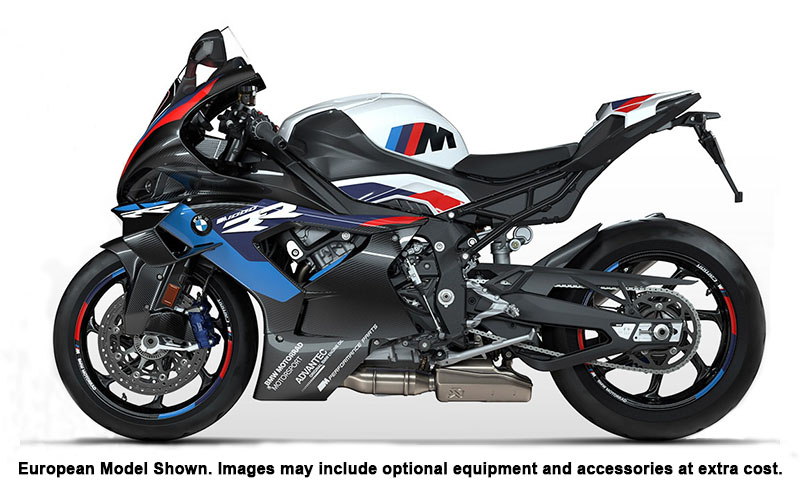

2024 BMW M - 1000 RR
ENGINE | |
---|---|
Engine Type | 4-cylinder with 4-stroke in-line engine, four titanium valves per cylinder and BMW ShiftCam |
Cooling System | Water/oil-cooled |
Bore | 80 mm |
Stroke | 49.7 mm |
Displacement | 999 cc |
Engine Power | 205 hp at 13,000 rpm |
Engine Torque | 83 lbs-ft at 11,000 rpm |
Compression Ratio | 13.5-1 |
Top Speed | 189 mph |
ELECTRICAL SYSTEM | |
Alternator | 450 W |
Battery | M Lightweight Battery, 12 V / 5 Ah, Lithium-ion |
POWER TRANSMISSION | |
Clutch | Multiplate clutch in oil bath, slipper clutch |
Gearbox | Constant-mesh 6-speed gearbox with straight cut gears |
Drive System | Chain 525 17/46 |
Traction Control | BMW Motorrad DTC |
CHASSIS | |
Frame Type | Bridge-type frame, cast aluminum, load-bearing engine |
Front Suspension | Upside-down telescopic fork, diameter 45 mm, electronic self-adjusting DDC Dynamic Damping Control, spring preload, rebound and compression stages adjustable |
Rear Suspension | Aluminum twin-sided swingarm, DDC Dynamic Damping Control (central shock absorber), adjustable spring preload, rebound and compression stages electronically adjustable |
BRAKES | |
Front braking system | Twin disc brake, diameter 320 mm, 4-piston fixed caliper |
Rear braking system | Single disc brake, diameter 220 mm, 1-piston floating caliper |
ABS | BMW Motorrad ABS Pro |
WHEELS/ TIRES | |
Wheels | M Carbon wheels |
Front Rim | 3.50 x 17 in |
Rear Rim | 6.00 x 17 in |
Front Tire | 120/70 ZR 17 |
Rear Tire | 200/55 ZR 17 |
DIMENSIONS | |
Wheelbase | 57.3 in |
Castor | 3.99 in |
Steering | 66.2° |
Overall L x W x H | 82.1 in x 35.4 in x 48.2 in |
Seat Height | 32.8 in |
Payload Capacity | 471.7 lbs |
Dry Weight | 375 lbs |
