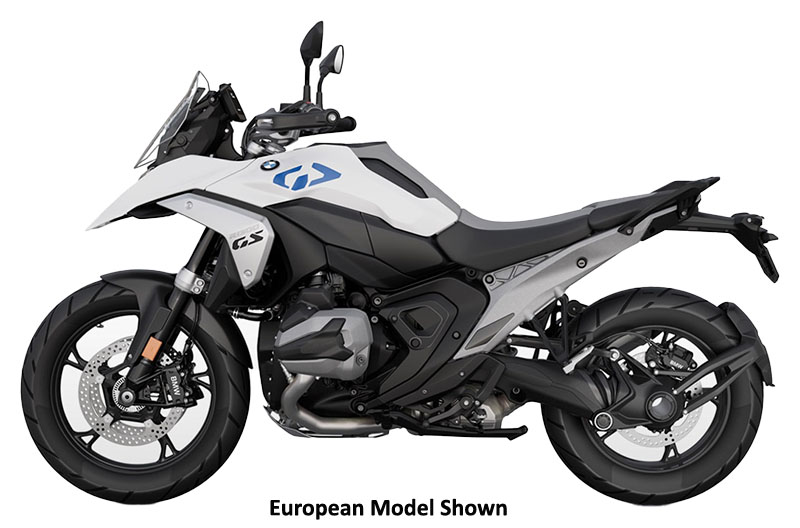

2024 BMW R - 1300 GS
ENGINE | |
---|---|
Engine Type | Four stroke flat twin engine, double overhead camshaft, one balance shaft and variable engine timing system BMW ShiftCam. |
Cooling System | Air/liquid-cooled |
Bore | 106.5 mm |
Stroke | 73 mm |
Displacement | 1,300 cc |
Engine Power | 145 hp at 7,750 rpm |
Engine Torque | 105 lb-ft at 6,250 rpm |
Compression Ratio | 13.3-1 |
Emissions | Closed-loop 3-way catalytic converter |
PERFORMANCE | |
Top Speed | over 120 mph |
Fuel Type | Super unleaded, 95 ROZ/RON; adaptive fuel quality regulation, 91-98 ROZ/RON |
ELECTRICAL | |
Alternator | Three-phase alternator with 650 W (nominal power) |
Battery | 12 V / 10 Ah Lithium-ion battery |
DRIVETRAIN | |
Clutch | Wet clutch, slipper clutch, hydraulically operated |
Gearbox | Claw-shifted 6-speed gearbox |
Drive System | Cardan shaft drive |
CHASSIS | |
Frame Type | Two-part frame consisting of main frame, bolted rear frame, and load-bearing engine |
Front Suspension | BMW Motorrad EVO-Telelever, handlebar tilting decoupled via flex element, central shock absorber |
Rear Suspension | BMW Motorrad EVO-Paralever, cast aluminum single-sided swingarm, transversal connected swingarm bearings, central WAD spring strut, spring preload fully adjustable |
BRAKES/ WHEELS/ TIRES | |
Front braking system | Twin disc brake, semi-floating brake discs, diameter 310 mm, 4-piston radial brake caliper |
Rear braking system | Single disc brake, diameter 285 mm, 2-piston floating caliper |
ABS Option | BMW Motorrad Full Integral ABS Pro (lean angle optimized) |
Wheels | Aluminum cast wheels |
Front Wheel Travel | 7.5 in |
Rear Wheel Travel | 7.9 in |
Front Wheel | 3.00 x 19 in |
Rear Wheel | 4.50 x 17 in |
Front Tire | 120/70 R 19 |
Rear Tire | 170/60 R 17 |
DIMENSIONS | |
Length | 87.1 in (over splash guard) |
Width | 39.4 in (over hand guard) |
Height | 55.4 in (above windshield) |
Seat Height | 33.4 in |
Fuel Capacity | 5.0 gal |
Fuel Reserve | Approx. 1 gal |
Payload Capacity | 502 lbs |
Weight | 523 lbs |
