2024 Benelli TRK - 502X

THE X FACTOR.

THE X FACTOR.

Benelli's TRK 502 X is always in the mood no matter what two-wheeled adventures you have in mind. Designed to conquer riding conditions known to man or motorcycle, the TRK 502 X charges into dirt, sand, and tarmac with equal abandon. Sporting higher ground clearance and more off-road-centric wheels and tires to go along with the same powerful liquid-cooled 500cc twin-cylinder engine featured on the base model TRK, the 'X' dares you to cross the line and fearlessly journey to parts unknown.

ALUMINUM ALLOY WITH IRON SPOKES WHEELS
Multi-spoke design wheels with grippy 150/70 (r) and 110/80 (f) tires hold your line and carry momentum even when tackling the toughest off-road trails. Dual 320mm discs with 4-piston calipers up front deliver world-class stopping power, plus ABS.

WIND AND WEATHER PROTECTION
Wind tunnel-designed faring and windscreen over maximum wind and weather protection for rider and passenger.

ADVANCED TWIN-CYLINDER ENGINE
Plenty of power from the TRK's 500cc, liquid-cooled, DOHC, 8-valve, electronic-injected, electric-start engine

LIGHTWEIGHT EXHAUST SYSTEM
Advanced materials offer maximized power, decreased noise, low weight, while hitting all the right notes.

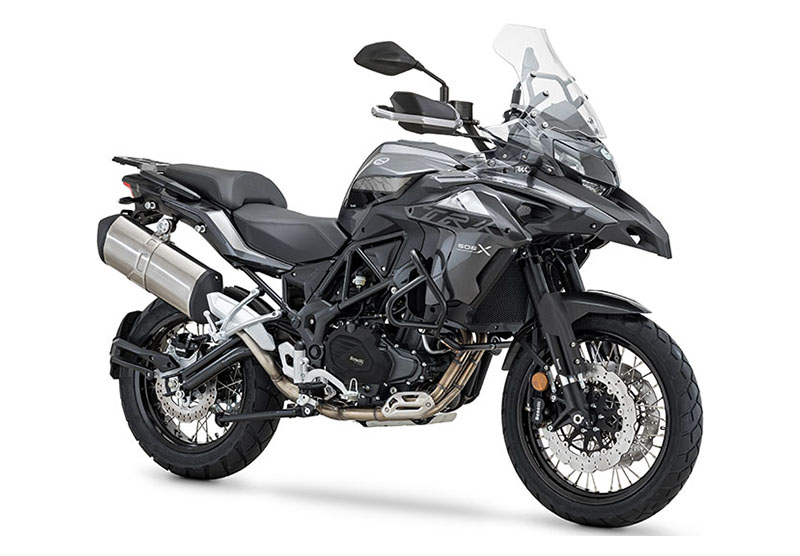

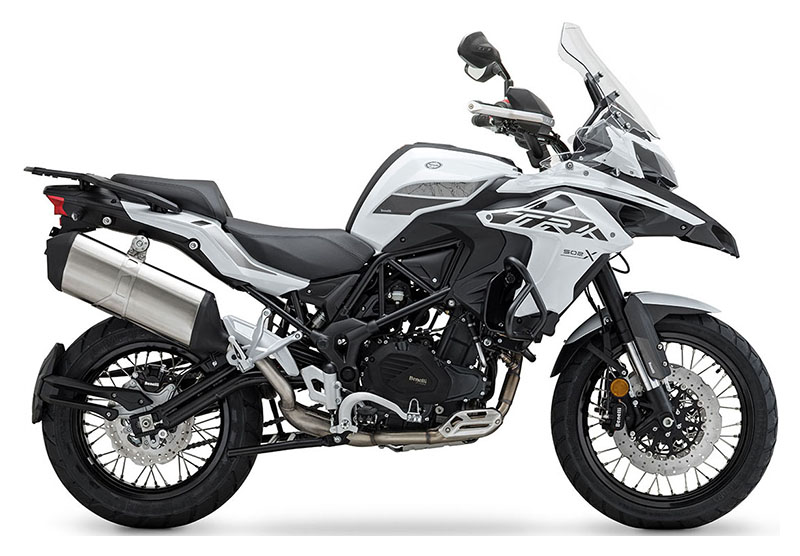

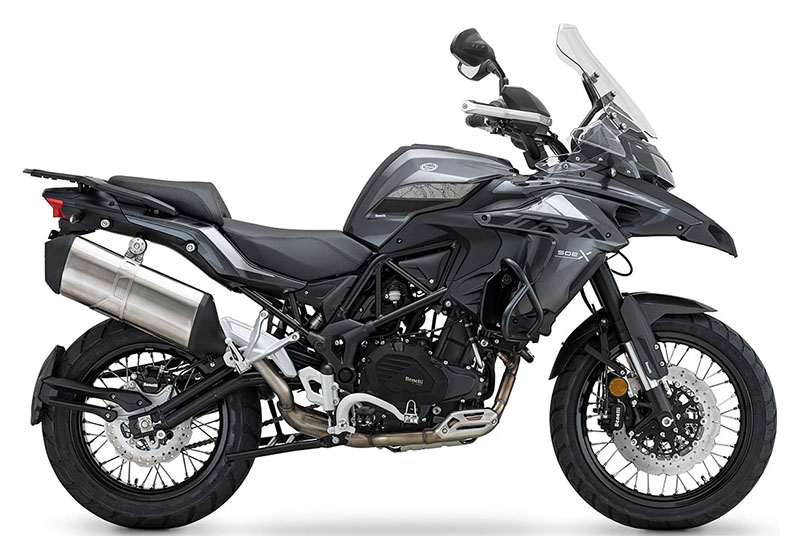

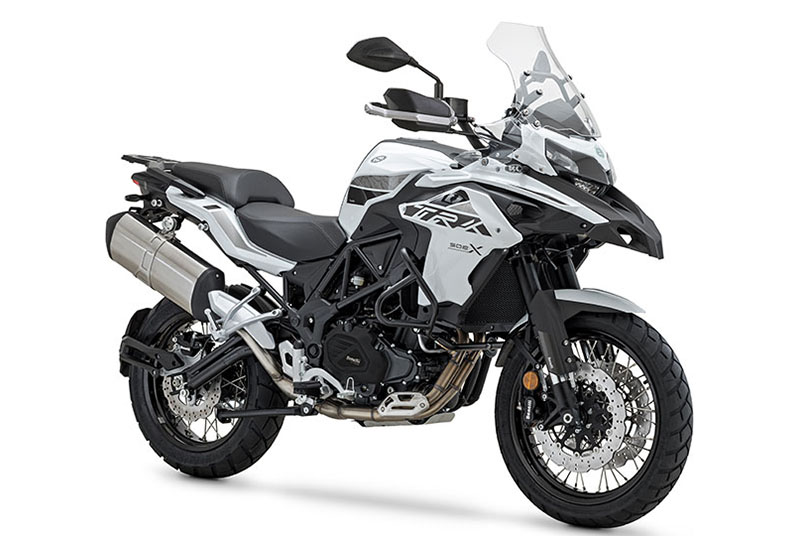

COLOR OPTIONS:
• Gray
• White

MSRP does not include destination charge, set up, tax, title, license or any other dealer fees. Specifications and pricing are subject to change without notice. See dealer for details.

ENGINE
Engine Type Inline 2 cylinder, 4-stroke, 4 valves per cylinder, DOHC
Displacement 500 cc
Bore x Stroke 69 mm x 66.8 mm
Compression Ratio 11.5 - 1
Engine Power 46.9 hp (35 kW) @ 8500 rpm
Engine Torque 33.9 lb. ft. (46 Nm) @ 6,000 rpm
Fuel Supply EFI w/ 37 mm Throttle Body
Starter Electric
Transmission 6-speed
CHASSIS
Front Suspension 50 mm upside-down forks
Rear Suspension Rear swing arm with central shock absorber, spring preload, hydraulic rebound and compression setting adjustable
Front Braking System Dual Disc Ø 320 mm, w/ 4 Piston Caliper & ABS
Rear Braking System Disc Ø 260 mm, w/ Single Piston Caliper & ABS
Front Wheel Aluminum alloy with iron spokes Front dimension - 19 x 3.00 in. DOT
Rear Wheel Aluminum alloy with iron spokes Front dimension - 17 x 4.25 in. DOT
Front Tire 110 / 80-R19 - M / C 59V
Rear Tire 150 / 70-R17 - M / C 69V
DIMENSIONS
Overall L x W x H 86.6 in. (2,200 mm) x 36 in. (915 mm) x 58.6 in. (1,490 mm)
Seat Height 33 in. (840 mm)
Wheelbase 60 in (1525 mm)
Ground Clearance 8.6 in. (220 mm)
Fuel Capacity 5.28 gal (20 L)
Weight Unladen - 469.6 lb. (213 kg)
