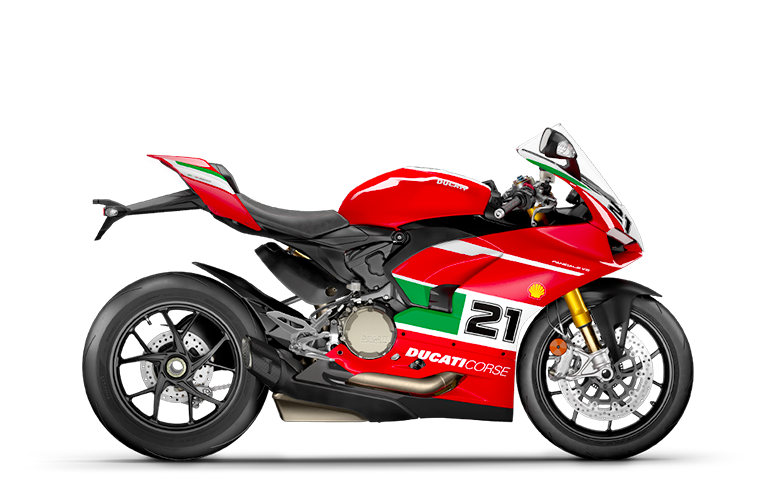

2024 Ducati Panigale - V2 Bayliss
$22,995
ENGINE | |
---|---|
Engine Type | Superquadro, 4 valve per cylinder, Desmodromic |
Displacement | 955 cc |
Bore x Stroke | 3.9 x 2.4 in. (100 x 60.8 mm) |
Compression Ratio | 12.5 to 1 |
Engine Power | 155 hp (114 kW) @ 10,750 rpm |
Engine Torque | 76.7 lb. ft. (104 Nm) @ 9,000 rpm |
Fuel Injection | Electronic fuel injection system. Twin injectors per cylinder. Full ride-by-wire elliptical throttle bodies |
TRANSMISSION | |
Gearbox | 6 speed with Ducati Quick Shift (DQS) up / down EVO 2 |
Primary Drive | Straight cut gears; Ratio 1.77-1 |
Final Drive | Chain; front sprocket 15; rear sprocket 43 |
Clutch | Hydraulically controlled slipper and self-servo wet multiplate |
CHASSIS / SUSPENSION | |
Frame Type | Monocoque aluminum |
Front Suspension | Ohlins NIX30 43 mm with TiN treatment, fully adjustable usd fork |
Rear Suspension | Fully adjustable Ohlins TTX36 monoshock. Aluminum single-sided swingarm |
BRAKES/WHEELS/TIRES | |
Front braking system | 2 x 320 mm semi-floating discs, radially mounted Brembo Monobloc M4.32 4-piston callipers with Cornering ABS EVO |
Rear braking system | 245 mm disc, 2-piston calliper with Cornering ABS EVO |
Front Wheel | 5-spokes light alloy 3.50 x 17 in. |
Rear Wheel | 5-spokes light alloy 5.50 x 17 in. |
Front Tire | Pirelli Diablo Rosso Corsa II 120 / 70 ZR17 |
Rear Tire | Pirelli Diablo Rosso Corsa II 180 / 60 ZR17 |
Front Wheel Travel | 4.72 in. (120 mm) |
Rear Wheel Travel | 5.12 in. (130 mm) |
DIMENSIONS | |
Seat Height | 32.9 in. (835 mm) |
Wheelbase | 56.6 in. (1,438 mm) |
Rake/Trail | 24° / 94 mm |
Fuel Capacity | 4.5 US gal. (17 l) |
Weight | Dry - 385 lb. (174.5 kg) |
