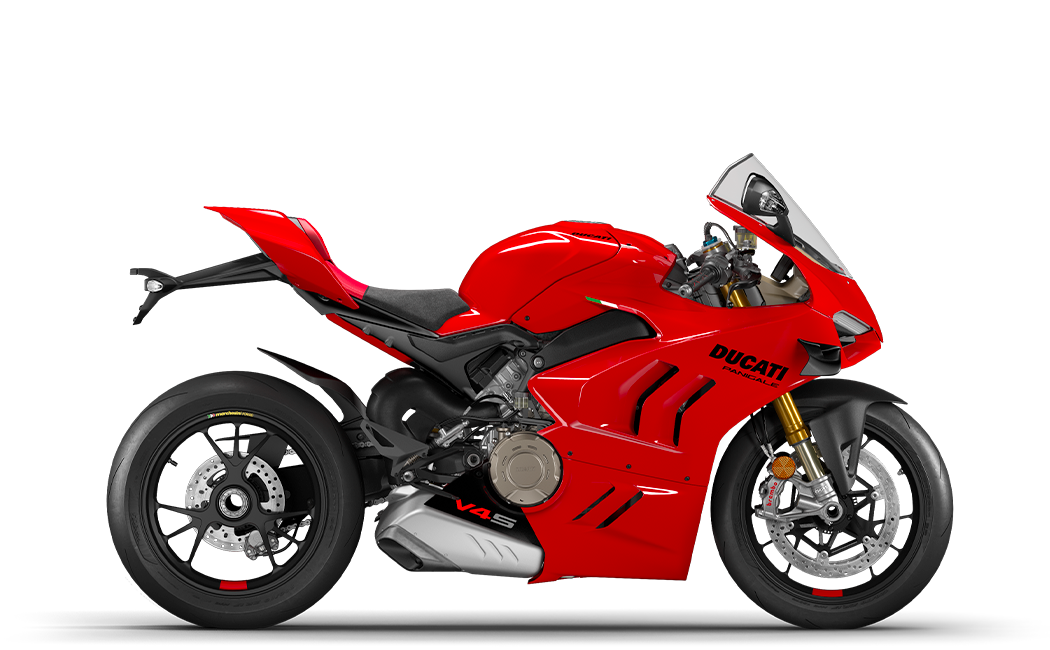

2024 Ducati Panigale - V4 S
$32,195
ENGINE | |
---|---|
Engine Type | Desmosedici Stradale 90° V4, counter-rotating crankshaft, 4 Desmodromic timing, 4 valves per cylinder |
Displacement | 1,103 cc |
Bore x Stroke | 3.2 x 2.1 in. (81 x 53.5 mm) |
Compression Ratio | 14 to 1 |
Engine Power | 210 hp (154.5 kW) @ 12,500 rpm |
Engine Torque | 90.6 ft. lb. (122.8 Nm) @ 11,000 rpm |
Fuel Injection | Electronic fuel injection system. Twin injectors per cylinder. Full ride-by-wire elliptical throttle bodies |
TRANSMISSION | |
Gearbox | 6 speed with Ducati Quick Shift (DQS) up / down EVO 2 |
Primary Drive | Straight cut gears; Ratio 1.80-1 |
Final Drive | Chain; front sprocket 16; rear sprocket 41 |
Clutch | Hydraulically controlled slipper and self-servo wet multiplate |
CHASSIS / SUSPENSION | |
Frame Type | Aluminum alloy "Front Frame" with optimized stiffnesses |
Front Suspension | Fully adjustable Showa BPF fork, 43 mm chromed inner tubes |
Rear Suspension | Fully adjustable Sachs unit, aluminum single-sided swingarm |
BRAKES/WHEELS/TIRES | |
Front braking system | 2 x 320 mm semi-floating discs, radially mounted Brembo Monobloc M4.32 4-piston callipers with Cornering ABS EVO |
Rear braking system | 245 mm disc, 2-piston calliper with Cornering ABS EVO |
Front Wheel | 3-spokes forged aluminum alloy 3.50 x 17 in. Marchesini aluminum forged. |
Rear Wheel | 3-spokes forged aluminum alloy 6.00 x 17 in. Marchesini aluminum forged. |
Front Tire | Pirelli Diablo Supercorsa SP 120 / 70 ZR17 |
Rear Tire | Pirelli Diablo Supercorsa SP 200 / 60 ZR17 |
Front Wheel Travel | 4.7 in. (120 mm) |
Rear Wheel Travel | 5.1 in. (130 mm) |
DIMENSIONS | |
Seat Height | 33.5 in. (850 mm) |
Wheelbase | 57.8 in. (1,469 mm) |
Rake/Trail | 24° / 94 mm |
Fuel Capacity | 4.5 US gal. (17 l) |
Weight | Dry - 384 lb. (174 kg) |
