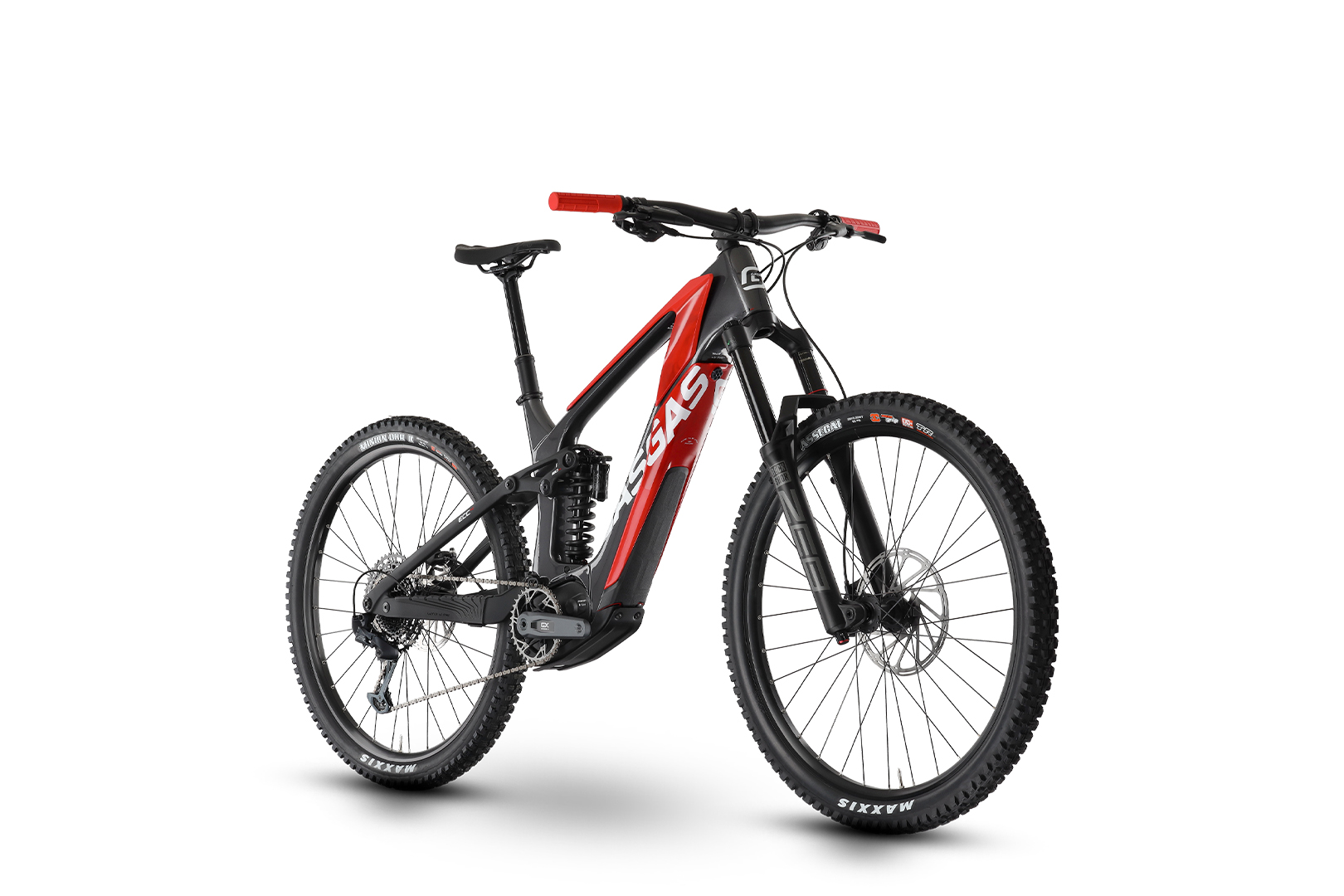

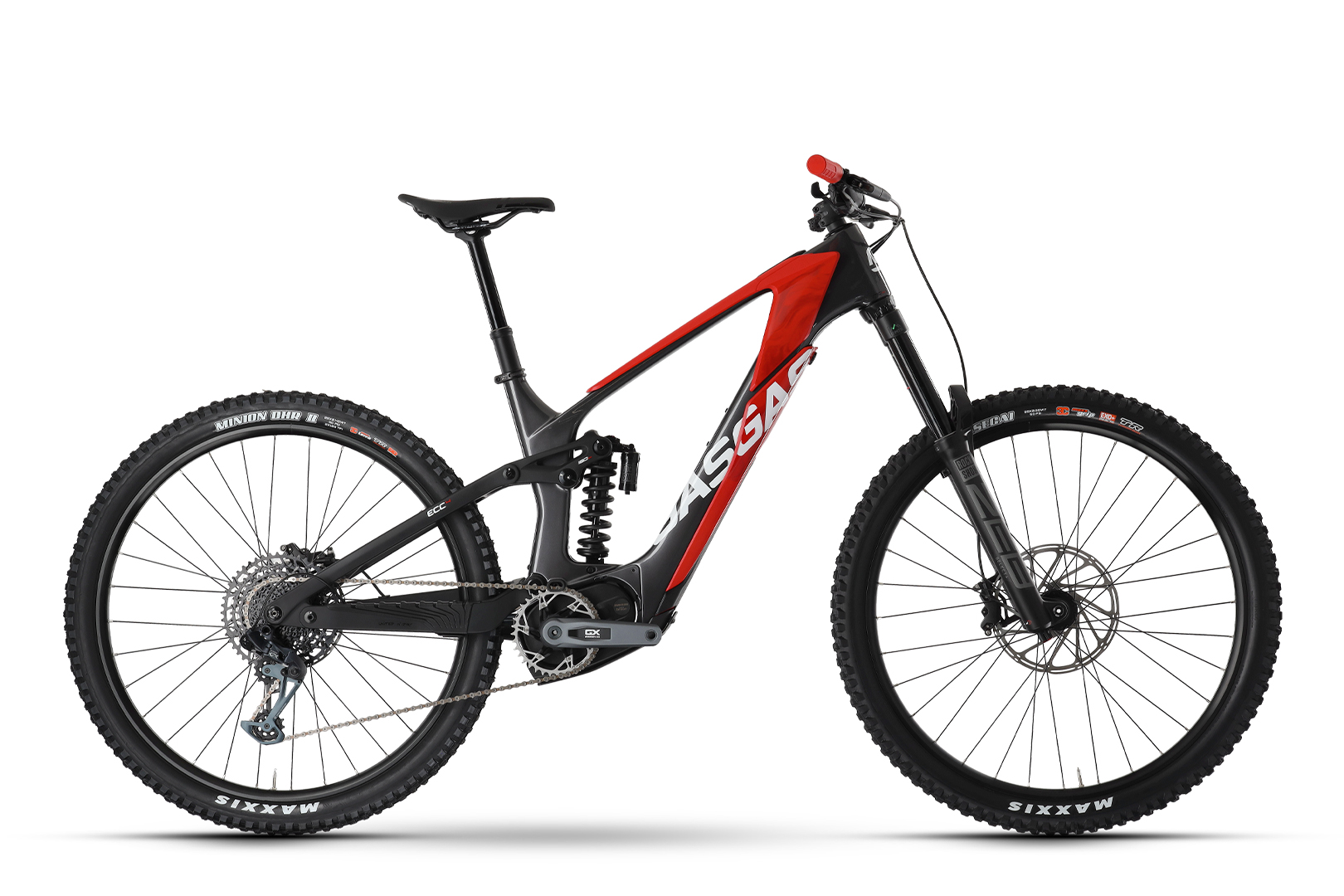

2024 GASGAS ECC - 4 XL

AL MAXIMO.

AL MAXIMO.

The groundbreaking ECC 4 completes our all-new E-Enduro eMTB range. With a race-proven, World Cup podium pedigree, the carbon frame and size-specific rear triangle create an unrivaled ride feel that delivers superb handling on the toughest of trails. The SRAM components compliment the ECC 4, with a 12-speed GX Eagle drivetrain and GX Eagle crank arms, and SRAM DB8 brakes using 220/200mm SRAM Centerline rotors.

SRAM Eagle Powertrain
SRAM's Eagle Powertrain Drive Unit puts out 90Nm of torque and 680W peak power using a 630Wh SRAM battery and an easy-to-use toptube mounted color display unit.

Rockshox Suspension
Enduro thrills are guaranteed via a 170mm Rockshox ZEB Select+ front fork and a 160mm Super Deluxe Select+ rear coil shock. Get deep into that suspension as you hit your gnarliest trail sections.

COLOR OPTION:
· Blanca White

Specifications may change depending on supply of parts to our factory. Please contact your local dealer for exact specifications of their stock.

FRAMESET
Frame Type 29-inch, Carbon, Integrated battery, Boost, 160 mm
Fork RockShox ZEB Select+, DebonAir+, Air, 170 mm, tapered
Shock RockShox Super Deluxe Select+, Coil, 205x65 mm
BRAKES / DRIVETRAIN
Motor SRAM Eagle Powertrain Drive Unit, 250 W, 90 Nm
Battery SRAM Eagle Powertrain, 630 Wh
Charger SRAM Eagle Powertrain Charger, 4 A
Cassette / Chain SRAM PG-1210, 11-50 T / SRAM SX Eagle
WHEELS
Front Wheel Rim - Mach 1 TRUCKY 30, With eyelets, No / Hub - GASGAS DA210F, 6-hole, 15x110 mm, thru axle
Rear Wheel Rim - Mach 1 TRUCKY 30, With eyelets, No / Hub - GASGAS DA210R, 6-hole, 12x148 mm, thru axle
Front Tire Maxxis Assegai, 63-622, 29 x 2.5
Rear Tire Maxxis Minion DHR II, 62-622, 29 x 2.4
COCKPIT
Stem GASGAS 35, 0 °, Ahead
Handlebar GASGAS Riser 35 mm, 780 mm, Sweep
Saddle Selle San Marco GND
DIMENSIONS
Weight 24.4 kg
Permissible total weight 130 kg
