2024 GASGAS ECC - 5 M

DONT HOLD BACK.

DONT HOLD BACK.

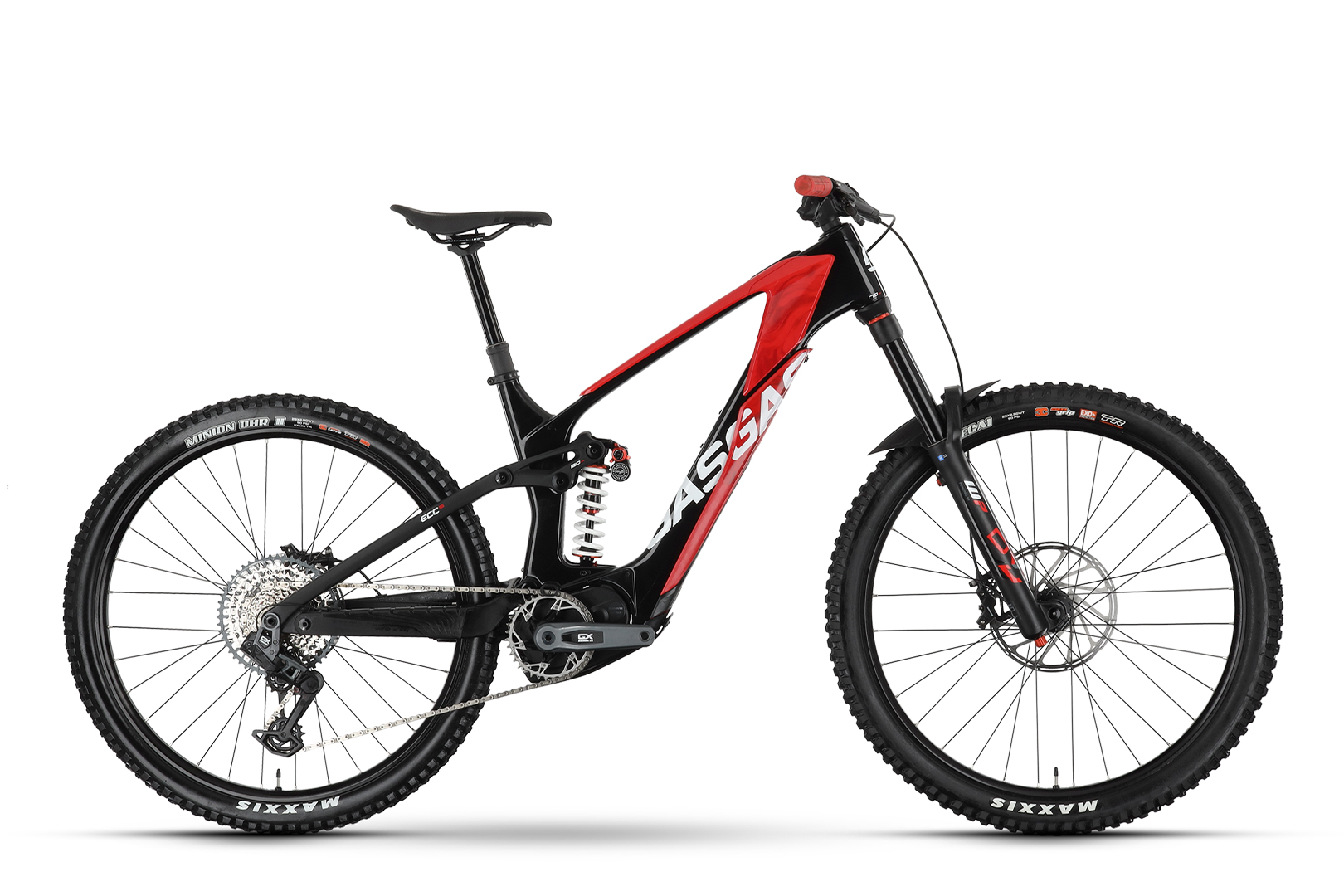

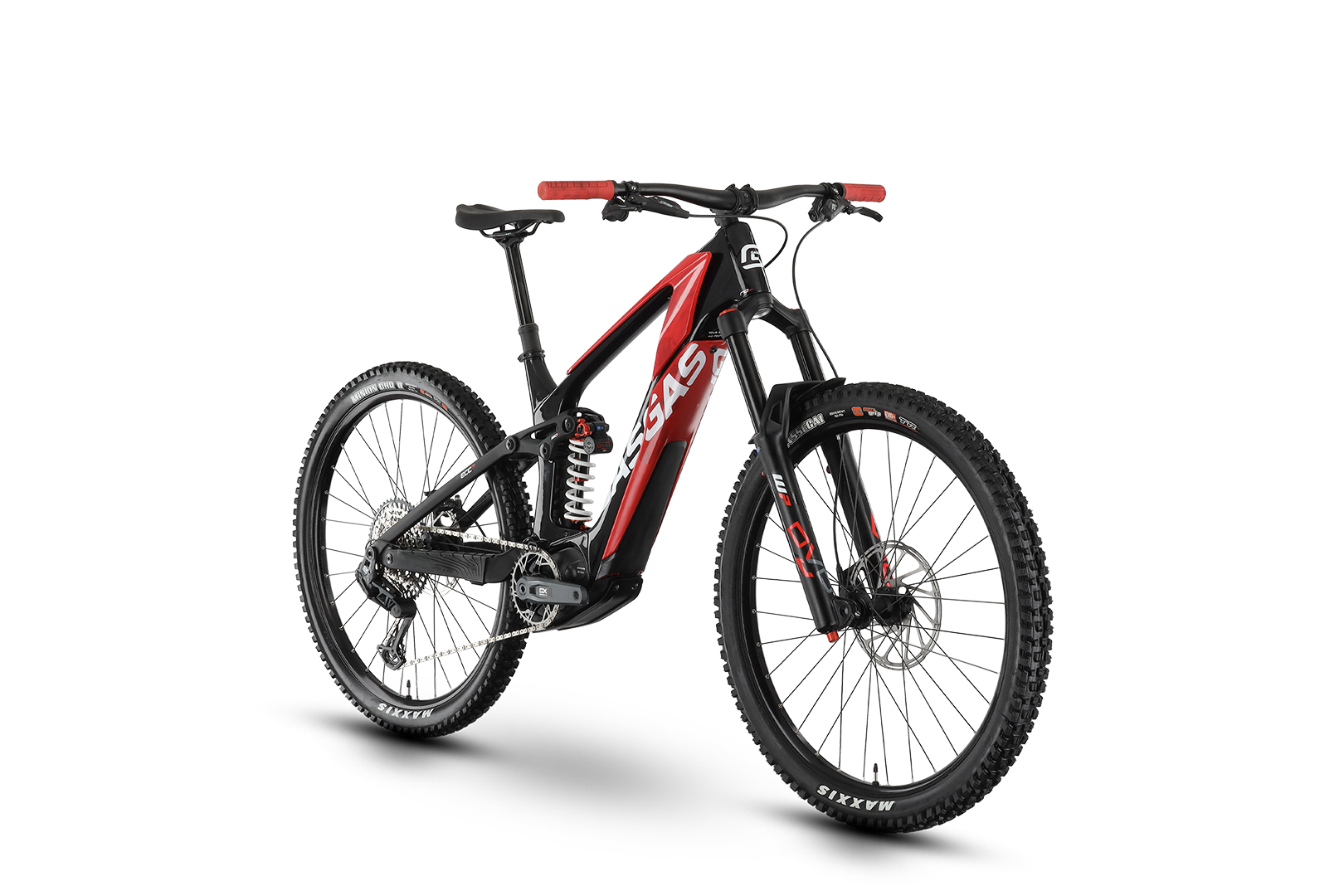

The ECC 5 is the second-tier model in our totally new ECC E-Enduro eMTB range. Featuring the same frame platform as the flagship ECC 6 model for maximum shredability, the rig remains an amazing set-up when paired with a 12-speed SRAM GX Eagle Transmission drivetrain, SRAM AXS Pod Ultimate Controller, 4-piston SRAM G2 RS brakes with 220/200mm rotors, and Maxxis rubber.

SRAM Eagle Powertrain
SRAM's Eagle Powertrain delivers ultimate pedal-assist tech. Super-quiet, its 90Nm of torque and 680W peak power has a natural pedaling experience enhanced by auto-shift and coast-shift technology.

WP Suspension Partnership with DVO
In partnership with DVO, suspension is a 170mm WP 38CV SL air fork and WP CV Coil HLC rear shock and features WP's proprietary cone valve technology for maximum traction and control.

COLOR OPTION:
· Sangria Red

Specifications may change depending on supply of parts to our factory. Please contact your local dealer for exact specifications of their stock.

FRAMESET
Frame Type 29-inch, Carbon, Integrated battery, Boost, 160 mm
Fork DVO Onyx D1CV OTT, Air, 170 mm, tapered
Shock DVO JadeX CV Coil, Coil, 205x65 mm
BRAKES / DRIVETRAIN
Motor SRAM Eagle Powertrain Drive Unit, 250 W, 90 Nm
Battery SRAM Eagle Powertrain, 630 Wh
Charger SRAM Eagle Powertrain Charger, 4 A
Cassette / Chain SRAM XS-1295, 10-52 T / SRAM GX Eagle Transmission Flattop
WHEELS
Front Wheel Rim - Mach 1 TRUCKY 30, With eyelets, Tubeless ready / Hub - GASGAS DA210F, 6-hole, 15x110 mm, thru axle
Rear Wheel Rim - Mach 1 TRUCKY 30, With eyelets, Tubeless ready / Hub - GASGAS DA210R, 6-hole, 12x148 mm, thru axle
Front Tire Maxxis Assegai, 63-622, 29 x 2.5
Rear Tire Maxxis Minion DHR II, 62-622, 29 x 2.4
COCKPIT
Stem GASGAS 35, 0 °, Ahead
Handlebar GASGAS Riser 35 mm, 780 mm, Sweep
Saddle Selle San Marco GND
DIMENSIONS
Weight 24.4 kg
Permissible total weight 130 kg
