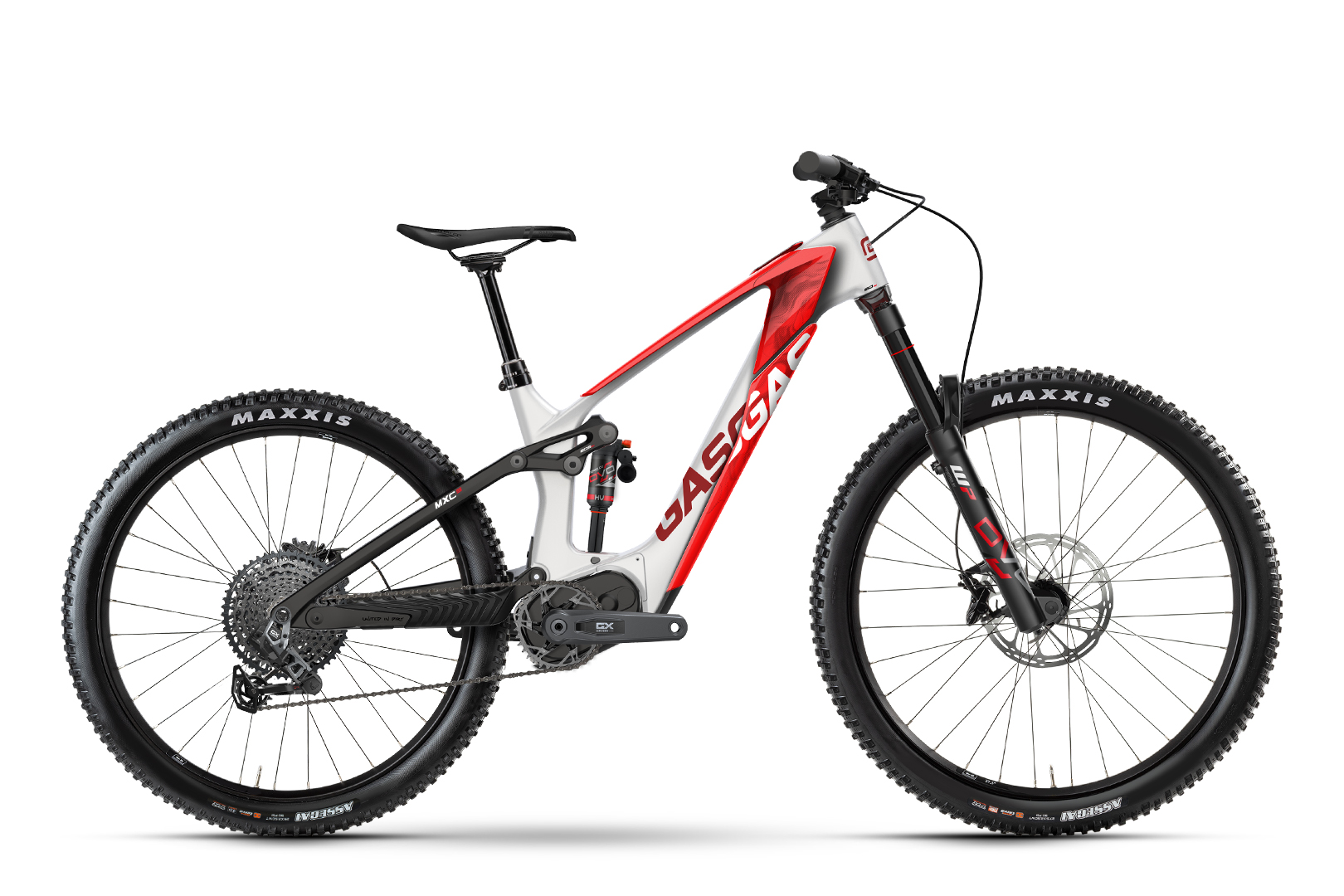

2024 GASGAS MXC - 5 L

FULL SEND.

FULL SEND.

The MXC 5 is a playful all-mountain, all-rounder. A package of brazen fun, it's built for thrills and high-energy trail seekers. With a 160/140mm suspension platform, it's massively capable in any surrounding and is a bike that is not defined by any one genre. Bike park laps, rowdy natural trails, jump lines, free riding in the mountains...it does it all in true GASGAS style.

Capable chassis
The carbon frame, with mullet wheel set-up and size-specific rear-end are matched with progressive geometry and playful kinematics for a ride that's super agile and instantly confidence-inspiring.

Powered by SRAM
SRAM's new Eagle Powertrain provides 90Nm of torque, 680W peak power and some dynamic auto-shift and coast-shift functions. The 630Wh battery and optional 250Wh Range Extender balance weight and range.

COLOR OPTION:
· Blanca White / Electronic Red

Specifications may change depending on supply of parts to our factory. Please contact your local dealer for exact specifications of their stock.

FRAMESET
Frame Type 29/27.5 inch, Carbon, Integrated battery, Boost, 140 mm
Fork DVO Onyx D1CV SL, Air, 160 mm, tapered
Shock DVO Topaz AIR CV, Air, 205x60 mm
BRAKES / DRIVETRAIN
Motor SRAM Eagle Powertrain Drive Unit, 250 W, 90 Nm
Battery SRAM Eagle Powertrain, 630 Wh
Charger SRAM Eagle Powertrain Charger, 4 A
Cassette / Chain SRAM XS-1275, 10-52 T / SRAM GX Eagle Transmission Flattop
WHEELS
Front Wheel Rim - Mach 1 TRUCKY 30, With eyelets, Tubeless ready / Hub - GASGAS DA210F, 6-hole, 15x110 mm, thru axle
Rear Wheel Rim - Mach 1 TRUCKY 30, Rim - Mach 1 TRUCKY 30, With eyelets, Tubeless ready / Hub - GASGAS DA210R, 6-hole, 12x148 mm, thru axle
Front Tire Maxxis Assegai, 63-622, 29 x 2.5
Rear Tire Maxxis Minion DHR II, 62-584, 27.5 x 2.4
COCKPIT
Stem GASGAS 35, 0 °, Ahead
Handlebar GASGAS Riser 35 mm, 780 mm, Sweep
Saddle Selle San Marco GND
DIMENSIONS
Weight 24.1 kg
Permissible total weight 130 kg
