2024 Harley Davidson Fat Boy® 114 - FLFBS

A HEAVYWEIGHT KNOCKOUT.

A HEAVYWEIGHT KNOCKOUT.

The H-D® Cruiser models are where authentic heritage meets modern technology for power, style, and the unadulterated riding experience - around town or along country roads. Adored since day one, the singular Harley-Davidson® Fat Boy® 114 stands out with bright chrome and bold finishes.

HIGHLIGHTS:
• Relaxed riding position.
• Forward foot controls.
• Passenger seat.

MILWAUKEE-EIGHT® 114 ENGINE
Loads of torque for on-demand power you can feel with each twist, accompanied by that evocative H-D® sound.

HIGH-PERFORMANCE FRONT SUSPENSION
Sophisticated suspension technology provides reduced weight with linear damping characteristics.

BRIGHT CHROME FINISHES
If the bike’s size doesn’t grab attention, its bright chrome finishes will.

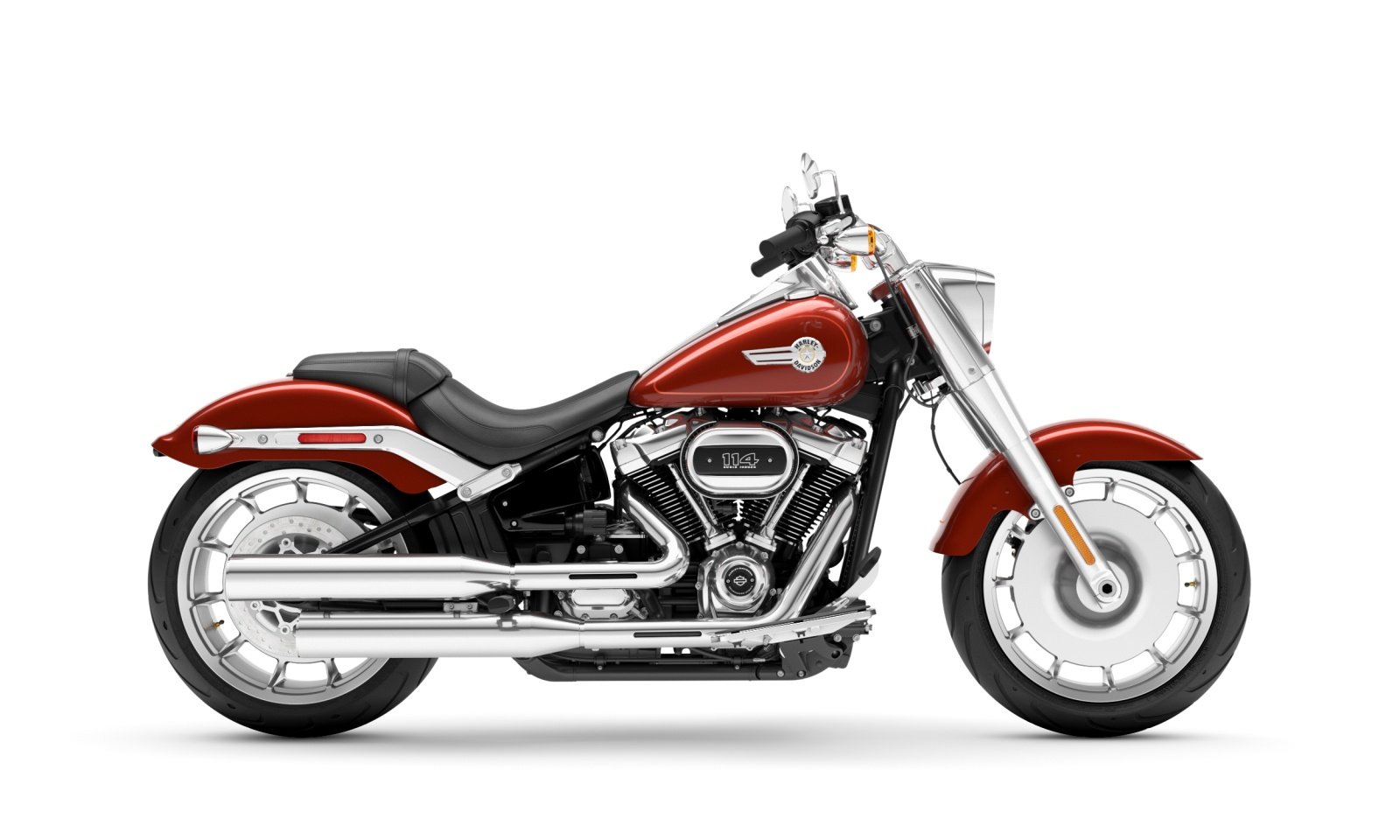

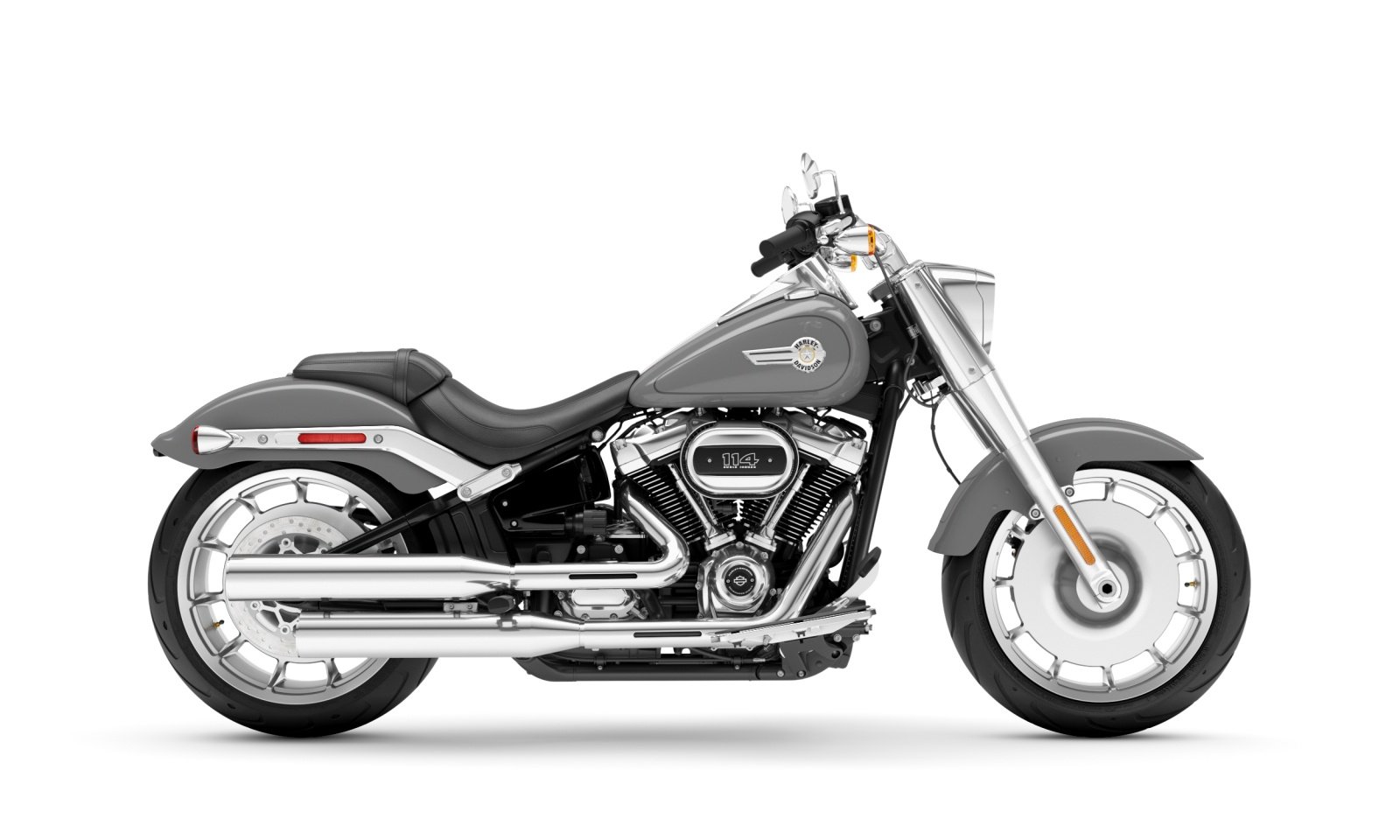

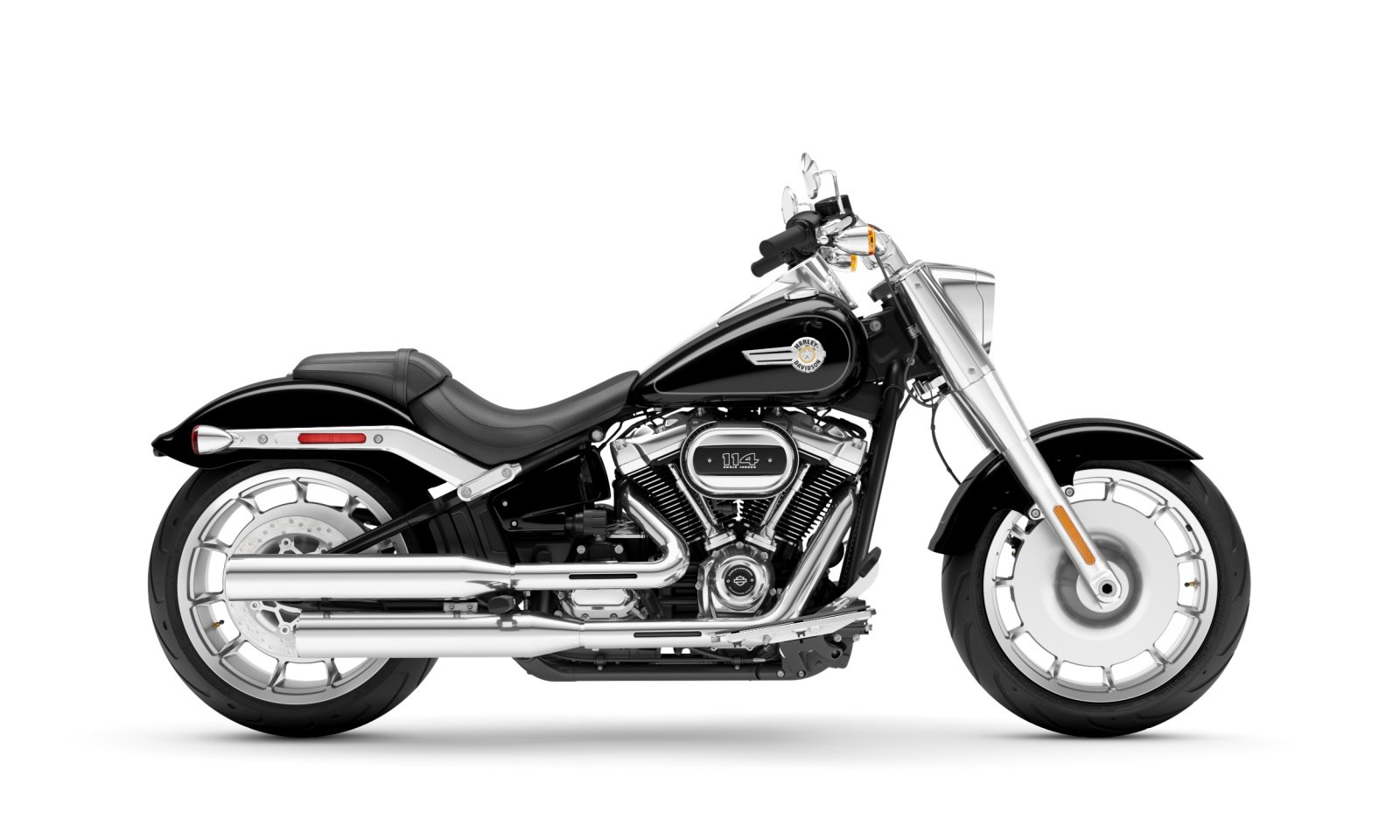

COLOR OPTIONS:
• Billiard Gray
• Vivid Black
• Red Rock
• Sharkskin Blue

Vehicles depicted may differ from vehicles manufactured and delivered. Specifications and prices listed may differ from specifications and prices of vehicles manufactured and delivered. All product descriptions (including depictions, specifications, dimensions, measurements, ratings and competitive comparisons) are based on available information at the time of publication. Although such descriptions are believed correct, errors and changes can occur and complete accuracy cannot be guaranteed. Harley-Davidson® may make changes at any time to prices and specifications, and may change or discontinue models, without notice and without incurring any obligation. Please check with your dealer for complete product details and the latest information.

DIMENSIONS
Length 93.3 in. (2,370 mm)
Seat Height, Laden 25.9 in. (658 mm)
Ground Clearance 4.5 in.
Rake 30
Trail 4.1 in. (104 mm)
Wheelbase 65.6 in. (1,665 mm)
Tire, Type Michelin® Scorcher 11, front and rear
Tires, Front Specification 160/60R18,70V,BW
Tires, Rear Specification 240/40R18,79V,BW
Fuel Capacity 5 gal. (18.9 l)
Oil Capacity (w/filter) 5 qt. (4.7 l)
Weight, As Shipped 671 lb. (304 kg)
Weight, In Running Order 699 lb. (317 kg)
ENGINE
Engine Type Milwaukee-Eight® 114
Bore x Stroke 4.016 in. (102 mm) x 4.5 in. (114.3 mm)
Displacement 114 cu in (1,868 cc)
Compression Ratio 10.5 to 1
Fuel System Electronic Sequential Port Fuel Injection (ESPFI)
Exhaust 2-into-2 staggered; catalyst in muffler
CHASSIS
Wheels, Optional Style Type N/A
Wheels, Front Type Machined, Lakester cast aluminum
Wheels, Rear Type Machined, Lakester cast aluminum
Brakes, Caliper Type - Front 4-piston fixed
Brakes, Caliper Type - Rear 2-piston floating
PERFORMANCE
Engine Torque Testing Method J1349
Engine Torque 119 ft-lb (161 Nm)
Engine Torque (rpm) 3,500
Horsepower 94 HP / 70 kW @ 4750 rpm
Lean Angle, Right (Deg.) 25.6
Lean Angle, Left (Deg.) 25.6
Fuel Economy Testing Method Estimated City/Hwy
Fuel Economy 47 mpg (5 l/100 km)
