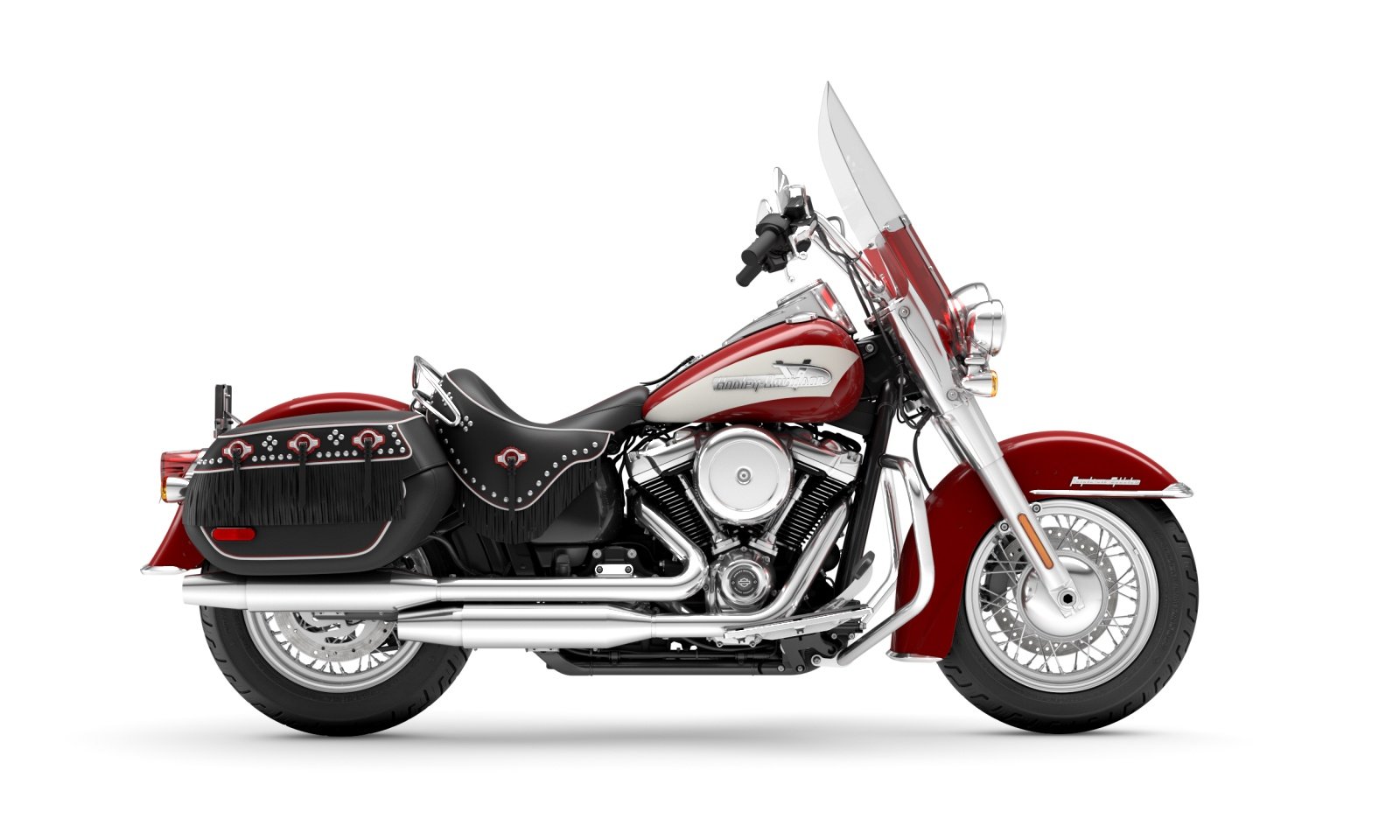

2024 Harley Davidson Hydra-Glide Revival - FLI
DIMENSIONS | |
---|---|
Length | 95.1 in. (2,415 mm) |
Overall Width | 36.6 in. (930 mm) |
Overall Height | 57.8 in. (1,468 mm) |
Seat Height, Laden | 26.1 in. (663 mm) |
Ground Clearance | 4.7 in. (118 mm) |
Rake | 30 |
Trail | 5.7 in. (145 mm) |
Wheelbase | 64.2 in. (1,630 mm) |
Tire, Type | Dunlop® Harley-Davidson Series, bias blackwall front and rear |
Tires, Front Specification | 130/90B16,73H,BW |
Tires, Rear Specification | 150/80B16,77H,BW |
Fuel Capacity | 5 gal. (18.9 l) |
Oil Capacity (w/filter) | 5 qt. (4.7 l) |
Weight, As Shipped | 711 lb. (322 kg) |
Weight, In Running Order | 742 lb. (336 kg) |
Luggage Capacity - Volume | 1.5 cu ft (0.043 m3) |
ENGINE | |
Engine Type | Milwaukee-Eight® 114 |
Bore x Stroke | 4.016 in. (102 mm) x 4.5 in. (114.3 mm) |
Displacement | 114 cu in (1,868 cc) |
Compression Ratio | 10.5 to 1 |
Fuel System | Electronic Sequential Port Fuel Injection (ESPFI) |
Air Cleaner | Screamin Eagle® round high-flow air cleaner with oiled-cotton filter element. |
Exhaust | 2-into-2 shorty dual; catalyst in muffler |
CHASSIS | |
Frame | Mild steel, tubular frame; rectangular section backbone; stamped, cast, and forged junctions; MIG welded; aluminum forged fender supports |
Swingarm | Mild steel, tubular sections, stamped x-member, forged axle junctions; MIG welded; removable belt spacer |
Wheels, Optional Style Type | N/A |
Wheels, Front Type | Chrome Steel Laced 16 in |
Wheels, Rear Type | Chrome Steel Laced 16 in |
Brakes, Caliper Type - Front | 4-piston fixed |
Brakes, Caliper Type - Rear | 2-piston floating |
PERFORMANCE | |
Engine Torque Testing Method | J1349 |
Engine Torque | 119 ft-lb (161 Nm) |
Engine Torque (rpm) | 3,000 |
Power (Hp/kW) | 94 HP / 70 kW @ 4750 rpm |
Lean Angle, Right (Deg.) | 27.4 |
Lean Angle, Left (Deg.) | 27.4 |
Fuel Economy Testing Method | Estimated City/Hwy |
Fuel Economy | 47 mpg (5 l/100 km) |
