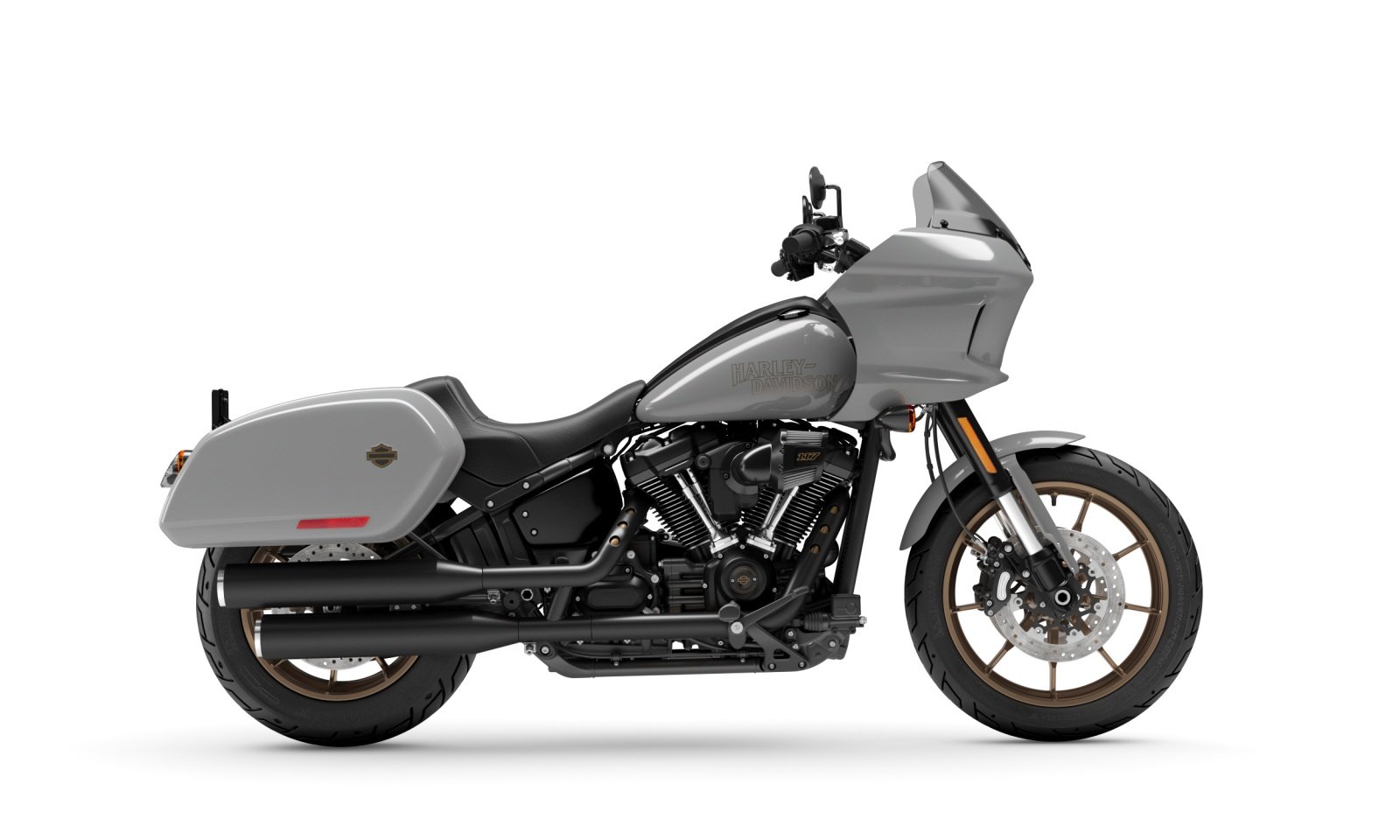

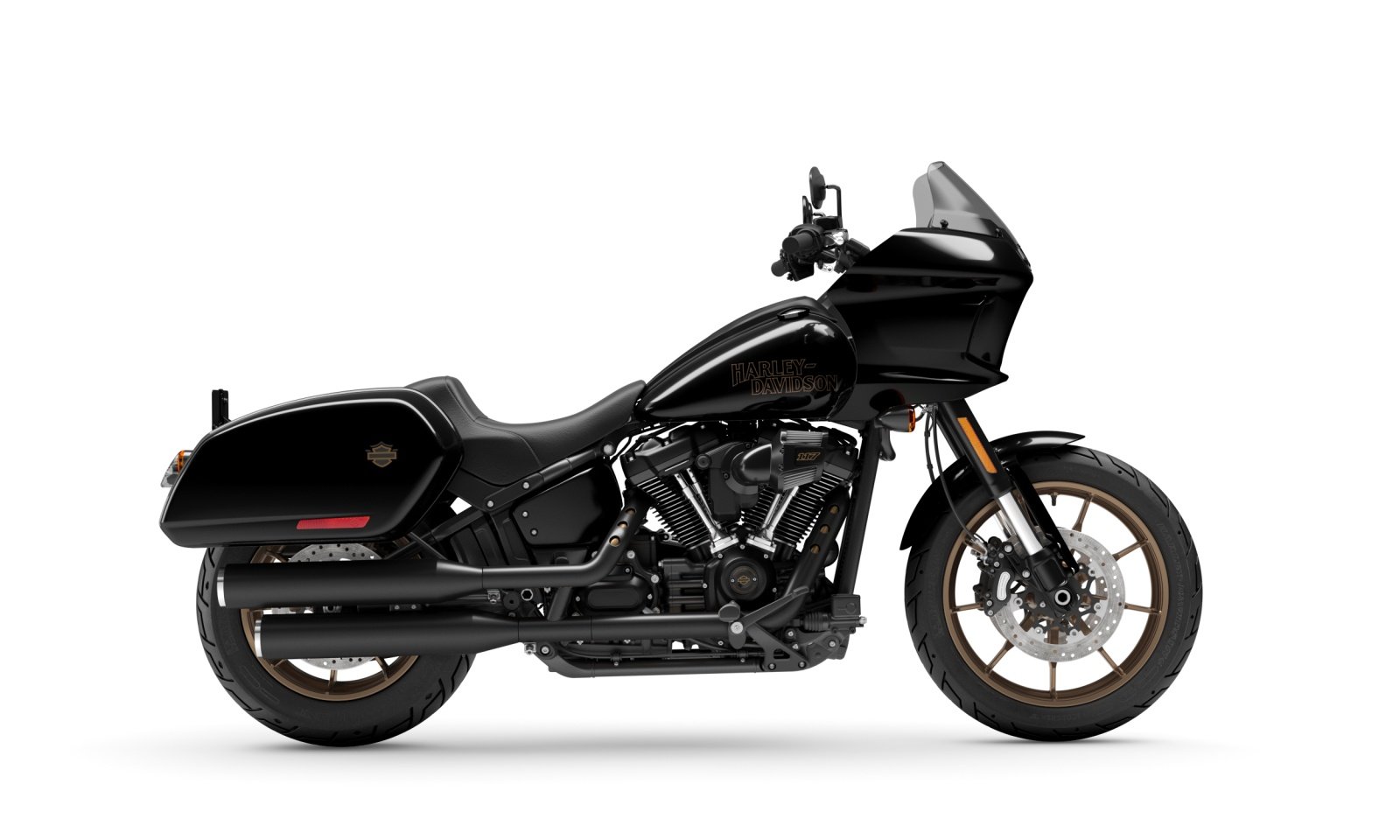

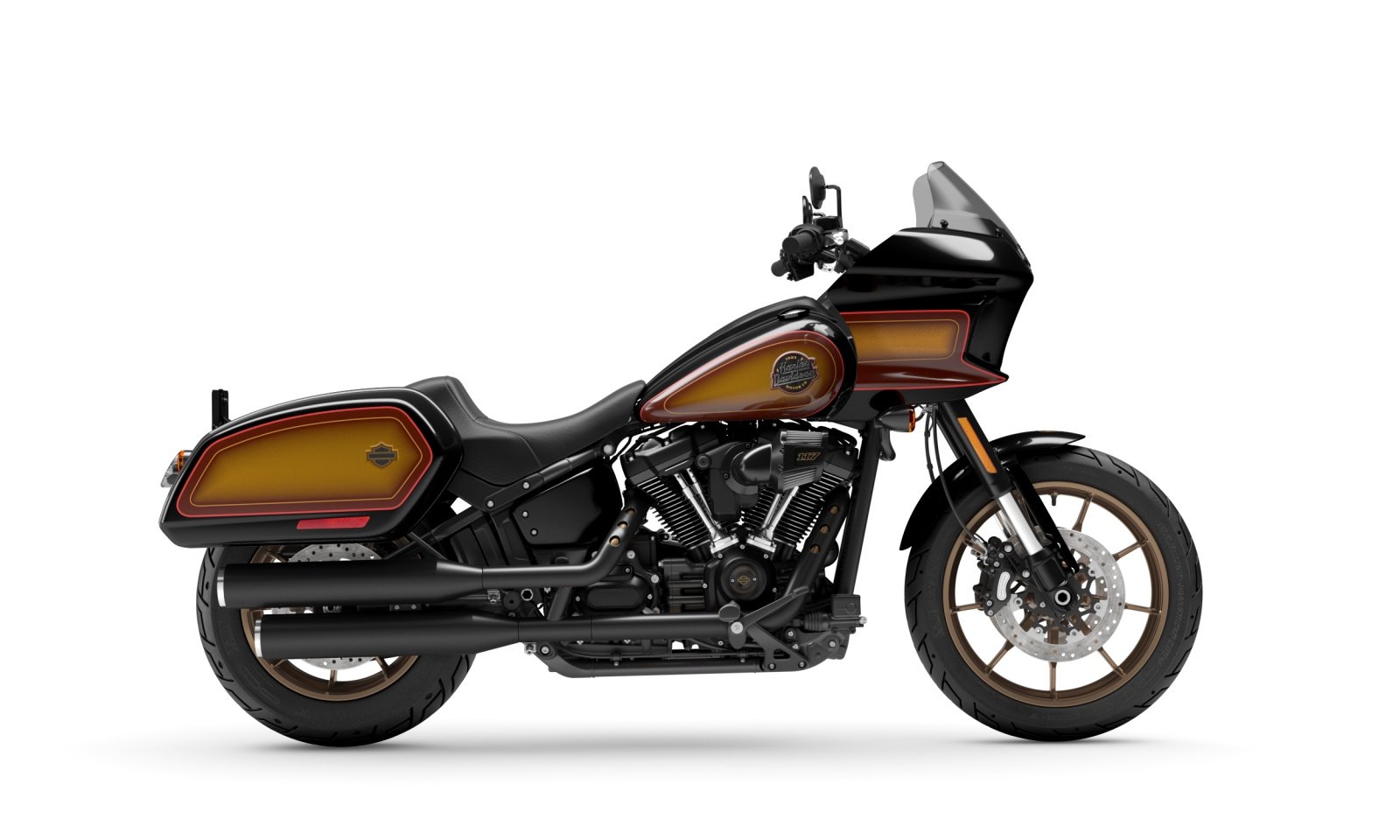

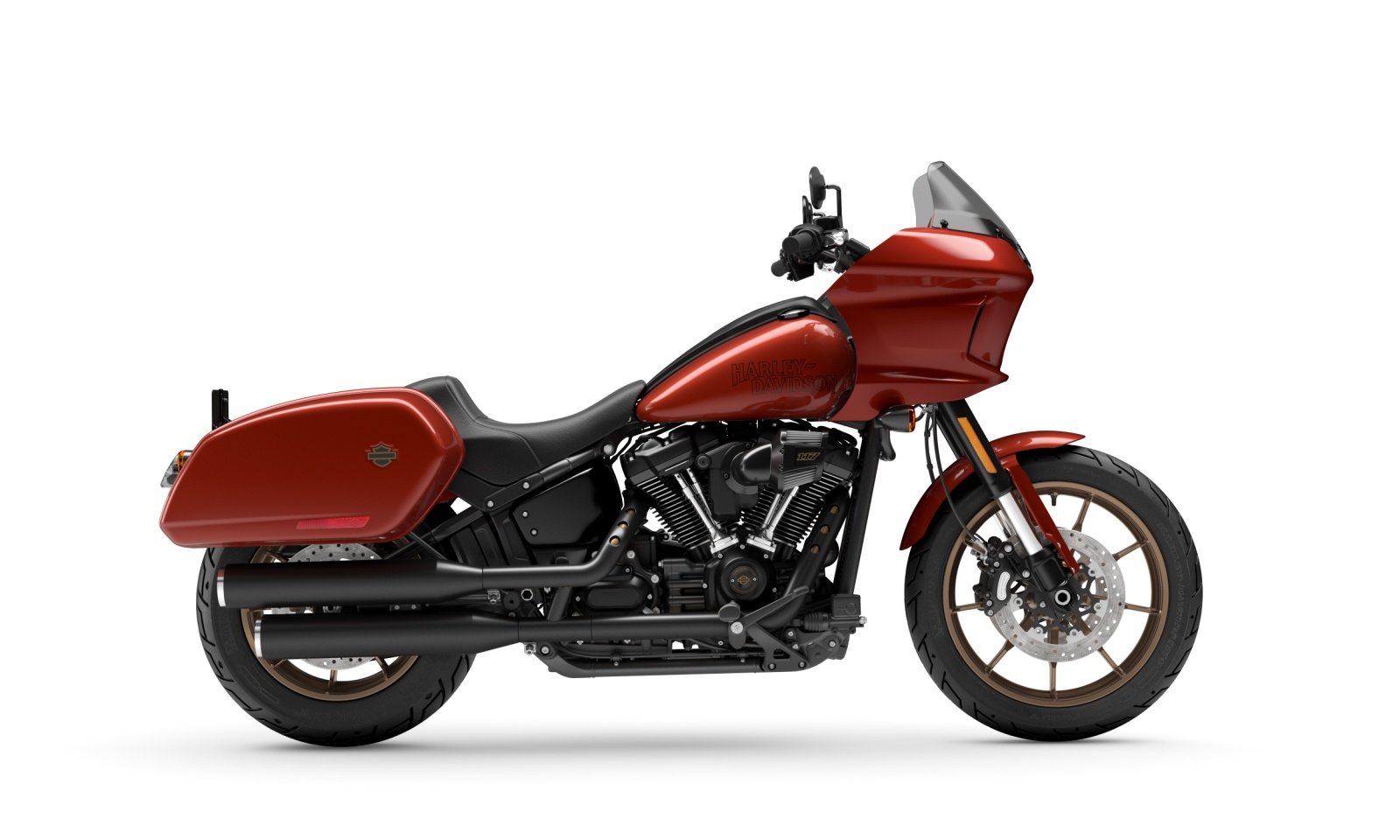

2024 Harley Davidson Low Rider® ST - FXLRST
DIMENSIONS | |
---|---|
Length | 93.1 in. (2,365 mm) |
Seat Height, Laden | 27 in. (686 mm) |
Ground Clerance | 5.9 in. (150 mm) |
Rake | 28 |
Trail | 5.7 in. (145 mm) |
Wheelbase | 63.6 in. (1,615 mm) |
Tire, Type | Michelin® Scorcher 31, front and rear |
Tires, Front Specification | 110/90B19,62H,BW |
Tires, Rear Specification | 180/70B16,77H,BW |
Fuel Capacity | 5 gal. (18.9 l) |
Oil Capacity (w/filter) | 5 qt. (4.7 l) |
Weight, As Shipped | 694 lb. (315 kg) |
Weight, In Running Order | 721 lb. (327 kg) |
Luggage Capacity - Volume | 1.9 cu ft (0.05 m3) |
ENGINE | |
Engine Type | Milwaukee-Eight® 117 |
Bore x Stroke | 4.075 in. (103.5 mm) x 4.5 in. (114.3 mm) |
Displacement | 117 cu in (1,923 cc) |
Compression Ratio | 10.2 to 1 |
Fuel System | Electronic Sequential Port Fuel Injection (ESPFI) |
Exhaust | 2-into-2 offset shotgun; catalyst in muffler |
CHASSIS | |
Frame | Mild steel, tubular frame; rectangular section backbone; stamped, cast, and forged junctions; MIG welded; aluminum forged fender supports |
Swingarm | Mild steel, tubular sections, stamped x-member, forged axle junctions; MIG welded; removable belt spacer |
Wheels, Optional Style Type | N/A |
Wheels, Front Type | Dark bronze, Radiate cast aluminum wheel, 19 in. (483 mm) |
Wheels, Rear Type | Dark bronze, Radiate cast aluminum wheel, 16 in. (406 mm) |
Brakes, Caliper Type - Front | 4-piston fixed |
Brakes, Caliper Type - Rear | 2-piston floating |
PERFORMANCE | |
Engine Torque Testing Method | J1349 |
Engine Torque | 125 ft-lb (169 Nm) |
Engine Torque (rpm) | 3,500 |
Power (Hp/kW) | 103 HP / 77 kW @ 4750 rpm |
Lean Angle, Right (Deg.) | 31.3 |
Lean Angle, Left (Deg.) | 31.3 |
Fuel Economy Testing Method | Estimated City/Hwy |
Fuel Economy | 47 mpg (5 l/100 km) |
