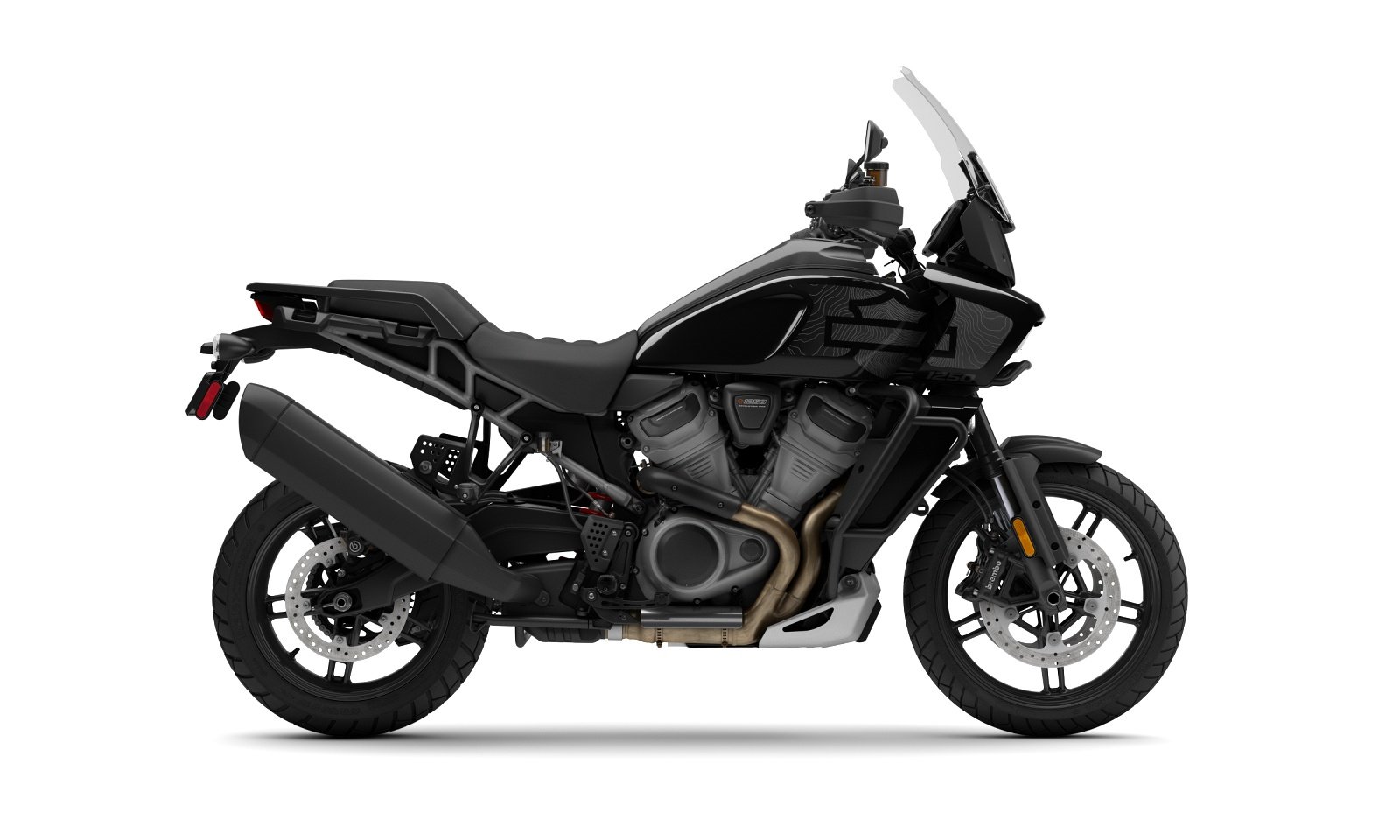

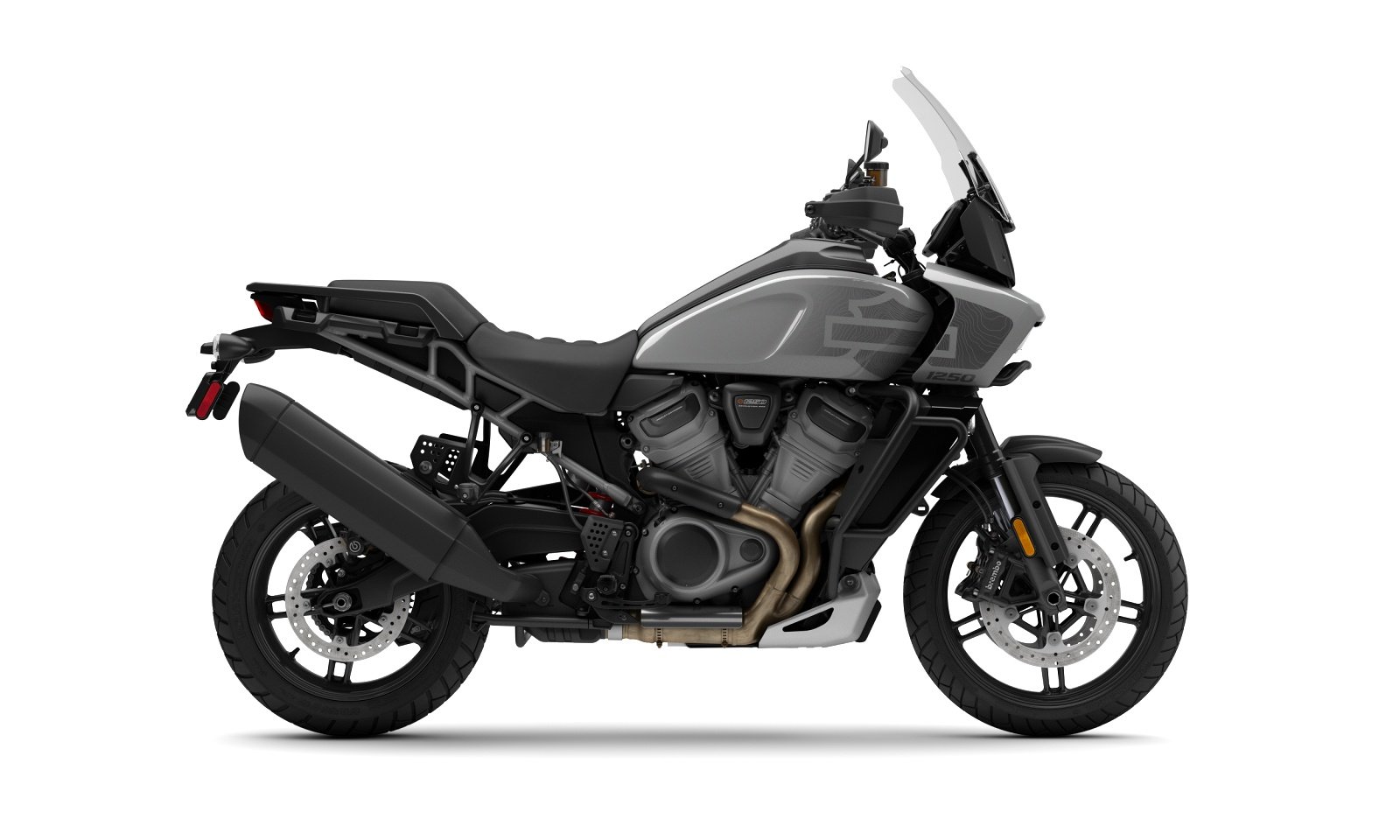

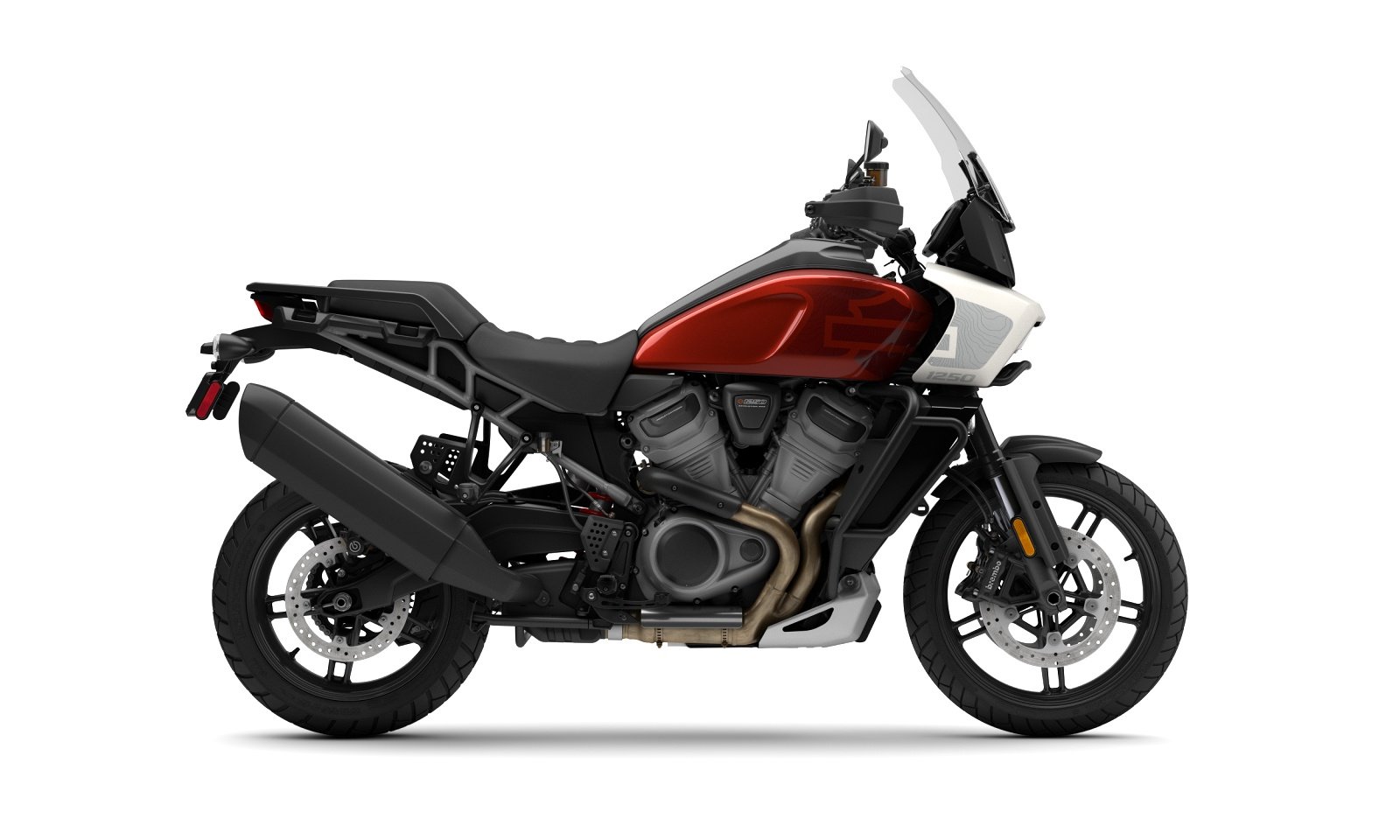

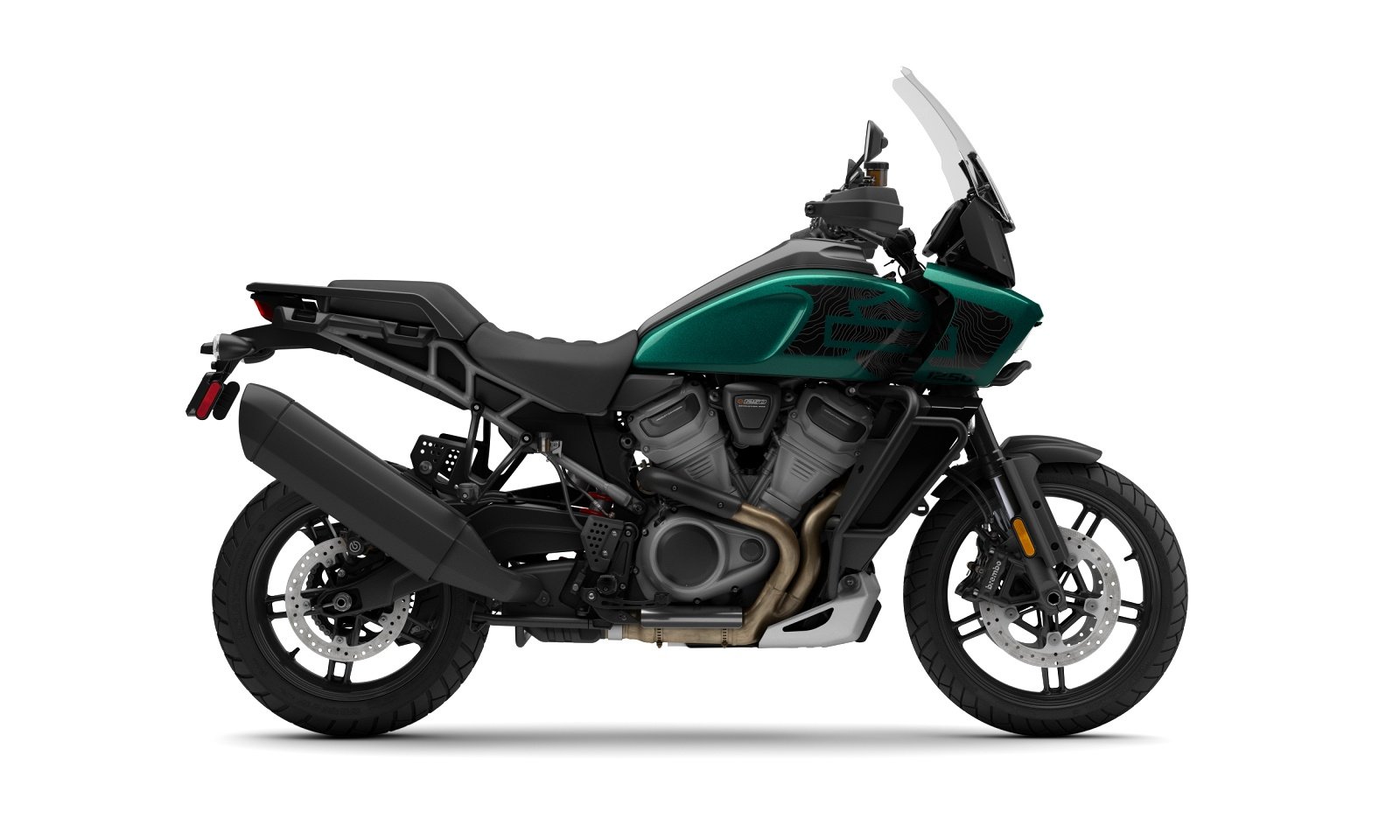

2024 Harley Davidson Pan America™ 1250 Special - RA1250S
DIMENSIONS | |
---|---|
Length | 89.4 in. (2,270 mm) |
Seat Height, Laden | N/A |
Seat Height, Unladen | N/A |
Rake | 25 |
Trail | 4.3 in. (108 mm) |
Wheelbase | 62.4 in. (1,585 mm) |
Tires, Front Specification | 120/70R19 60V |
Tires, Rear Specification | 170/60R17 72V |
Fuel Capacity | 5.6 gal. (21.2 l) |
Oil Capacity (w/filter) | 4.75 qt. (4.5 l) |
Weight, As Shipped | 534 lb. (242 kg) |
Weight, In Running Order | 569 lb. (258 kg) |
ENGINE | |
Engine Type | Revolution® Max 1250 |
Bore x Stroke | 4.134 in. (105 mm) x 2.846 in. (72.3 mm) |
Displacement | 76.4 cu in (1,252 cc) |
Compression Ratio | 13 to 1 |
Fuel System | Electronic Sequential Port Fuel Injection (ESPFI) |
Exhaust | 2-into-1-into-1; catalyst in header |
CHASSIS | |
Wheels, Optional Style Type | Annodized aluminum tubeless laced |
Wheels, Front Type | Aluminum cast, satin black |
Wheels, Rear Type | Aluminum cast, satin black |
Brakes, Caliper Type - Front | Radially mounted, monoblock, 4-piston caliper |
Brakes, Caliper Type - Rear | Floating, single piston caliper |
PERFORMANCE | |
Engine Torque Testing Method | J1349 |
Engine Torque | 94 ft-lb (127 Nm) |
Engine Torque (rpm) | 6,750 |
Lean Angle, Right (Deg.) | 42 |
Lean Angle, Left (Deg.) | 42 |
Fuel Economy Testing Method | Estimated City/Hwy |
Fuel Economy | 46 mpg (5.1 l/100 km) |
