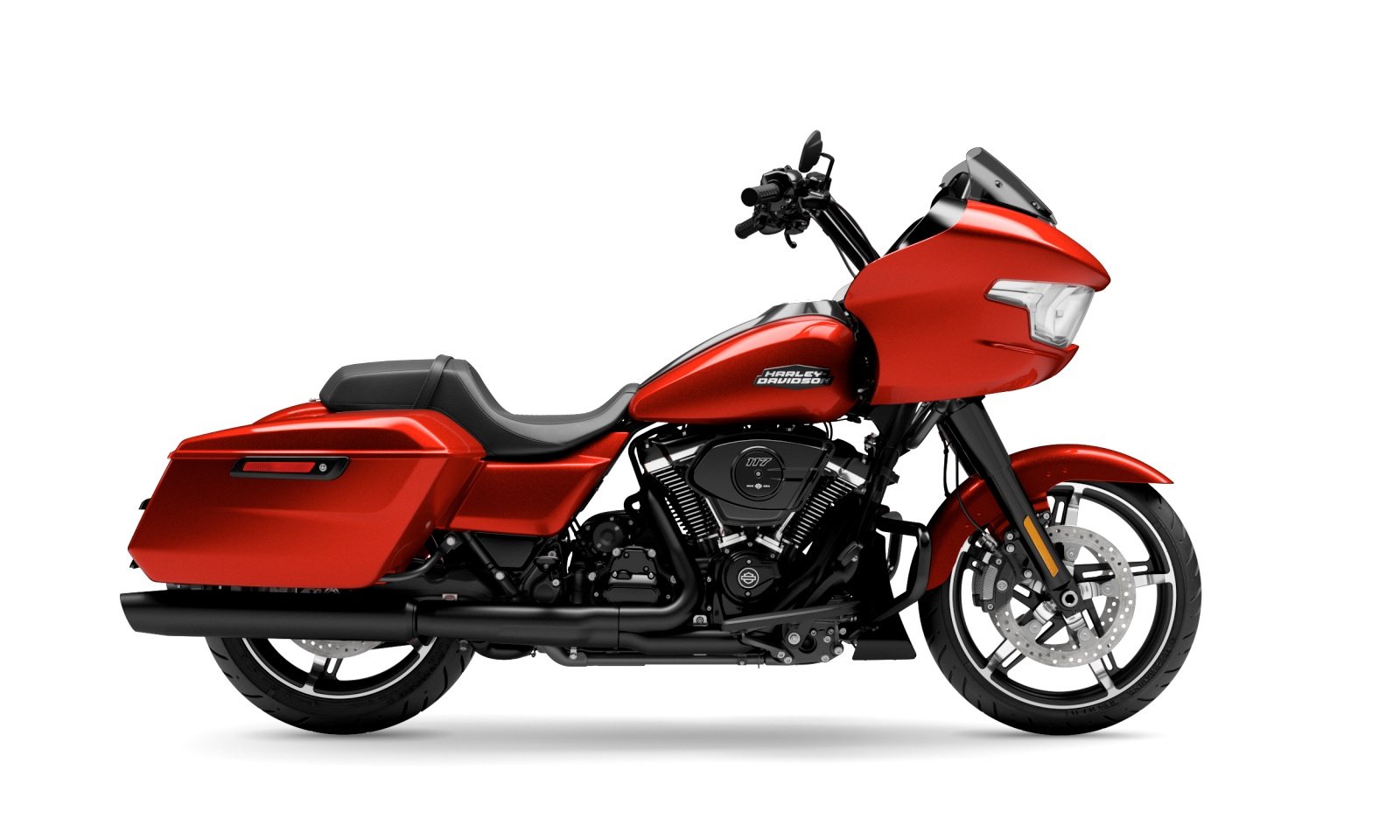

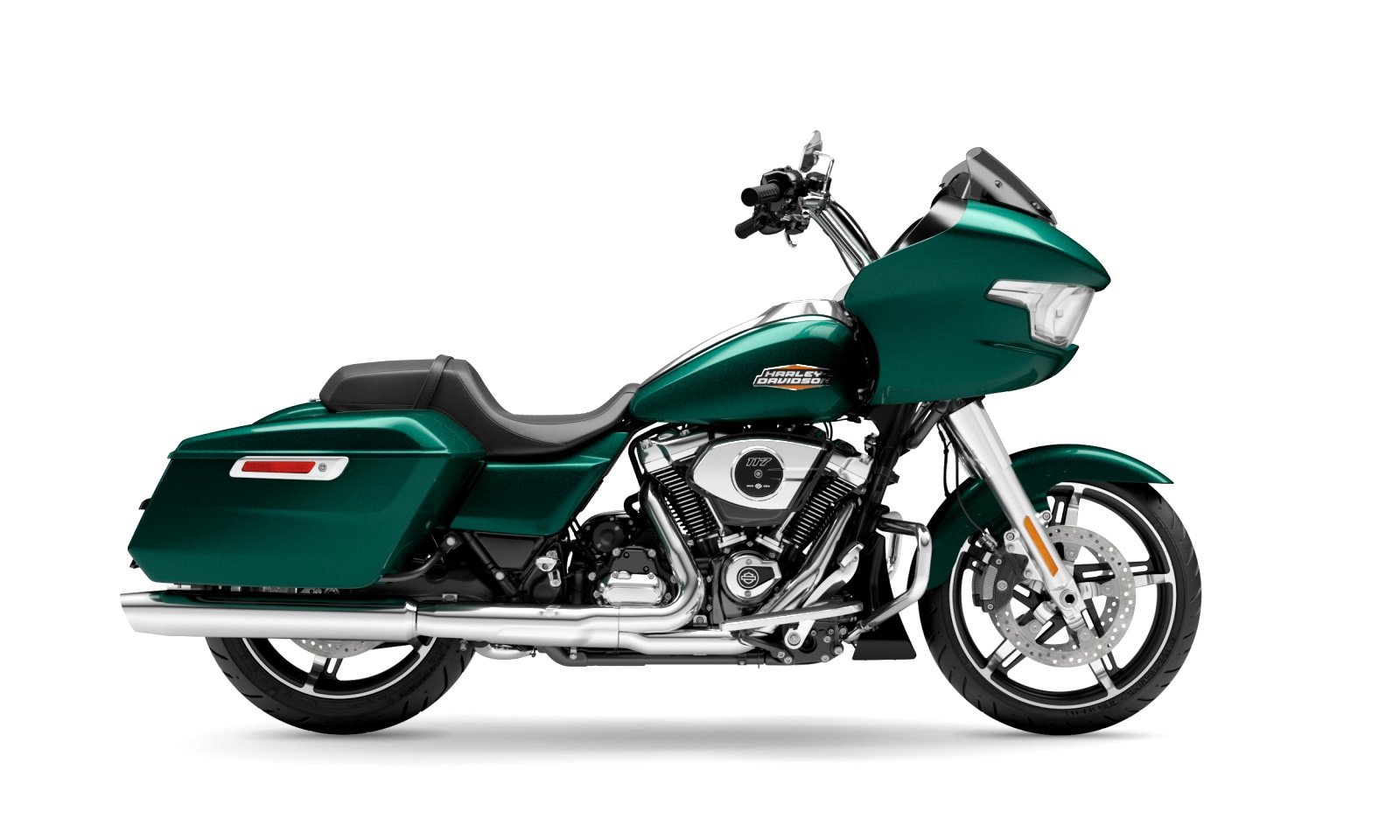

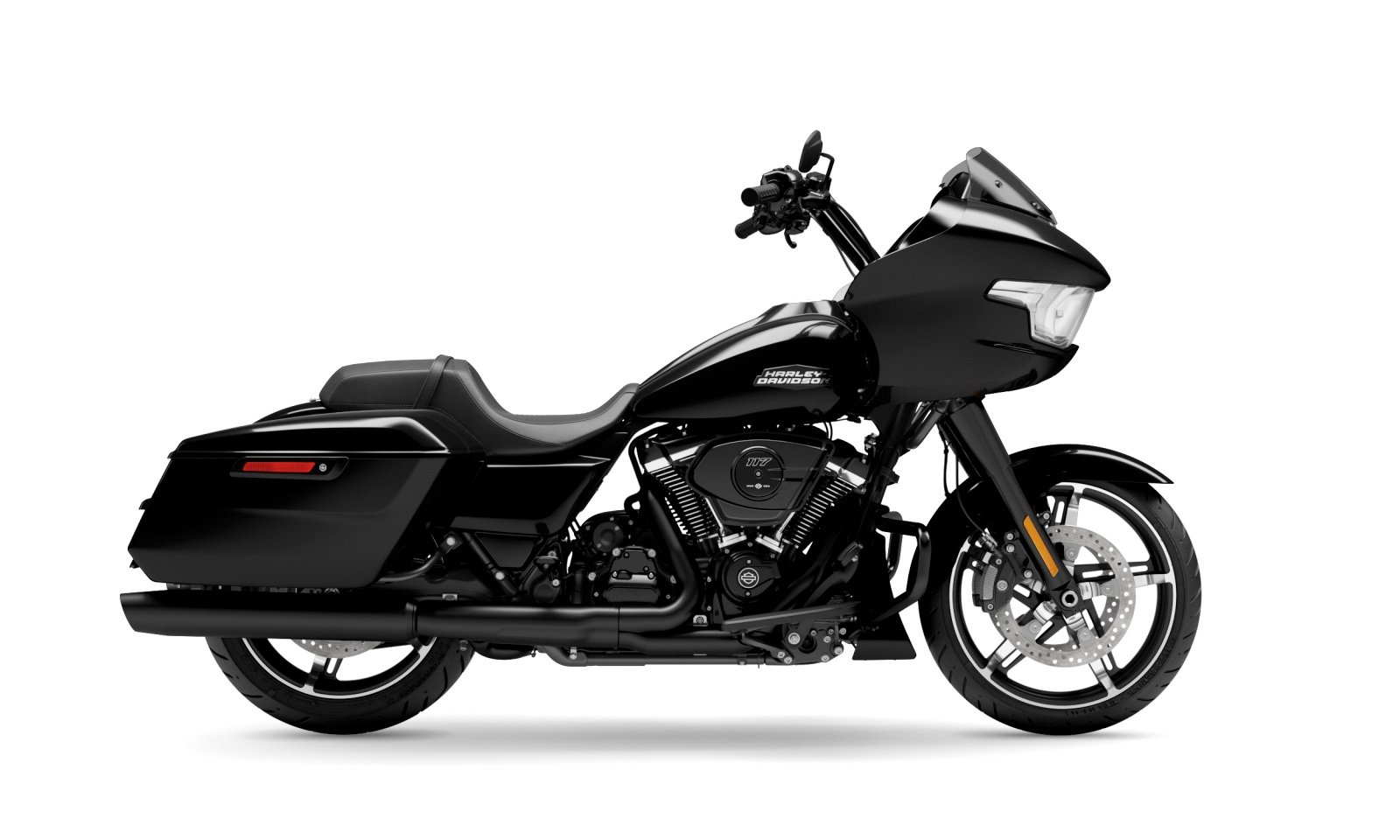

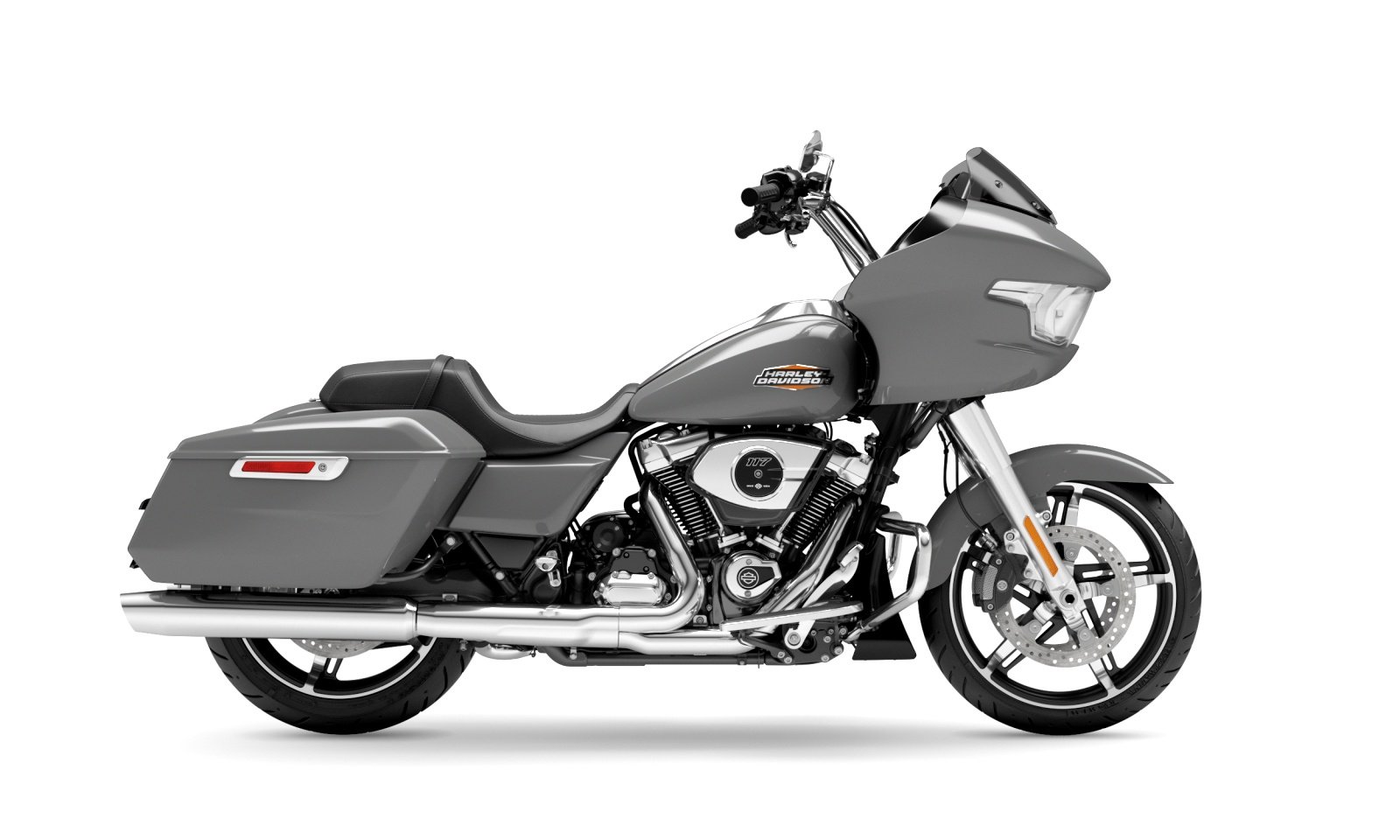

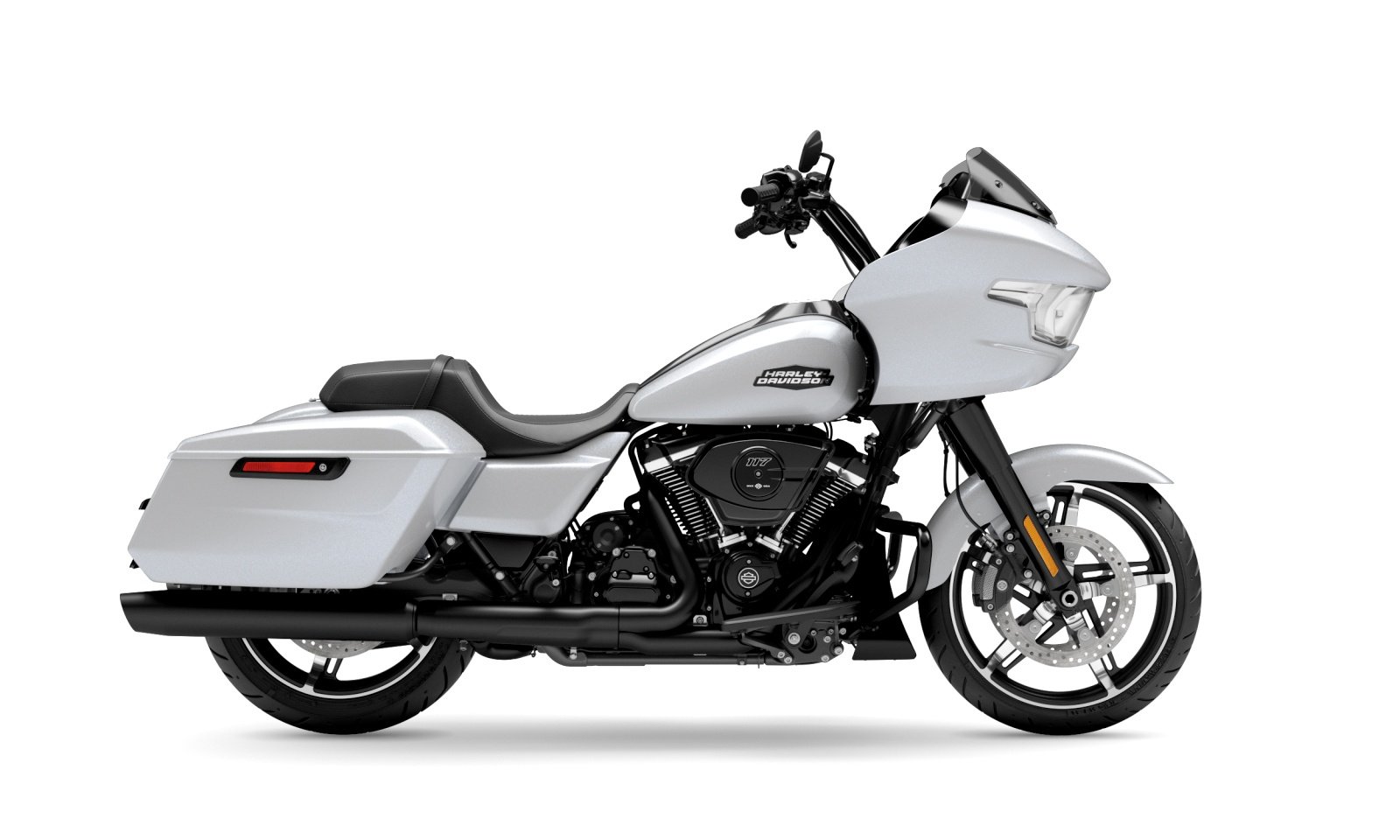

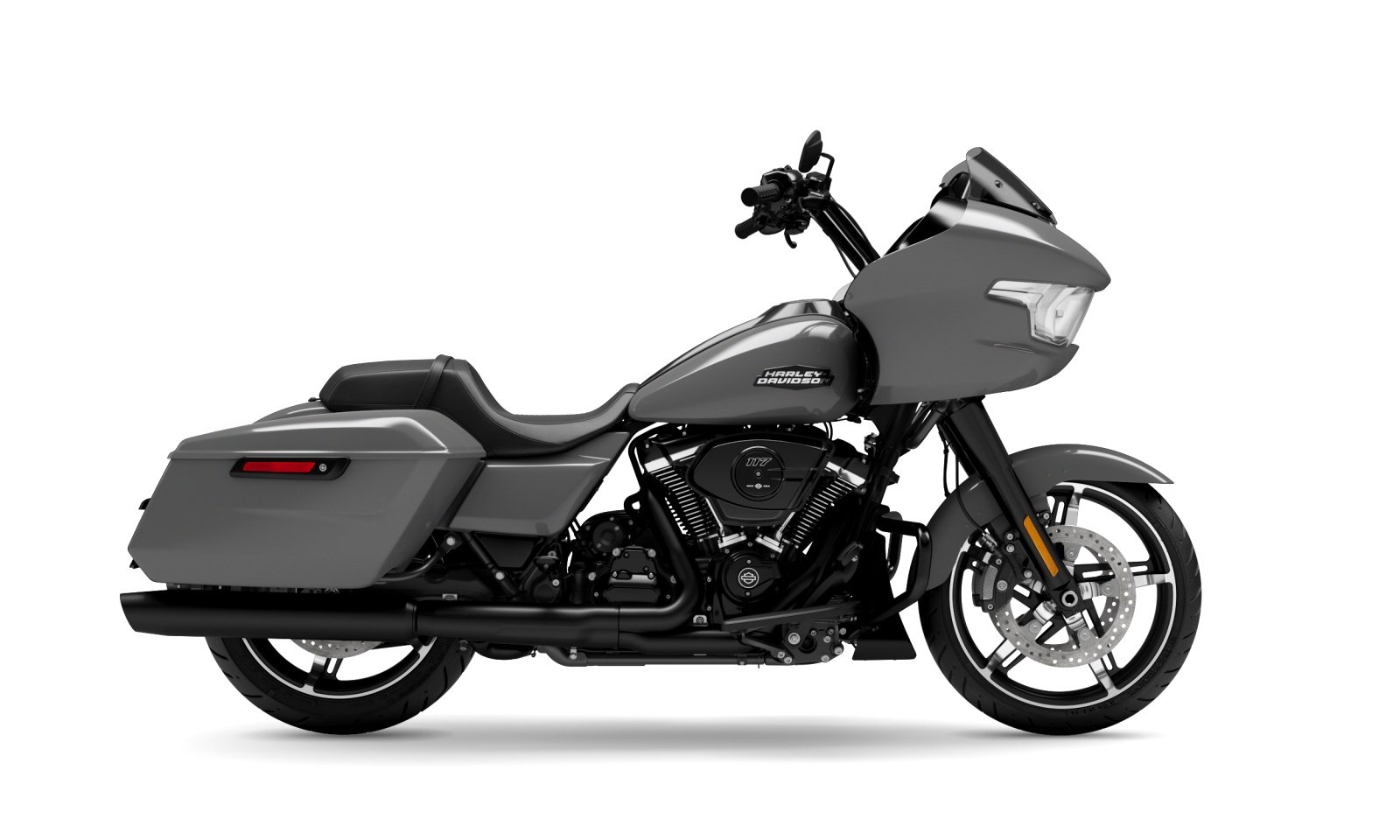

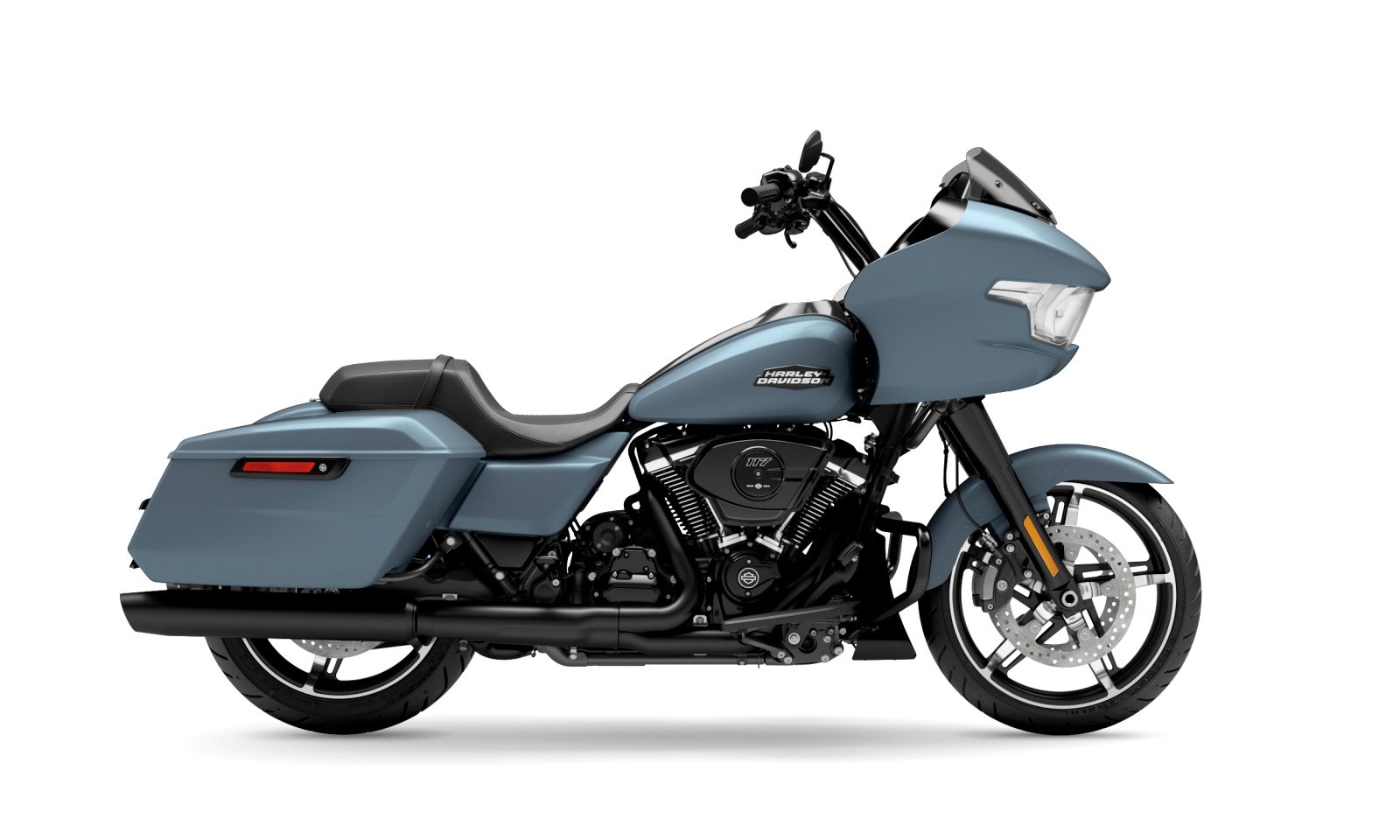

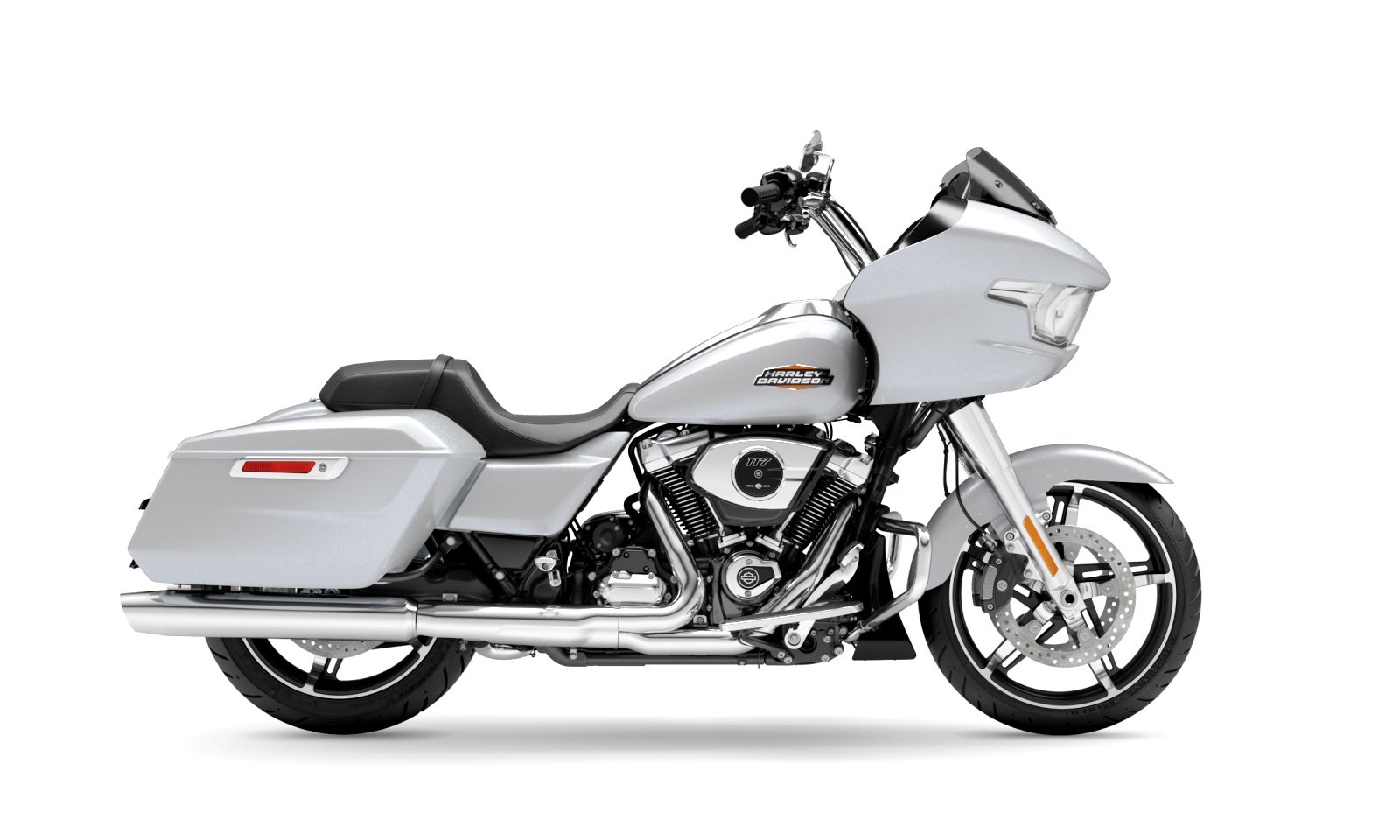

2024 Harley Davidson Road Glide® - FLTRX
DIMENSIONS | |
---|---|
Length | 95.7 in. (2,430 mm) |
Overall Width | 37.2 in. (945 mm) |
Overall Height | 51.8 in. (1,315 mm) |
Seat Height, Laden | 26.6 in. (675 mm) |
Seat Height, Unladen | 28.3 in. (720 mm) |
Rake | 26 |
Trail | 6.8 in. (173 mm) |
Wheelbase | 64 in. (1,625 mm) |
Tires, Type | Dunlop® Harley-Davidson Series, bias blackwall front and rear |
Tires, Front Specification | 130/60B19 61H |
Tires, Rear Specification | 180/55B18 M/C 80H |
Fuel Capacity | 6 gal. (22.7 l) |
Oil Capacity (w/filter) | 5 qt. (4.7 l) |
Weight, As Shipped | 802 lb. (364 kg) |
Weight, In Running Order | 838 lb. (380 kg) |
ENGINE | |
Engine Type | Milwaukee-Eight® 117 |
Bore x Stroke | 4.075 in. (103.5 mm) x 4.5 in. (114.3 mm) |
Displacement | 117 cu in (1,923 cc) |
Compression Ratio | 10.3 to 1 |
Fuel System | Electronic Sequential Port Fuel Injection (ESPFI) |
Exhaust | 2-1-2 dual exhaust with tapered mufflers |
CHASSIS | |
Frame | Mild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame with forged fender supports; MIG welded. |
Swingarm | Mild steel; two-piece drawn and welded section; forged junctions; MIG welded. |
Front Fork | 49mm (1.9 in) Dual Bending Valve |
Rear Shocks | 3 in. (76.2 mm) Dual Outboard Emulsion with Preload Adjustability |
Wheels, Optional Style Type | N/A |
Wheels, Type | Cast Aluminum |
Brakes, Caliper Type | 32 mm (1.3 in.), 4-piston fixed dual axially mounted front, and single axially mounted rear |
Brakes, Rotor Type | Dual floating rotors (front), fixed rotor (rear) |
Brakes, Anti-Lock Braking System (ABS) | Standard |
PERFORMANCE | |
Engine Torque Testing Method | J1349 |
Engine Torque | 130 ft-lb (176 Nm) |
Engine Torque (rpm) | 3,250 |
Engine Power (Hp/kW) | 105 HP / 78 kW @ 4600 rpm |
Lean Angle, Right (Deg.) | 32 |
Lean Angle, Left (Deg.) | 32 |
Fuel Economy Testing Method | Estimated City/Hwy |
Fuel Economy | 44 mpg (5.3 l/100 km) |
