2024 Harley Davidson Sportster® S - RH1250S

ALWAYS PERFORM, NEVER CONFORM.

ALWAYS PERFORM, NEVER CONFORM.

The "Sport' was a category created by the venerable Sportster®. Iconic design, authentic sound. These are bikes built for carving mountain roads, and blasting through city streets. Building on a legacy born in 1957, the sophisticatedly brutish Harley-Davidson® Sportster S advances traits that everyone loved in its predecessors: wickedly quick, impressively nimble, and way too much fun to ride.

FEATURES:
• Stretched riding position.
• Forward foot controls.
• Low height.
• Rider safety enhancements available.

REVOLUTION® MAX 1250T ENGINE
Featuring double-overhead camshafts and variable valve timing, the Revolution Max 1250T is a liquid-cooled powertrain designed to give you a strong burst of power when you want it and help you stay in control while riding.

RIDER TECHNOLOGY
Choose from three pre-programmed Ride Modes--Sport, Road, or Rain--or create your own custom mode with specific settings for power delivery, engine braking, and cornering.

HIGH-MOUNTED EXHAUST
Inspired by the glory days of H-D® flat-track racing, the pipes are crafted from corrosion-resistant, 304-series stainless steel and engineered to deflect exhaust heat away from the rider's legs and the bike's tail section.

INSTRUMENTATION
A Bluetooth®-equipped, four-inch-round, thin-film transistor display shows digital gauges, indicators, ride modes, and turn-by-turn navigation when paired with the Harley-Davidson mobile app.

CHASSIS
The Revolution Max 1250T is a structural component of the motorcycle chassis, which significantly reduces overall weight, lowers the center of gravity, and improves handling.

COLOR OPTIONS:

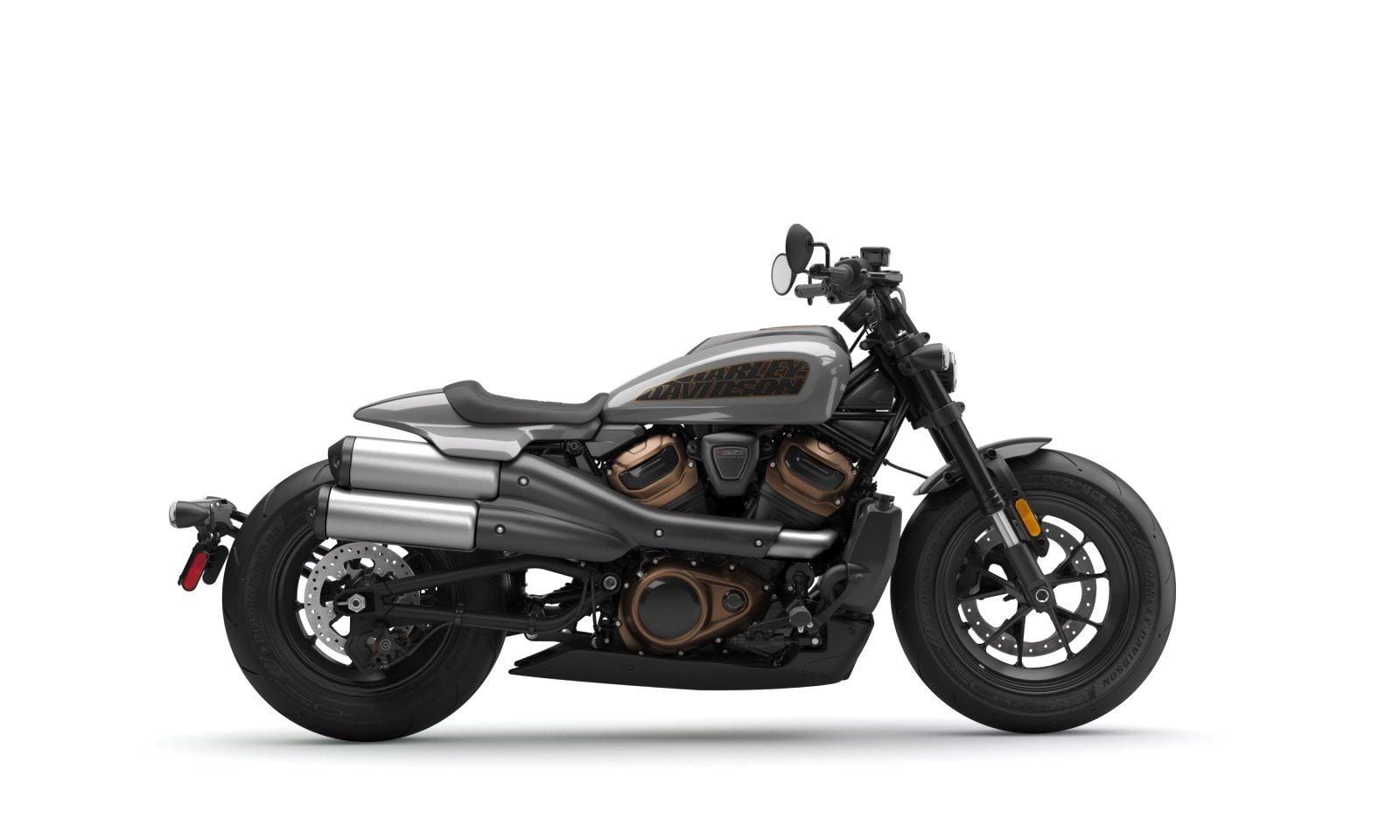

• Billiard Gray

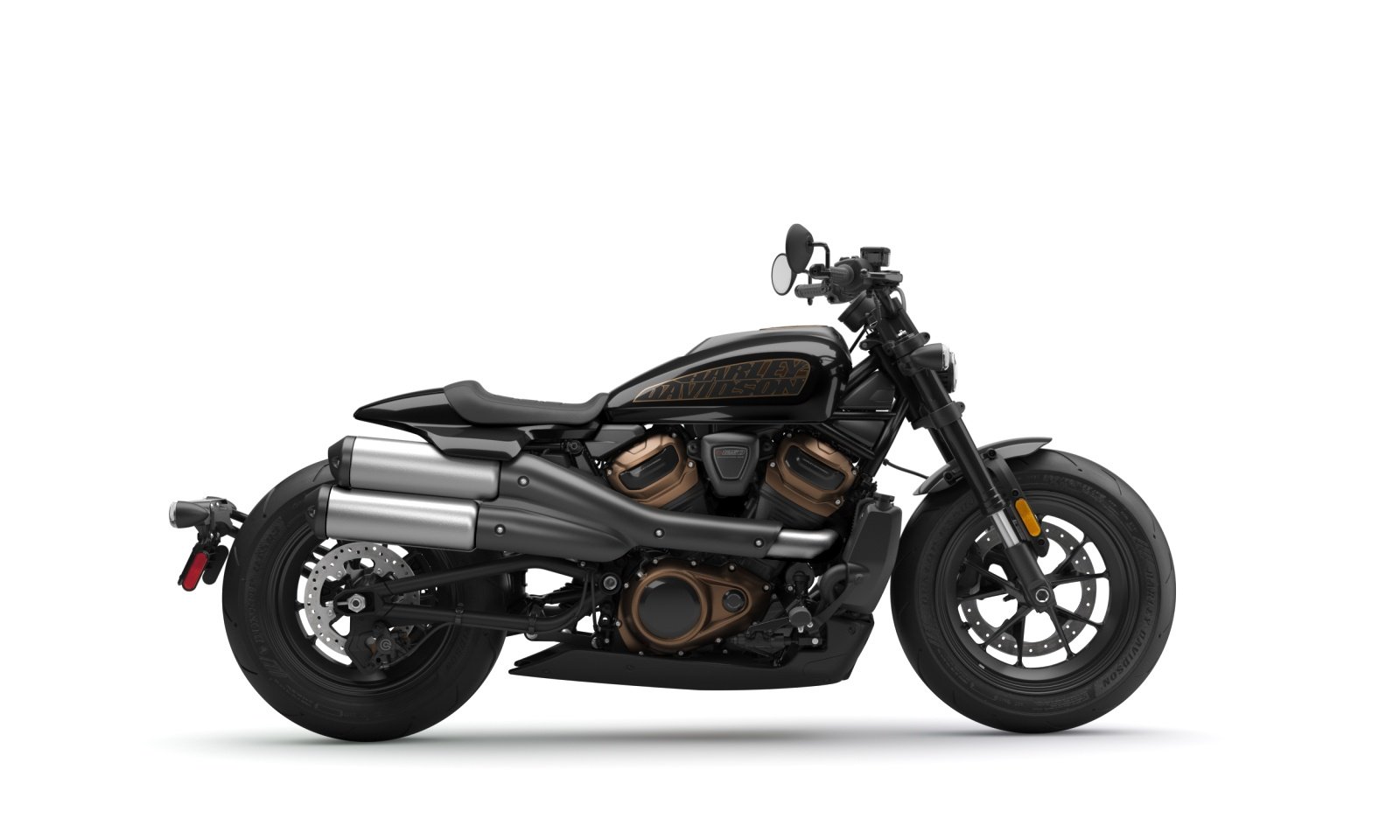

• Vivid Black
• Red Rock
• Sharkskin Blue

Vehicles depicted may differ from vehicles manufactured and delivered. Specifications and prices listed may differ from specifications and prices of vehicles manufactured and delivered. All product descriptions (including depictions, specifications, dimensions, measurements, ratings and competitive comparisons) are based on available information at the time of publication. Although such descriptions are believed correct, errors and changes can occur and complete accuracy cannot be guaranteed. Harley-Davidson® may make changes at any time to prices and specifications, and may change or discontinue models, without notice and without incurring any obligation. Please check with your dealer for complete product details and the latest information.

DIMENSIONS
Length 89.4 in. (2,270 mm)
Seat Height, Laden 28.9 in. (734 mm)
Ground Clearance 3.5 in.
Rake 30
Trail 5.8 in. (148 mm)
Wheelbase 59.8 in. (1,520 mm)
Tires, Type Dunlop® Harley-Davidson Series, radial
Tires, Front Specification 160/70R17 73V
Tires, Rear Specification 180/70R16 77V
Fuel Capacity 3.1 gal. (11.8 l)
Oil Capacity (w/filter) 4.75 qt. (4.5 l)
Weight, As Shipped 487 lb. (221 kg)
Weight, In Running Order 502 lb. (228 kg)
ENGINE
Engine Type Revolution® Max 1250T
Bore x Stroke 4.134 in. (105 mm) x 2.846 in. (72.3 mm)
Displacement 76.4 cu in (1,252 cc)
Compression Ratio 12.0 to 1
Fuel System Electronic Sequential Port Fuel Injection (ESPFI)
Exhaust 2-into-1-into-2; catalyst in muffler
CHASSIS
Wheels, Optional Style Type N/A
Wheels, Front Type Aluminum cast, satin black
Wheels, Rear Type Aluminum cast, satin black
Brakes, Caliper Type - Front Radially mounted, monoblock, 4-piston caliper
Brakes, Caliper Type - Rear Floating, single piston caliper
PERFORMANCE
Engine Torque Testing Method J1349
Engine Torque 93 ft-lb
Engine Torque (rpm) 6000
Horsepower 121 HP / 90 kW @ 7500 rpm
Lean Angle, Right (Deg.) 34
Lean Angle, Left (Deg.) 34
Fuel Economy Testing Method Estimated City/Hwy
Fuel Economy 49 mpg (4.8 l/100 km)
