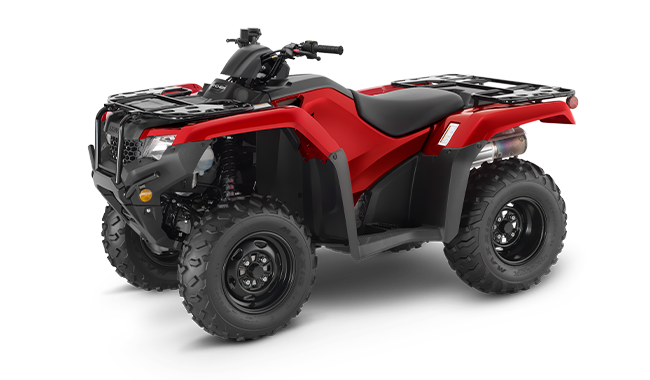

2024 Honda FOURTRAX RANCHER - RS

$6,299

THERE’S A RANCHER THAT’S PERFECT FOR YOU.

THERE'S A RANCHER THAT'S PERFECT FOR YOU.

Everyone knows our line of Honda Rancher all-terrain vehicles are legendary for their long life, can-do toughness and Honda reliability. And maybe best of all, with eight models in our lineup, you can pick which model is a perfect match for your needs and your budget, with features like our automatic DCT transmission, swingarm- or Independent Rear Suspension, Electric Power Steering, Electric Shifting, and more. One thing's for sure, though: when you pick a Honda Rancher, you can't make a bad choice.

SEMI-DRY-SUMP ENGINE DESIGN
Compact and lighter-weight, the Rancher's overhead-valve, semi-dry-sump design creates an engine that's shorter from top to bottom. That returns two big benefits: it enhances handling by lowering the engine's center of gravity, and it also allows for better ground clearance. 

TRAXLOK® SELECTABLE 2WD/4WD
Our rock-solid system lets you choose either 2WD or 4WD instantly, giving you the freedom to choose between lighter steering (in 2WD) and maximizing available traction (in 4WD) when you need it most. 

WIDE FRONT DRIVESHAFT GUARDS
Designed to add even more coverage to the Rancher's front axles and outboard CV joints, the driveshaft guards are another example of how Honda engineers sweat the small details to give you one of the best ATVs on the planet. 

PROGRAMMED FUEL INJECTION
Being able to count on crisp performance and starting under any conditions is a must for anyone who depends on their ATV. Thanks to Honda Programmed Fuel Injection (PGM-FI)--featuring a 34mm throttle body, 12-hole injector, and an oxygen sensor that allows the fuel mapping to instantaneously adjust to any riding condition--the Rancher not only ensures trouble-free operation in the cold and at varying altitudes, it reduces emissions and enhances fuel efficiency. 

FRONT AND REAR CARGO RACKS
The Rancher's racks feature strong steel construction and a large flat area. Better still, they're designed so it's easy to attach and remove cargo boxes and other accessories in our Honda Pro-Connect™ line, adding to your Rancher's versatility. 

1.9-LITER FRONT UTILITY BOX
The perfect size for small items you want to access quickly--like a cell phone, GPS, or a spare pair of gloves. 

COLOR OPTIONS:
• Avenger Red
• Black Forest Green

WARRANTY:
• One year, transferable, limited

Important Safety Information: Recommended for riders 16 years of age and older. Honda recommends that all ATV riders take a training course and read their owner's manual thoroughly.

All figures are preliminary and subject to change. Images, where available, are presented as reasonable facsimiles of the offered unit and/or manufacturer stock images. Non-standard options or features may be represented. No guarantee of availability or inclusion of displayed options should be inferred; contact dealer for more details. ©2024 American Honda Motor Co., Inc. -- Powersports Division.

ENGINE
Engine Type 420cc longitudinally mounted liquid-cooled wet-sump single-cylinder four-stroke
Bore x Stroke 86.5mm x 71.5mm
Induction Programmed Fuel Injection (PGM-FI); 34mm throttle body
Starter Electric with optional auxiliary recoil
Compression Ratio 9.9 to 1
DRIVETRAIN
Clutch Automatic
Transmission Five-speed manual with reverse
Driveline Direct rear driveshaft
CHASSIS/ SUSPENSION/ BRAKES
Front Suspension Independent double-wishbone; 6.7-inch travel
Rear Suspension Swingarm with single shock; 6.7-inch travel
Front Brake Dual 190mm discs
Rear Brake 160mm sealed mechanical drum
Front Tire 24 x 8-12
Rear Tire 24 x 10-11
DIMENSIONS
Overall L x W x H 82.8 inches x 47.4 inches x 46.2 inches
Wheelbase 50.0 inches
Seat Height 33.7 inches
Ground Clearance 7.1 inches
Curb Weight 580 pounds (includes all standard equipment, required fluids and a full tank of fuel)
Fuel Capacity 3.9 gallons, including 1.3-gallon reserve
Turning Radius 9.2 feet
Front Rack Capacity 66 pounds
Rear Rack Capacity 133 pounds
