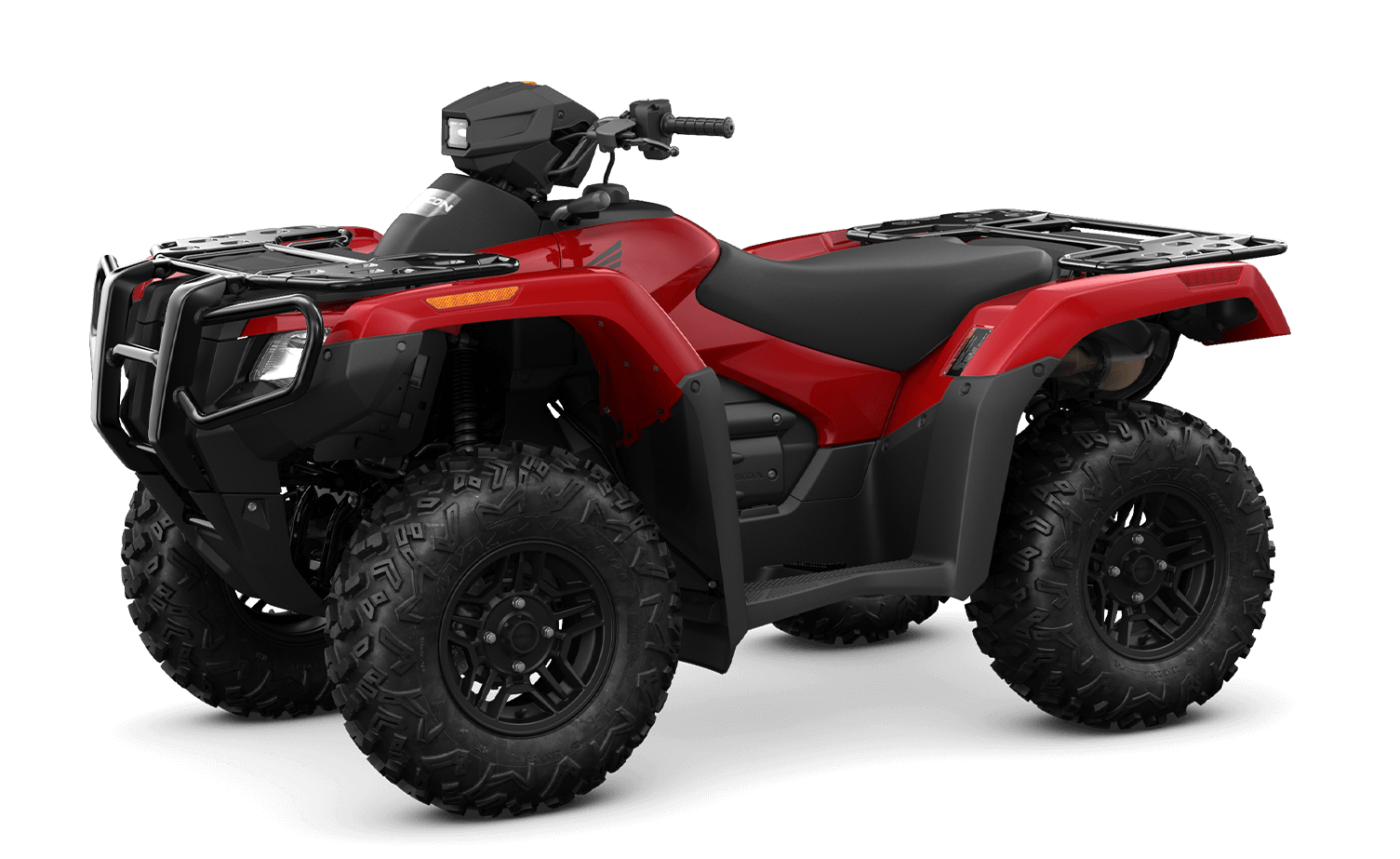

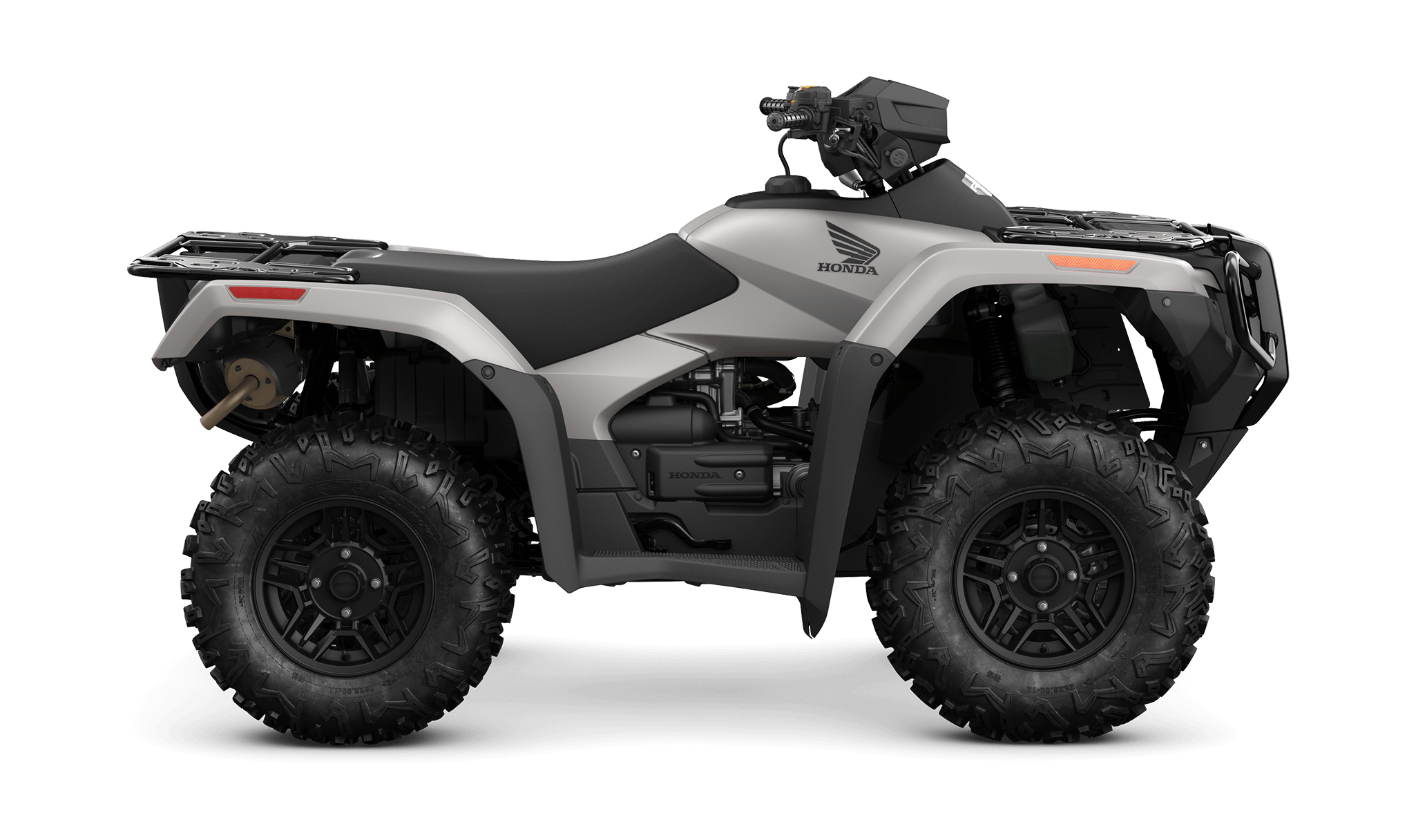

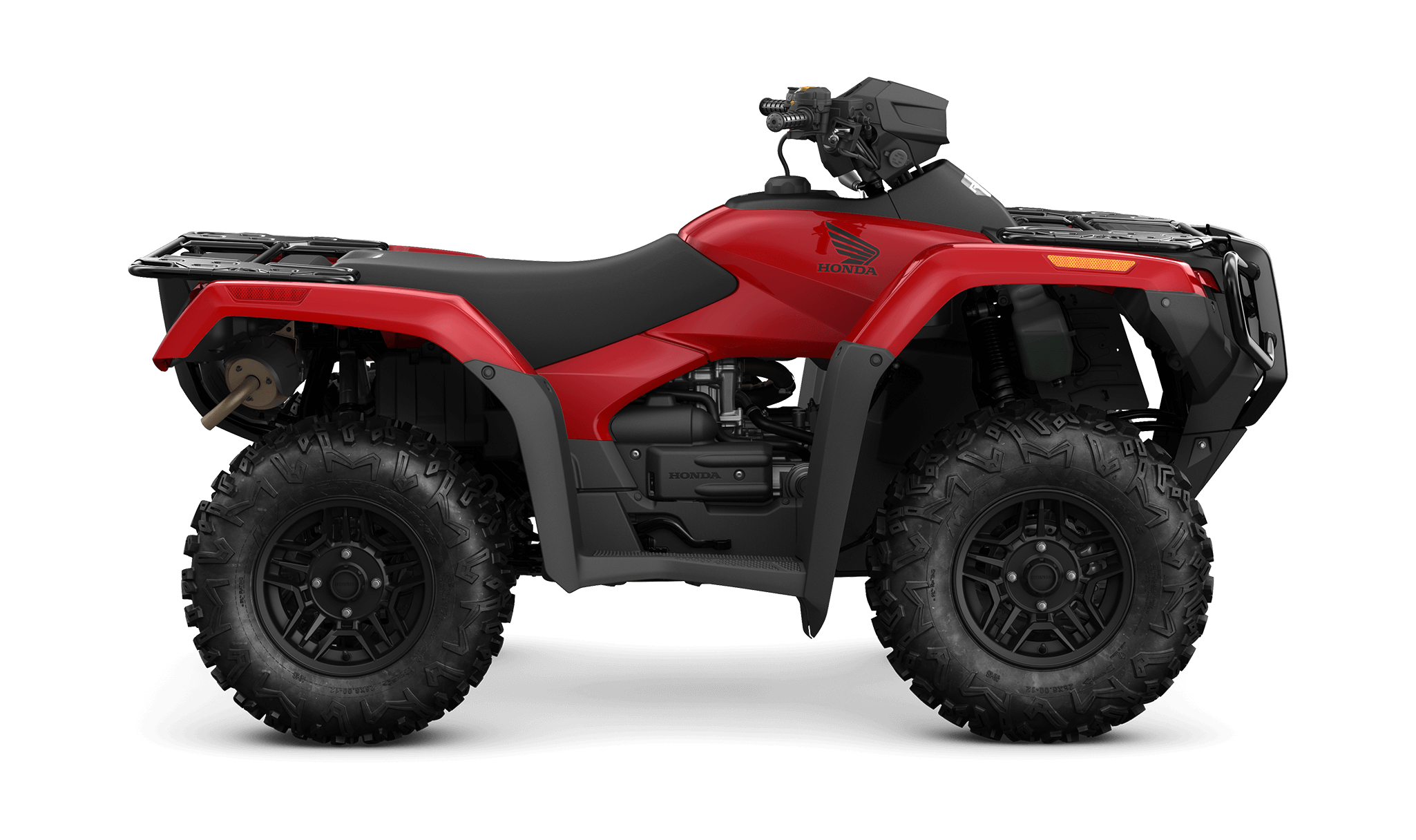

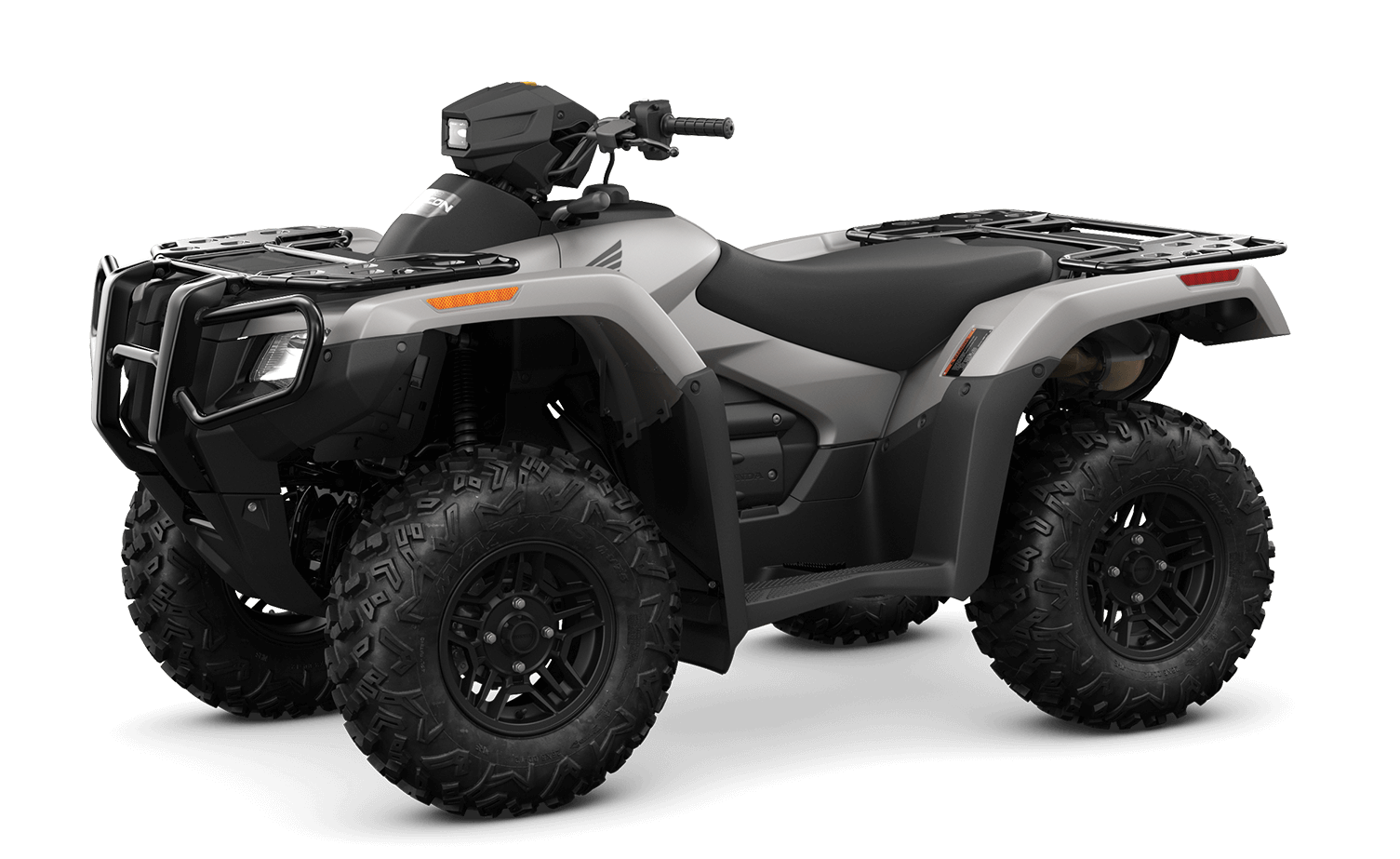

2024 Honda FOURTRAX RUBICON - 700 4x4
$9,999
ENGINE | |
---|---|
Engine Type | 675cc longitudinally mounted liquid-cooled single-cylinder four-stroke |
Bore x Stroke | 102.0mm x 82.6mm |
Compression Ratio | 9.2 to 1 |
Induction | Electronic fuel injection (PGM-FI); 40mm throttle body |
Starter | Electric with auxiliary recoil |
DRIVETRAIN | |
Transmission | Automatic with hydraulic torque converter; three forward gears, reverse, and electronic controls |
Driveline | Direct front and rear driveshafts with TraxLok® and locking front differential |
CHASSIS/SUSPENSION/BRAKES | |
Front Suspension | Independent double-wishbone; 6.9-inch travel |
Rear Suspension | Independent dual-arm; 8.0-inch travel |
Front Brakes | Dual 180mm discs |
Rear Brakes | Dual 170mm discs |
Front Tires | 26 x 8-12 |
Rear Tires | 26 x 10-12 |
DIMENSIONS | |
Overall L x W x H | 86.5 inches x 47.5 inches x 48.0 inches |
Wheelbase | 50.6 inches |
Seat Height | 34.8 inches |
Ground Clearance | 9.5 inches |
Curb Weight | 701 pounds (includes all standard equipment, required fluids and a full tank of fuel) |
Fuel Capacity | 4.4 gallons, including 1.2-gallon reserve |
Towing Capacity | 848 pounds |
Front Rack Capacity | 99 pounds |
Rear Rack Capacity | 187 pounds |
