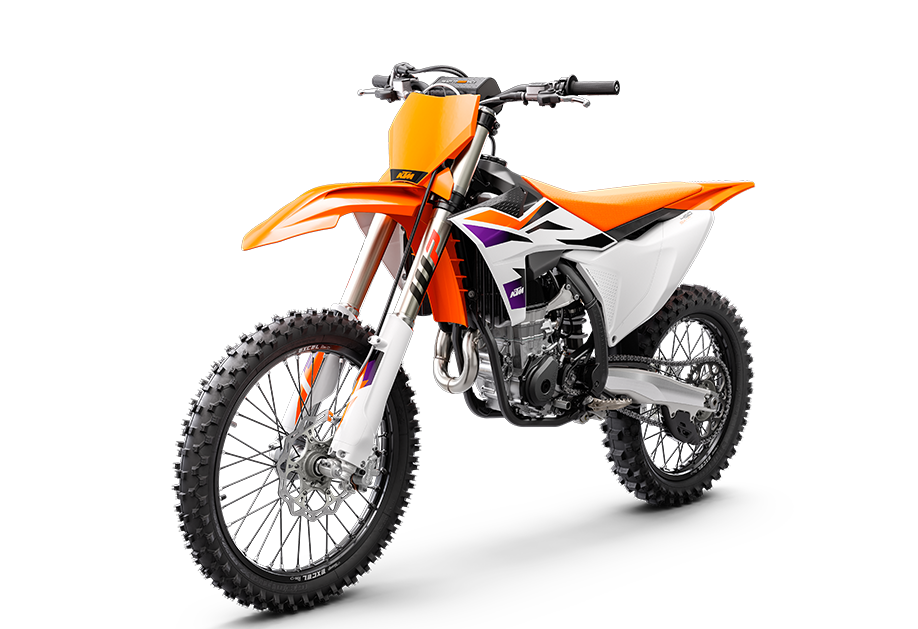

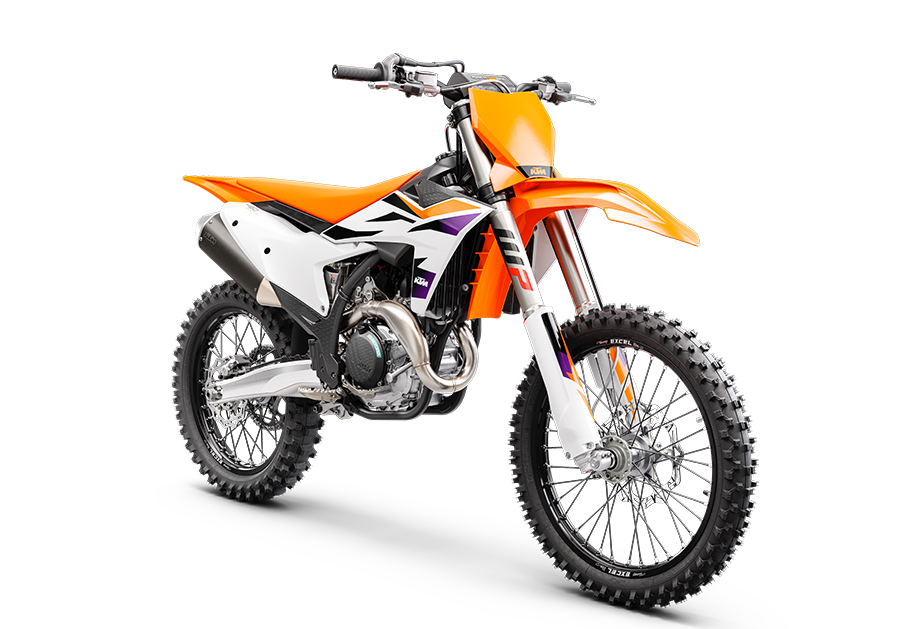

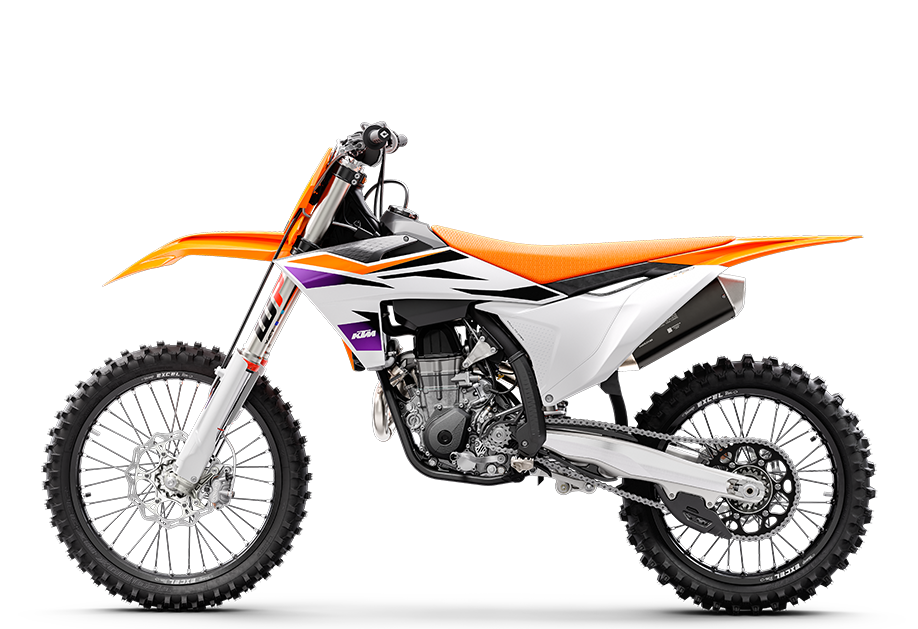

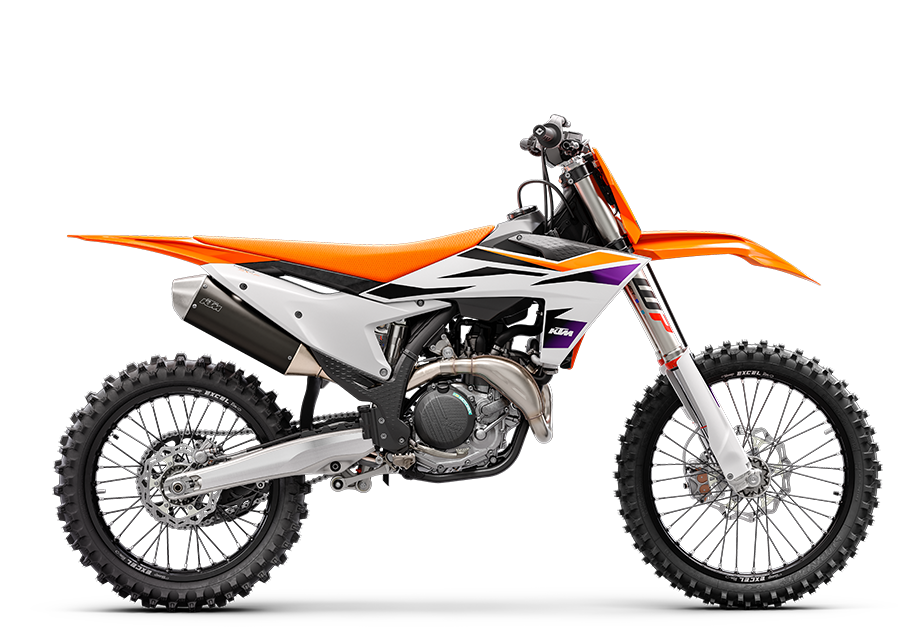

2024 KTM SX-F - 450

THE TOP OF THE FOODCHAIN.

THE TOP OF THE FOODCHAIN.

We aren't ones to brag, but with a trophy cabinet ready to rip at the seams, the KTM 450 SX-F is the epitome of a podium hunter. With 5 AMA 450 supercross titles in the last 7 seasons, the 2024 KTM 450 SX-F rolls into the pit already armed with the learnings of past championships. It's time to extend the trophy room.

EASY SUSPENSION ADJUSTMENT
Get dialed in! The 2024 KTM SX range boasts totally tool-free suspension setup at both ends. Thanks to the shock absorber design featuring hand-adjustable dual compression control, it allows riders to adjust high- and low-speed settings in a matter of seconds. On the front end, the forks are also easily adjusted thanks to a single air pressure preload valve, as well as through easy access click adjusters for compression and rebound. We'll even throw the air pump in as standard.

ABSOLUTE CONTROL
No matter how gnarly the track is, you'll find complete confidence thanks to the frame design that has not only been engineered for longitudinal rigidity but also repositions rotating mass closer to the center of gravity. The shock mounting also provides improved anti-squat behavior for better traction out of corners, while the footpeg mounting position has moved inwards for less risk of hooking up in deep ruts or when scrubbing jumps.

SELECTABLE MAPS PLS TC
The map select switch on the 2024 KTM SX models features a simpler design, allowing for easier functionality in switching between 2 engine maps. Map 1 provides a more linear power curve, while map 2 punches all-out with aggressive throttle and explosive power. Luckily, traction control is easy toggled to an on or off position from the same switch, ensuring maximum traction and a distinct advantage in wet or muddy conditions.

MASS CENTRALIZATION
Ready to rip your arms out of the sockets? Together with the benefits of mass centralization and the anti-squat behavior of the chassis, the 2024 KTM 450 SX-F gets its power down perfectly when tearing out of corners.

Advertised pricing excludes applicable taxes, title, and licensing and is subject to change without notice. The illustrated vehicles may vary in selected details from the production models and some illustrations feature optional equipment available at additional cost. All information concerning the scope of supply, appearance, services, dimensions, and weights is non-binding and specified with the proviso that errors, for instance in printing, setting, and/or typing, may occur; such information is subject to change without notice. The consumption values stated refer to the roadworthy series condition of the vehicles at the time of factory delivery.

ENGINE
Transmission 5-speed
Starter Electric starter
Stroke 63.4 mm
Bore 95 mm
Clutch Wet, DDS multi-disc clutch, Brembo hydraulics
Displacement 449.9 cm³
EMS Keihin EMS
Design 1-cylinder, 4-stroke engine
CHASSIS
Weight (Without Fuel) 102.6 kg
Tank Capacity (Approx.) 7.5 l
Front Brake Disc Diameter 260 mm
Rear Brake Disc Diameter 220 mm
Front Brake Disc brake
Rear Brake Disc brake
Chain 5/8 x 1/4520, Non-sealed
Frame Design Central double-cradle-type 25CrMo4 steel
Front Suspension WP XACT-USD, Ø 48 mm
Ground Clearance 359 mm
Rear Suspension WP XACT Monoshock with linkage
Seat Height 958 mm
Steering Head Angle 63.9 °
Suspension Travel (Front) 310 mm
Suspension Travel (Rear) 300 mm
