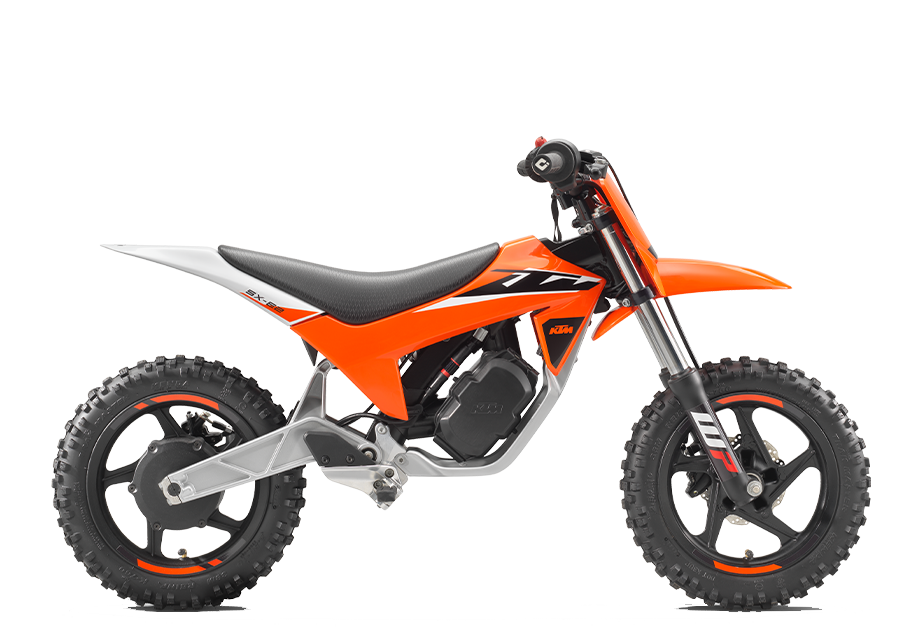

2024 KTM SX - E 2

BRIDGE CIRCUIT.

BRIDGE CIRCUIT.

Charged up and ready to hit the track, the all-new 2024 KTM SX-E 2 powers into the KTM electric-powered mini line-up with one clear objective - bridging the gap. Designed to slot in between the KTM 12eDrive stability cycle and the KTM SX-E 3 electric racer, it provides the ideal platform for the youngest riders to take the next step up.

MOTOR AND POWER
Providing the forward drive for the KTM SX-E 2 is a lightweight, maintenance-free 1,8 kW HUB Motor which delivers a maximum of 50 Nm. The "HUB-Motor-Concept" is void of additional parts like chains or sprockets, helping to keep the weight low and providing extra safety in the event of a crash. The controller is also integrated within the motor packaging, guaranteeing a spontaneous, but controllable power delivery.

GRAPHICS
Using the full-sized KTM SX range as a guideline, the 2024 KTM SX E-2 features modern, striking graphics in typical "big bike" fashion. The graphics are also applied using an in-mold process, ensuring the best durability and quality for many years of offroad action.

CHARGED UP
Providing the forward drive for the KTM SX-E 2 is a lightweight, maintenance-free 1,8 kW HUB Motor which delivers a maximum of 50 Nm. The "HUB-Motor-Concept" is void of additional parts like chains or sprockets, helping to keep the weight low and providing extra safety in the event of a crash. The controller is also integrated within the motor packaging, guaranteeing a spontaneous, but controllable power delivery.

Advertised pricing excludes applicable taxes, title, and licensing and is subject to change without notice. The illustrated vehicles may vary in selected details from the production models and some illustrations feature optional equipment available at additional cost. All information concerning the scope of supply, appearance, services, dimensions, and weights is non-binding and specified with the proviso that errors, for instance in printing, setting, and/or typing, may occur; such information is subject to change without notice. The consumption values stated refer to the roadworthy series condition of the vehicles at the time of factory delivery.

ENGINE
Rated Output 0.75 kW
Traction Battery Lithium-ion
Charger Line Voltage 110-230 V
Charging Power 500 W
Charging Time 100% 60 min.
Cooling Air Cooled
Electric Motor HUB motor
CHASSIS
Brake Disc Diameter 140 mm
Brakes Disc brake
Chain 1/2 x 3/16 in
Frame Design Center aluminum extrusion frame
Front Suspension Non-adjustable fork
Rear Suspension Mono shock
Seat Height 470/500 mm
Suspension Travel (Front) 90 mm
Suspension Travel (Rear) 70 mm
