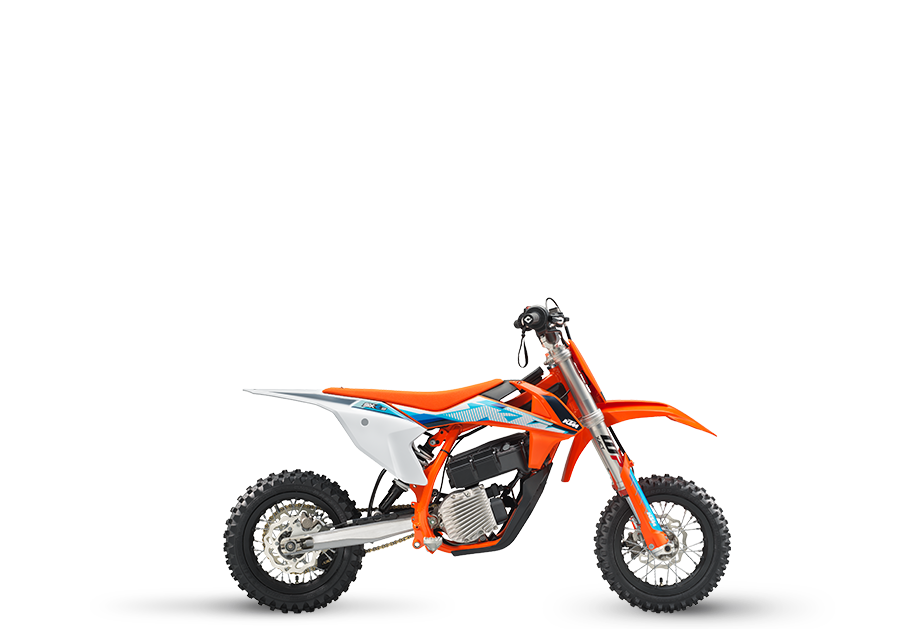

2024 KTM SX - E 3

ULTIMATE E-BEGINNER.

ULTIMATE E-BEGINNER.

Perfect for grass-roots level riders and just as green, the 2024 KTM SX-E 3 breaks ground at the leading edge of all-electric mini-cross. Aimed at absolute beginners, the KTM SX-E 3 slides into the range below the more powerful KTM SX-E 5 with an ever more user-friendly package. Lower power output, battery capacity, and smaller wheels make it the ideal choice for the youngest of riders finding their feet - and throttle.

ELECTRIC MOTOR
his fully electric, battery-powered air-cooled permanent magnet motor produces a healthy 3.9 kW, featuring an extremely compact and slim design that perfectly matches the KTM SX-E's smaller chassis. It's also dust and waterproof which makes it wear and maintenance-free, while the integrated control unit (ECU) guarantees a direct, but very controllable power delivery.

RIDE MODES
A multifunctional instrument display is located between the steering head and seat. Here, the user can select between the six different ride modes. Each mode offers different power characteristics suited for pure beginners all the way up to experienced racers. The instrument also displays the remaining charge of the battery.

SUSPENSION
Featuring advanced suspension technology, the KTM SX-E 3 is fitted with non-adjustable upside-down WP XACT 35mm forks. Class-leading in their own right, the forks provide exceptional damping and comfort characteristics allowing the rider to push their limit with complete confidence, while the 144 mm of wheel travel means the limit is a far way off indeed.

Advertised pricing excludes applicable taxes, title, and licensing and is subject to change without notice. The illustrated vehicles may vary in selected details from the production models and some illustrations feature optional equipment available at additional cost. All information concerning the scope of supply, appearance, services, dimensions, and weights is non-binding and specified with the proviso that errors, for instance in printing, setting, and/or typing, may occur; such information is subject to change without notice. The consumption values stated refer to the roadworthy series condition of the vehicles at the time of factory delivery.

ENGINE
Rated Output 2 kW / 3,200 rpm
Torque 10.5 Nm
Traction Battery Lithium-ion
Charger Line Voltage 80-240 V/50-60 Hz
Charging Power 900 W
Charging Time 100% 60 min.
Cooling Air Cooled
Electric Motor 48 V - BLDC motor with outer rotor
CHASSIS
Brake Disc Diameter 160 mm
Brakes Disc brake
Chain 1/2 x 3/16 in
Frame Design Chrome-molybdenum steel central-tube frame
Front Suspension XACT 35 WP Upside-Down fork, Ø 35 mm
Ground Clearance 152 mm
Rear Suspension WP monoshock
Seat Height 555/600 mm
Steering Head Angle 66 °
Suspension Travel (Front) 144 mm
Suspension Travel (Rear) 133 mm
