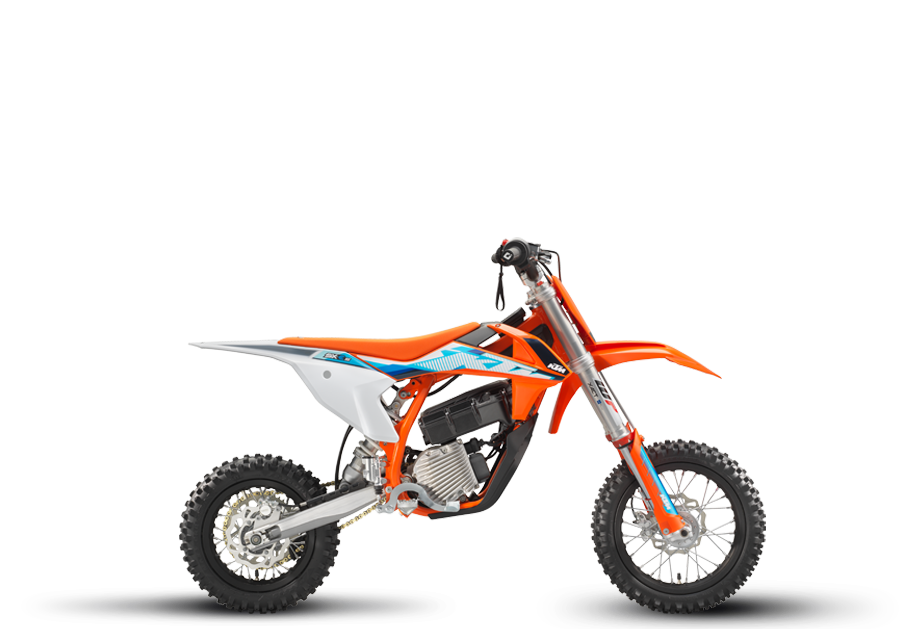

2024 KTM SX – E 5
LEADING THE CHARGE. The KTM SX-E 5 is an all-electric mini-crosser aimed at both beginner and competitive junior riders. With zero emissions and minimal soun…
LEADING THE CHARGE.
LEADING THE CHARGE.
The KTM SX-E 5 is an all-electric mini-crosser aimed at both beginner and competitive junior riders. With zero emissions and minimal sound pollution, it takes its place at the leading edge of competitive mini-cross, and provides a real-world READY TO RACE alternative to the petrol-powered 50 cc engine. Featuring high-quality components that make it significantly different from the many electric mini-cycles available on the market, the KTM SX-E 5 is a fully-fledged competition motorcycle, making it more accessible to younger riders for use in areas where noise emissions are restricted.
ELECTRIC MOTOR
This fully electric, battery-powered air-cooled permanent magnet motor produces a healthy 3.9 kW, featuring an extremely compact and slim design that perfectly matches the KTM SX-E' 5s smaller chassis. It's also dust and waterproof which makes it wear and maintenance-free, while the integrated control unit (ECU) guarantees a direct, but very controllable power delivery.
RIDE MODES
A multifunctional instrument display is located between the steering head and seat. Here, the user can select between the six different ride modes. Each mode offers different power characteristics suited for pure beginners all the way up to experienced racers. The instrument also displays the remaining charge of the battery.
SUSPENSION
The KTM SX-E 5 features a modern, fully adjustable WP XACT air fork, with outstanding comfort, damping characteristics and directional stability. The 35 mm upside-down front fork has 205 mm of travel and thanks to the air spring fitted in the left fork leg, can be adjusted to perfectly suit the rider's weight using a simple air pump.
Advertised pricing excludes applicable taxes, title, and licensing and is subject to change without notice. The illustrated vehicles may vary in selected details from the production models and some illustrations feature optional equipment available at additional cost. All information concerning the scope of supply, appearance, services, dimensions, and weights is non-binding and specified with the proviso that errors, for instance in printing, setting, and/or typing, may occur; such information is subject to change without notice. The consumption values stated refer to the roadworthy series condition of the vehicles at the time of factory delivery.
| ENGINE | |
|---|---|
| Rated Output | 2 kW / 3,200 rpm |
| Torque | 13.8 Nm |
| Traction Battery | Lithium-Ion KTM PowerPack |
| Battery Capacity | 21 Ah |
| Charger Line Voltage | 80-240 V/50-60 Hz |
| Charging Power | 900 W |
| Charging Time 100% | 70 min. |
| Cooling | Air Cooled |
| Energy Content | 0.907 kWh |
| Electric Motor | 48 V - BLDC motor with outer rotor |
| Max Power | 5 kW / 3,900 rpm |
| CHASSIS | |
| Brake Disc Diameter | 160 mm |
| Brakes | Disc brake |
| Chain | 1/2 x 3/16 |
| Frame Design | Central-tube frame with double-cradle |
| Front Suspension | XACT 35 WP Upside-Down fork, Ø 35 mm |
| Ground Clearance | 252 mm |
| Rear Suspension | WP Xplor PDS shock absorber |
| Seat Height | 665 mm |
| Steering Head Angle | 66 ° |
| Suspension Travel (Front) | 205 mm |
| Suspension Travel (Rear) | 185 mm |
