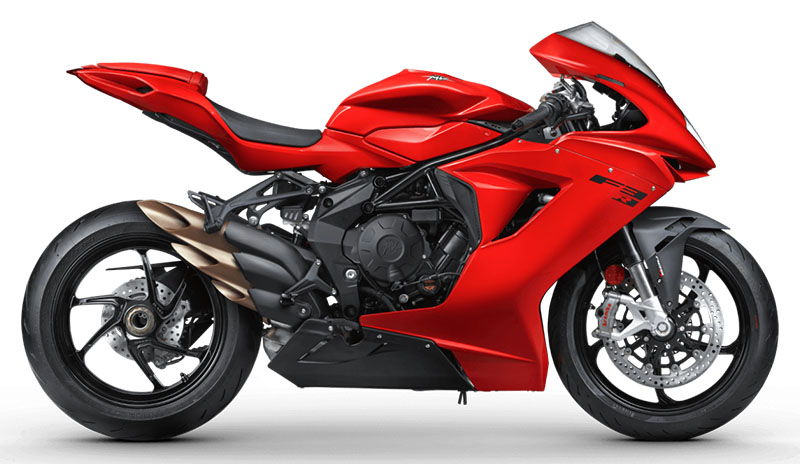

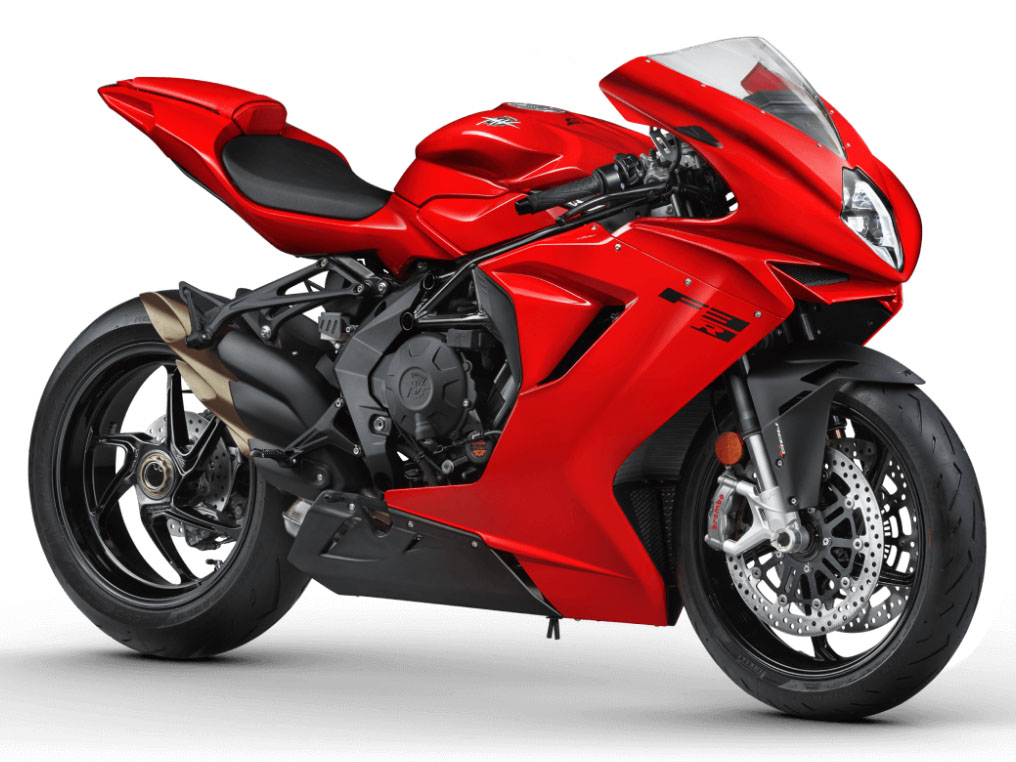

2024 MV Agusta F3 – R
EXTREME RED. MV Agusta is all about speed, performance, avant-garde racing technology and uncompromising engineering perfection allied to the most seducing,…
EXTREME RED.
EXTREME RED.
MV Agusta is all about speed, performance, avant-garde racing technology and uncompromising engineering perfection allied to the most seducing, mesmerising design. An MV Agusta motorcycle is a lifestyle statement and a true piece of motorcycle art.
Pure in its simplicity, the F3 is even more exciting, safe and appealing. The aristocracy of speed. The R takes all the characteristics of the F3 to an extreme, with lines designed for performance and projected into the future. Style and performance find their ultimate expression in the contrast between the red fairing and all black components.
RACING SPIRIT
The lightweight, compact and powerful in-line three-cylinder engine delivering 147 hp at 13,000 rpm is painted totally black, just like the spoked wheels. The red fairing is an anthem to the aerodynamic efficiency and racing vocation of the F3 R.
FUNCTIONAL ELEGANCE
The F3 marries typical MV style, which makes it unique and totally original, with the tangibility of a high-tech project. The air ducts, for example, help optimize engine cooling as well as the rider's thermal comfort.
PURE MV AGUSTA SOUND
At the heart of the F3 project is the in-line three-cylinder engine, a unique example of race-derived technology that is easy to manage, on both road and track. The extreme versatility of the engine, rich in torque at all speeds, is one of the secrets of this unit complete with counter-rotating crankshaft and removable gearbox. The intake and exhaust valves are in titanium.
INCREASINGLY ADVANCED
The electronics continue to evolve with refinement of the traction and wheelie controls, the definition of increasingly accurate engine mapping, and optimized fuel management across the entire delivery curve. The MV EAS 3.0 electronic quick shift is perfected in terms of the gears and is now even faster.
COLOR OPTION:
• Rosso Ago
The illustrated vehicles may vary in selected details from the production models and some illustrations feature optional equipment available at additional cost. Such information is subject to change without notice. Please note that model specifications and pricing may vary. See dealer for details.
| ENGINE | |
|---|---|
| Engine Type | 4 stroke, 12 valves Timing system - D.O.H.C with mechanical chain tensioner and DLC tappet |
| Displacement | 798 cc (48.68 cu. in.) |
| Bore x Stroke | 3.1 in. x 2.1 in. (79 mm x 54.3 mm) |
| Cooling | Separated liquid and oil radiators |
| Compression Ratio | 13.3 to 1 |
| Fuel System | Engine management system - Integrated ignition - injection system MVICS 2.1 (Motor & Vehicle Integrated Control System) with six injectors. Engine control unit Eldor Nemo 2.1, throttle body bore 50 mm diameters full ride by wire Mikuni, pencil-coil with ion- sensing technology, control of detonation and misfire. Torque control with four maps. Traction Control with eight levels of intervention |
| Ignition | Electric |
| DRIVETRAIN | |
| Transmission | Cassette style; six speed, constant mesh |
| Final Drive | 17/43 Ratio |
| CHASSIS | |
| Front Suspension | Marzocchi UPSIDE DOWN aluminum telescopic hydraulic fork with DLC treatment, with anodized fork legs and having rebound-compression damping and spring preload external and separate adjustment |
| Rear Suspension | Progressive Sachs, single shock absorber with rebound and compression damping and spring preload adjustment |
| Front Brakes | Double floating disc with Ø 320 mm (Ø 12.6 in.) diameter, with steel braking disc and flange |
| Rear Brakes | Single steel disc with Ø 220 mm (Ø 8.66 in.) dia. |
| Front Tire | 120/70 - ZR 17 M/C (58 W) |
| Rear Tire | 180/55 - ZR 17 M/C (73 W) |
| DIMENSIONS | |
| Overall L x W | 79.92 in. (2,030 mm) x 28.74 in. (730 mm) |
| Wheelbase | 54.33 in. (1,380 mm) |
| Seat Height | 32.68 in. (830 mm) |
| Ground Clearance | Min. - 4.72 in. (120 mm) |
| Fuel Capacity | 4.36 gal. (16.5 L) |
| Dry Weight | 424.39 lb. (192.5 kg) |
