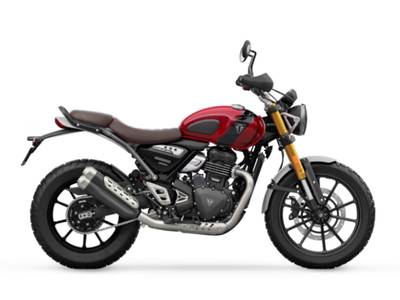

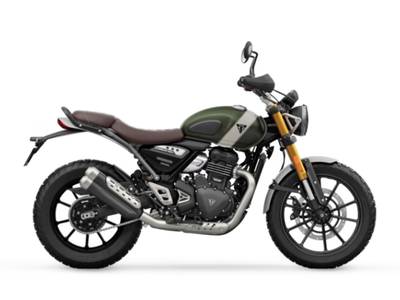

2024 Triumph SCRAMBLER - 400 X
$5,595
ENGINE & TRANSMISSION | |
---|---|
Type | Liquid-cooled, 4 valve, DOHC, single-cylinder |
Capacity | 398.15 cc |
Bore x Stroke | 89 x 64 |
Compression | 12.1 to 1 |
Max Power EC | 39.5 HP (40PS) @ 8,000 RPM |
Max Torque EC | 27.7 ft lb @ 6,500 rpm |
System | Bosch electronic fuel injection with electronic throttle control |
Exhaust | Stainless twin-skin header system with stainless steel silencer |
Final Drive | X-ring chain |
Clutch | Wet, multi-plate, slip |
Gearbox | 6-speed |
CHASSIS | |
Frame | Hybrid spine/perimeter, tubular steel, bolt-on rear subframe |
Swingarm | Twin sided cast aluminum alloy |
Front Wheel | Cast aluminum alloy 10 spoke, 19 x 2.5 in |
Rear Wheel | Cast aluminum alloy 10 spoke, 17 x 3.5 in |
Front Tire | 100/90-19 |
Rear Tire | 140/80-17 |
Front Suspension | 43mm upside down Big Piston forks. 150mm wheel travel |
Rear Suspension | Gas monoshock RSU with external reservoir and pre-load adjustment. 130mm wheel travel |
Front Brakes | 320mm fixed disc, four-piston radial caliper, ABS |
Rear Brakes | 230mm fixed disc, ByBreTM single piston floating caliper, ABS |
DIMENSIONS | |
Width Handlebars | 35.47 in (901 mm) |
Wheelbase | 55.83 in (1418 mm) |
Rake | 23.2 º/4.25 in (108 mm) |
Tank Capacity | 3.43 US gal (13 litres) |
Wet Weight | 395 lb (179kg) |
