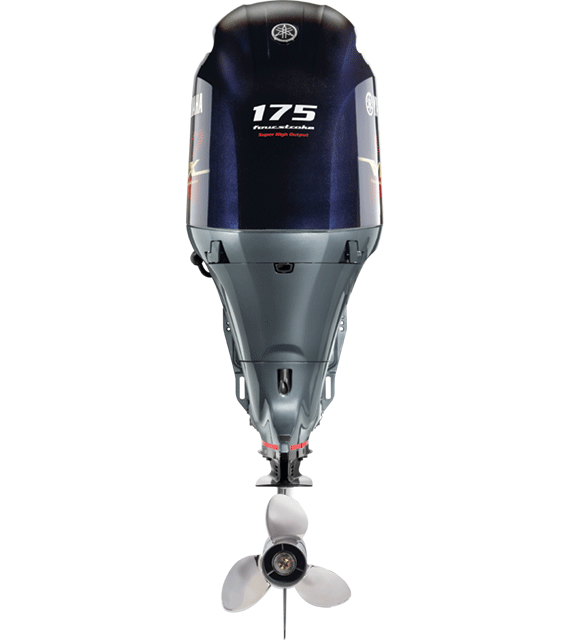

2024 Yamaha Marine MAX SHO® - VF175

PERFECT, NO MATTER WHAT TYPE OF FISHING YOU LOVE.

PERFECT, NO MATTER WHAT TYPE OF FISHING YOU LOVE.

You live for the weekends. The boat's hitched, the gear is loaded and you know exactly where you're headed to fish. Whether there are snook and redfish, bass or walleye on the agenda, the In-Line Four V MAX SHO® is game. Available in 175, 150, 115 and 90 horsepower, this powerful In-Line Four series sports a sleek, new V6 V MAX SHO®-inspired cowling design for 2024. It also offers a surprising tech package for maximum efficiency and high performance, and the option of a 25-inch shaft for deeper waters. This makes the I-4 V MAX SHOs perfect, no matter what kind of fishing you love.

HIGHLIGHTS:
• 2.8-liter high-output four cylinder
• 480 lbs. dry weight
• Shaft lengths available: 20" and 25"
• 50 amps of charging power
• New tilt stop lever
• Optional Variable Trolling RPM via gauge

Lean and mean, the In-Line Four V MAX SHO® 175 delivers exhilarating hole shot and class-leading top speed. It clocked in at 62 mph with a tournament load--up to five mph faster than its VF150 sibling.

WARRANTY:
• Limited 3-Year Pleasure
• 3-Year Government
• 1-Year Commercial

Pricing and specifications are subject to change without notice. See dealer for details. © 2024 Yamaha Motor Corporation, U.S.A. All rights reserved. Remember to always observe all applicable boating laws. Never drink and drive. Dress properly with a USCG-approved personal flotation device and protective gear.

POWER
Engine Type 175 hp Inline 4
Displacement 2.8L
Bore x Stroke 96 x 96.2mm (3.78 x 3.79in)
Prop Shaft Horsepower 175 hp at 5500 rpm
Full Throttle RPM Range 5000 ~ 6000 rpm
Alternator Output at W.O.T. 50 Amp
Ignition TCI Microcomputer
DIMENSIONS
Weight 218 kg (480 lbs) - 222 kg (489 lbs)
Shaft Length 20 - 25 in.
Degree of Tilt 70°
Degree of Trim -4° through +16°
Steering Angle (maximum) 32° from center, either direction
