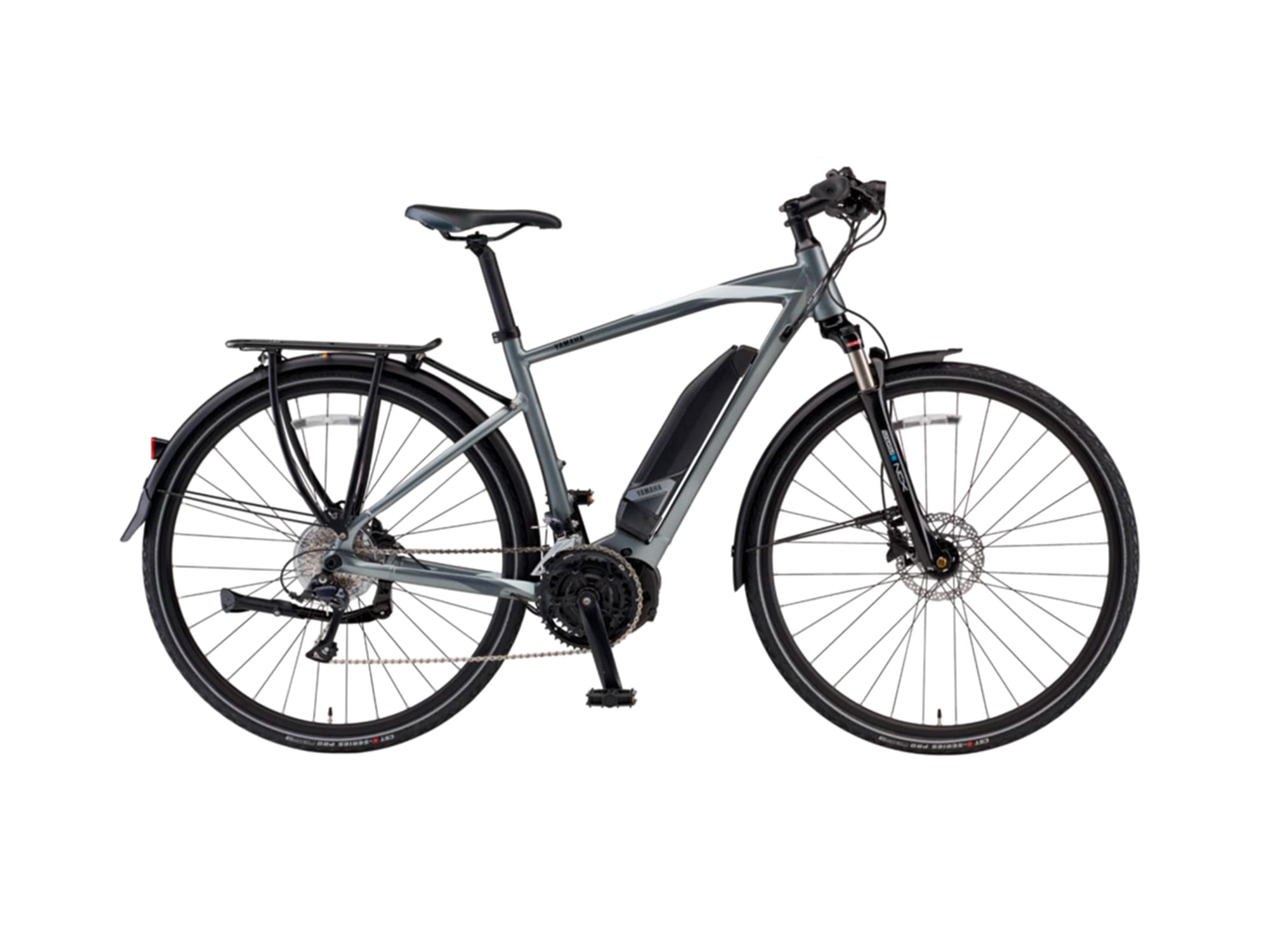

2024 Yamaha Crossconnect - Large

$2,999

A LIFESTYLE CHANGE.

A LIFESTYLE CHANGE.

Only 3 miles to the store, but somehow driving always takes 30 minutes. Redefine routine. Take the eBike! Rip down to the store! Load up the rear-rack and enjoy your new viewpoint behind bars. Pavement or bike path, explore your way.

Suggested Use - Road and City

LED HEADLIGHT
CrossConnect is equipped with a powerful LED headlight to help brighten your path. The headlight’s on/off button is built into CrossConnect’s multi-function display housing for easy access while riding.

MULTI_FUNCTION DISPLAY
The main LCD interface allows you to choose from a full suite of functions; Speedometer, average speed, maximum speed, odometer, trip meter, battery capacity, battery range, cadence, clock, and stopwatch.

HYDRAULIC DISC BRAKES
Shimano M315 hydraulic disc brakes with 160mm rotors provide confident stopping power in all conditions.

YAMAHA BATTERY
Yamaha’s 500 Watt-hour Lithium-ion battery pack provides reliable & long-lasting energy to power your rides.

SIDE STAND
CrossConnect is loaded with features, so we didn’t forget the little things like the convenience of an integrated side stand.

REAR RACK AND FENDER
CrossConnect’s rear rack with integrated LED taillight can handle up to 55 lbs. of secured cargo. And the rear fender will help keep you and that cargo looking clean.

HEAD TUBE ANGLE: 71°
SEAT POST LENGTH: 350 mm

COLOR OPTION:
• Crimson
• Indigo

WARRANTY:
• 3-Year on Frame, Motor, Battery
• Component Manufacturer's warranty is supported by Yamaha

Manufacturer's Suggested Retail Price (MSRP) shown. See dealer for details. Specifications are subject to change without notice. This overview contains many of Yamaha's valuable trademarks. It may also contain trademarks belonging to other companies. Any references to other companies or their products are for identification purposes only and are not intended to be an endorsement. © 2024 Yamaha Motor Corporation, U.S.A. All rights reserved.

BRAKES / WHEELS / TIRES
Brakes Shimano M315 Hydraulic Disc
Brake Rotors 160mm Front
Spokes SUS304
Rims 700c. Dual channel welded pin rim Eyelet spoke holes
Front Tires CST E-SERIES PRO 28 x 1 5/8 x 1 3/8(700 x 35c) Level-6 Flat Protection Reflective Sidewall
Rear Tires CST E-SERIES PRO 28 x 1 5/8 x 1 3/8(700 x 35c) Level-6 Flat Protection Reflective Sidewall
DIMENSIONS
Length Top tube - 580 mm, Reach - 391 mm, Head tube - 125 mm
Height Stack - 618 mm, Stand over - 797 mm
ELECTRICAL
Motor PWSeries SE Center mount Square taper spindle
Motor Weight 7.71 lb
Battery Yamaha 500Wh with Charge-life indicator and Self-diagnosis display
Battery Weight 6.61 lb.
Max Cadence support 120 rpm
Watts Rated power - 250 W (nominal), 500 W (max)
Volts 36 V
Max Torque 70 Nm
Charge Time 4-hours
OPERATIONAL
Max. Speed Support - 20 mph
