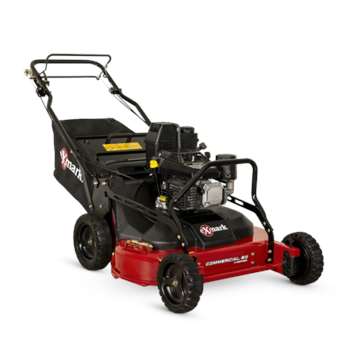

2024 eXMark Commerical X-Series - 30 Kohler® CV200

GET MORE DONE.

GET MORE DONE.

When designing and building our commercial walk-behind mowers, we did our homework. We packed more technology and performance into each mower. Our walk-behind mowers deliver precision lawn trimming with versatile handling and reliable quality. With self-propelled drive systems, these are the no-need-to-push lawnmowers that let you get through your day faster and with less effort. The efficient blade design allows them to cut more quickly while making them highly durable and easy to maintain. Whether you need a mower for commercial use or your own lawn care needs, Exmark has walk-behind mowers engineered for speed, efficiency, and long-lasting performance.

Do you want the portability and versatility of a 30-inch deck width in your next commercial walk-behind mower? Look no further than the Exmark Commercial 30-inch X-Series. Travel at variable speeds between 0 and 3.8 mph thanks to a powerful Kawasaki engine. Produce precise turf length with Exmark's patented height adjustment system. Tackle any project with fewer breaks with a one-gallon fuel tank.

Mower Deck Width:
• 30"

INCREASED POWER
The Commercial 30 X-Series is equipped with a single-cylinder commercial engine. The increased displacement of the powerful commercial engine gives it more torque than competing engines to quickly power through the toughest, thickest grass.

UPGRADED TRANSMISSION
The heavy-duty wet clutch transmission and self-tensioning belt drive are designed for minimum maintenance and maximum reliability in the most demanding commercial applications. The Commercial 30 X-Series also includes a parking brake.

INCREASED WHEEL TORQUE
The upgraded heavy-duty transmission takes advantage of the engine's additional power. It delivers increased wheel torque to power up hills, with easier tracking on side hills. The positive drive design couples both drive wheels for maximum traction in all conditions.

Pricing and specifications are subject to change without notice. See dealer for details.

POWER COMPONENTS
Engine Brand Kohler®
Transmission Speeds Infinitely Variable
Engine Model CV200
Engine Displacement 200
Engine Series Command Pro
Fuel System Carbureted
Speed 0.0 mph to 3.8 mph (6.1 kmph) forward.
DECKS
Deck Style Fixed Deck
Width / Cutting Deck 30 inch
Cutting Heights 1.5 in (3.8 cm) to 5.0 in (12.7 cm) in 0.5 in (1.3 cm) increments.
Blade Tip Speed Approximately 18,500 fpm.
Blades 2 Blades at 15.4 in Length
DIMENSIONS
Width 31.9 in. (81cm)
Height 38.3 in. (97.2 cm)
Length 68 in. (172.7 cm)
Curb Weight 185 lbs
Fuel Capacity 1 gallon (3.8-L).
