2024 eXMark Vertex S-Series - 60 Kohler® ECV740

THE RIGHT CHOICE.

THE RIGHT CHOICE.

You know that if something is worth doing, it's worth doing right. At Exmark, we share that commitment. To doing it right, even in the unrelenting heat and humidity of summer's peak. At Exmark, we're building more than just mowers. We're delivering a complete ownership experience from end-to-end because owning a commercial mower is about more than just cutting grass. It's a relationship that needs to benefit everyone involved.

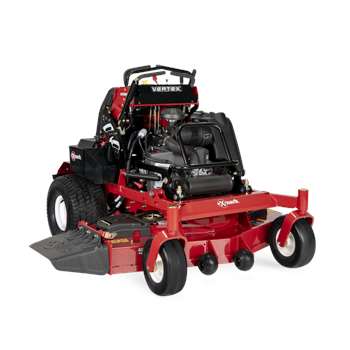

The all-new Vertex stand-on zero-turn mower is ready to take your productivity and profitability to the next level. With a design that centralizes mass low in the mower chassis, Vertex is ultra-maneuverable, yet stable and easy to control. The control panel is ergonomically designed and centrally located to improve operator comfort. Exmark's proven hydro drive system delivers ground speeds of up to 8.5mph, enabling Vertex to quickly finish large jobs. Built with a Kawasaki V-Twin or Kohler EFI engine to increase fuel efficiency so you can stay out in the field longer. Choose from 48-, 52-, or 60-inch UltraCut Series 4 side-discharge cutting decks, featuring easy rake adjustment and anti-scalp rollers, for an Exmark signature finish cut quality every time.

Mower Deck Widths:
• 48"
• 52"
• 60"

SIMPLE DESIGN
Operating a Vertex mower is easy, thanks to the simple, ergonomic design. Key, choke, throttle, height of cut adjustment...they're all right there. Hop on, and you're ready to go.

CUT QUALITY
All models are equipped with Exmark UltraCut Series 4 side-discharge cutting decks. The decks feature flow-control baffles, anti-scalp rollers, and a rod-style floating deck design for easy deck rake adjustments. The result is a signature cut quality on any turf type.

EASE OF SERVICE
These units are easy to service thanks to the tools-free access to the engine and hydro drive components. The reliable single-belt drive system is simple and easy to maintain, and Exmark's patented spherical idler bearings require only annual lubrication.

Pricing and specifications are subject to change without notice. See dealer for details.

POWER COMPONENTS
Engine Brand Kohler®
Engine Model ECV740
Engine Displacement 747
Engine Series Command™ EFI
Engine Speed 3,750 rpm
Speed Infinitely variable speed selection 0-8.5 mph (x.x kmph) forward, 0-x.x mph (x.x kmph) reverse
DECKS
Deck Style Floating Deck
Width / Cutting Deck 60 inch
Cutting Heights 1.5 in (3.8 cm) to 5.0 in (12.7cm) in 0.25 in (0.64 cm) increments adjustable from operator's platform.
Blade Tip Speed Approximately 18,500 fpm.
Blades 3 Blades at 20.50 in Length
DIMENSIONS
Width 72.9 in.
Height 49.2 in.
Length 68.2 in.
Curb Weight 1,026 lbs
Fuel Capacity 8-gallon (xx.x-L), single fuel tank on LH side.
