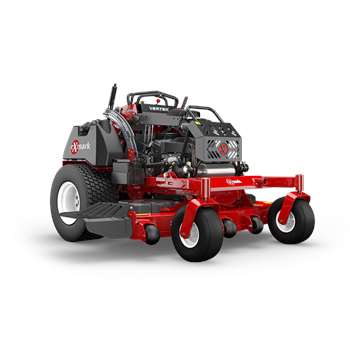

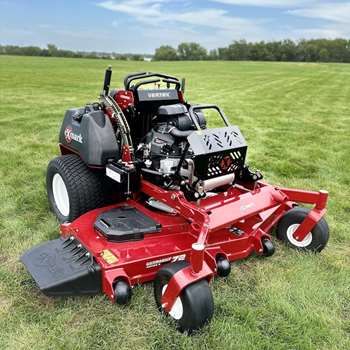

2024 eXMark Vertex X-Series - 72 Kawasaki® FX1000V

THE RIGHT CHOICE. - Copy

THE RIGHT CHOICE.

You know that if something is worth doing, it's worth doing right. At Exmark, we share that commitment. To doing it right, even in the unrelenting heat and humidity of summer's peak. At Exmark, we're building more than just mowers. We're delivering a complete ownership experience from end-to-end because owning a commercial mower is about more than just cutting grass. It's a relationship that needs to benefit everyone involved.

Designed to raise the bar for stand-on mower performance and productivity, Vertex X-Series uses the same formed and welded tubular steel frame and heavy-duty 15-inch casters as our premier Lazer Z zero-turn riding mowers. With carbureted Kawasaki FX1000 engines, you'll have the power to finish jobs faster, with a better quality of cut thanks to our unmatched UltraCut cutting decks. One look and it's easy to see why the Vertex X-Series is the next generation of stand-on mowers.

Mower Deck Widths:
• 52"
• 60"
• 72"

WIDE, STABLE DESIGN
The Vertex X-Series is designed with a wide stance for increased stability. Large 24-inch drive tires provide increased traction and ride quality, with reduced turf compaction. Heavy-duty 15-inch casters with semi-pneumatic caster tires deliver unmatched stability and durability.

PRO PRODUCTIVITY
When equipped with the 72-inch UltraCut Series 6 cutting deck, Vertex X-Series can cut more than seven acres per hour, with Exmark's signature quality of cut. Adjust cut height quickly and easily from 1.5- to 5.0-inches with the single-point height of cut adjustment system. And with 14-gallons of fuel capacity, Vertex X-Series delivers maximum runtime between fill-ups.

EASE OF SERVICE
We engineered Vertex X-Series to run all season without maintenance, virtually eliminating productivity killing in-season downtime. And when it's time for maintenance, we've made it easy to do with features including a magnetic operator pad that's removable without tools, and an open architecture that enables easy access to the engine and hydro drive system.

Pricing and specifications are subject to change without notice. See dealer for details.

POWER COMPONENTS
Engine Brand Kawasaki®
Engine Model FX1000V
Engine Displacement 999
Engine Series V-Twin
Engine Speed 3,600 rpm
Speed Infinitely variable speed selection 0-12.0 mph (19.3 kmph) forward, 0-5.0 mph (8.0 kmph) reverse
DECKS
Deck Style Floating Deck
Width / Cutting Deck 72 inch
Cutting Heights 1.5 in (3.8 cm) to 5.0 in (12.7cm) in 0.25 in (0.64 cm) increments adjustable from operator's platform.
Blade Tip Speed Approximately 18,500 fpm.
Blades 3 Blades at 24.50 in Length
DIMENSIONS
Width 84.8 in.
Height 48.7 in.
Length 77.1 in.
Curb Weight 1,400 lbs
Fuel Capacity 14-gallon (53.0-L), Dual fuel tanks on RH and LH side.
